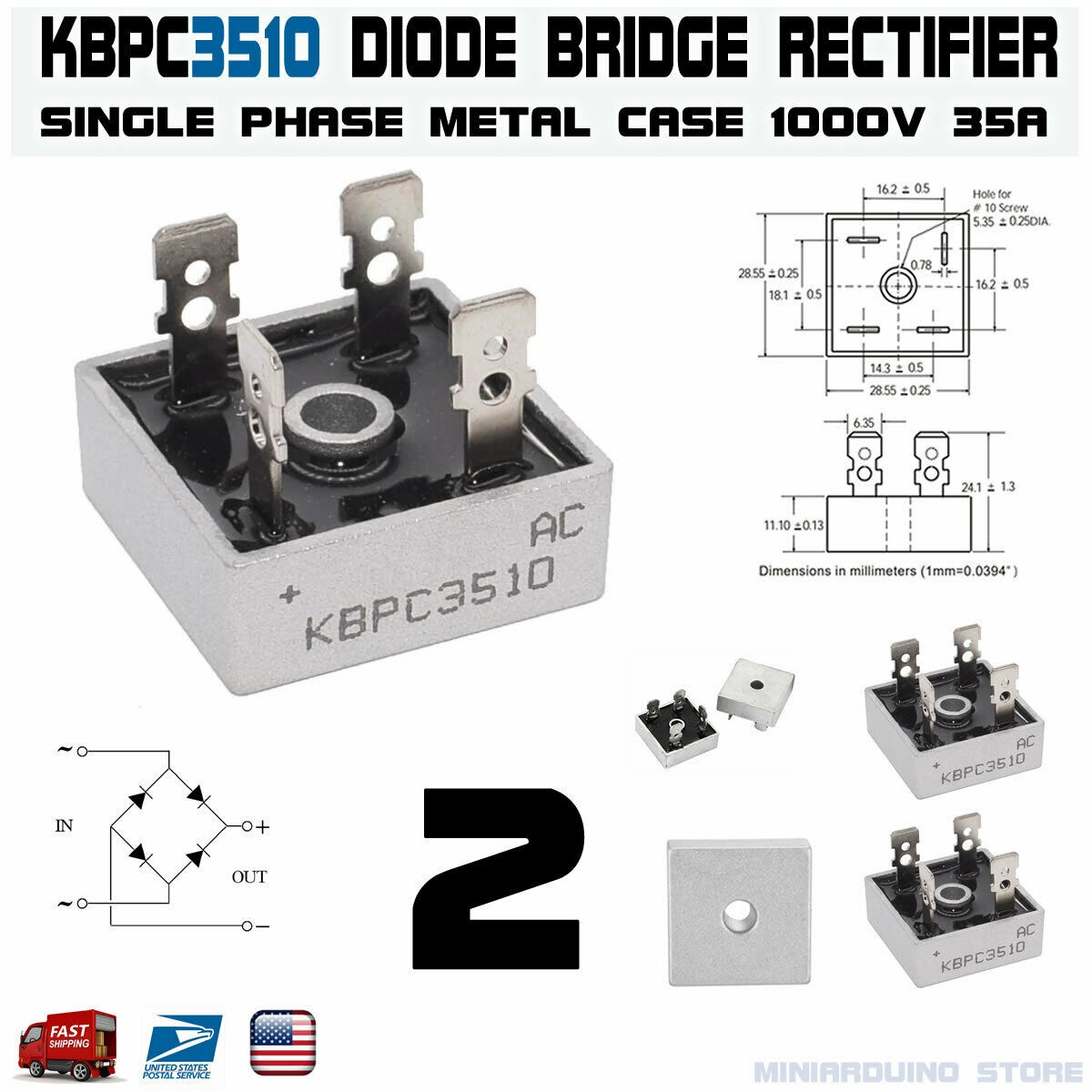

2pcs KBPC3510 Diode Bridge Rectifier Single Phase Metal Case 1000V 35A KBPC-3510:
$8.90
Specifications:
Product name: KBPC-3510 bridge rectifier
Applications: Common industrial applications
Power characteristic: High-power
Frequency characteristic: SHF
Efficiency: 100%
Output Current(DC):35A(Max)
Peak Current:5mA
Repetitive Peak Reverse Voltage(AC):1000V
Phase:Single Phase
Terminals : 4
Material:Resin, Metal
Fixing hole diameter: Approx. 0.22 inch/5.6mm
Size: Approx. 1.1 x 1.1 x 0.83 inch/28 x 28 x 21mm
Operating temperature range: -55~+150cºPackage Includes:
2 x KBPC3510 Diode Bridge Rectifier Single Phase Metal Case 1000V 35A
2Pcs KBPC3510 Bridge Rectifier Diode35A 1000V Single Phase Full Wave 35 Amp 100
$14.50
2pcs KBPC3510 Diode Bridge Rectifier Single Phase Metal Case 1000V 35A KBPC-3510
$8.90
(2pcs) KBPC3510 Bridge Rectifier Diodes 35A 1000V Wave Electronic Silicon Diode
$35.99
