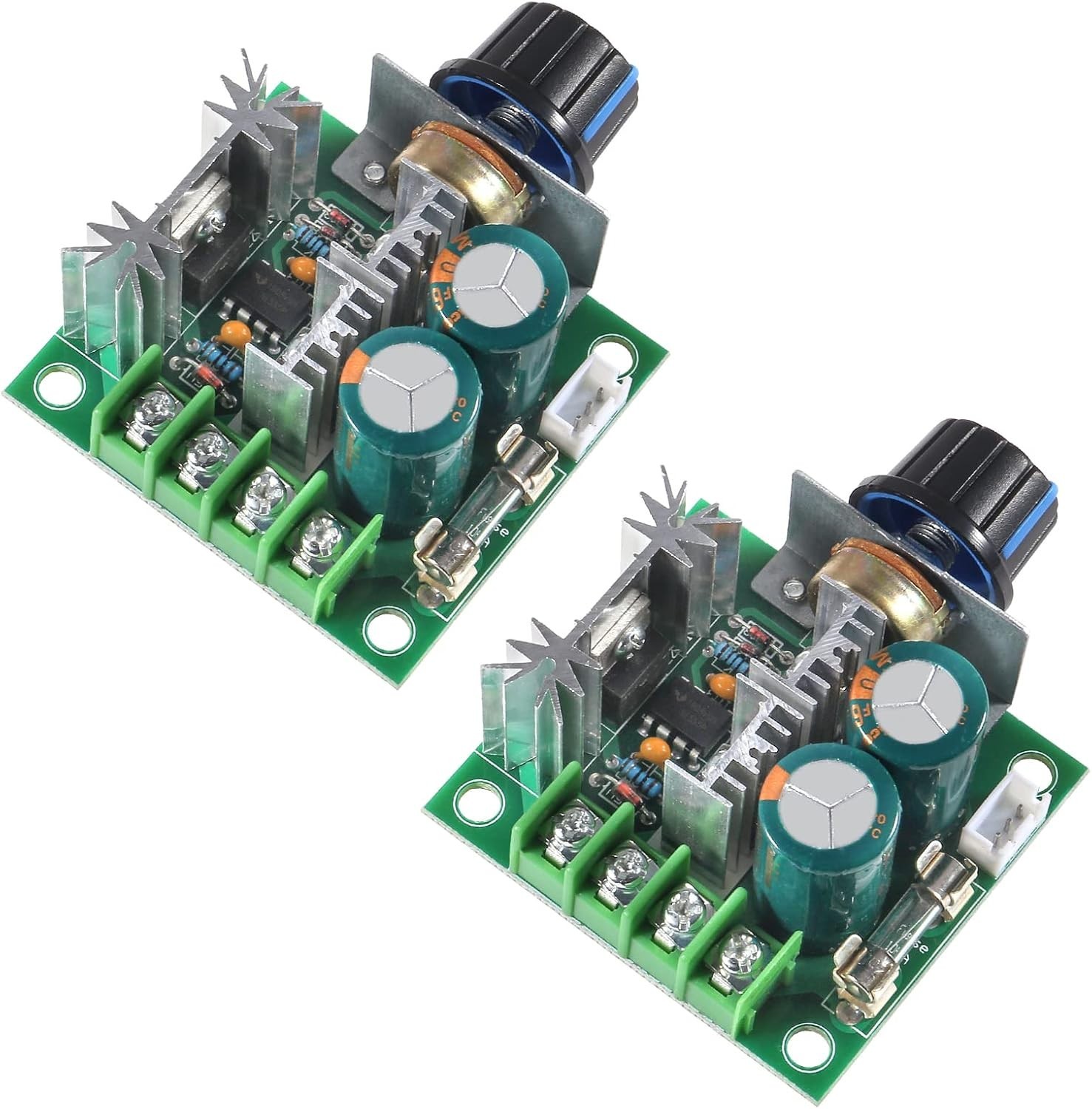

2Pcs 12V-40V 10A PWM DC Motor Speed Control Switch Controller Voltage Regulator:
$11.40

2Pcs 12V-40V 10A PWM DC Motor Speed Control Switch Controller Voltage Regulator Dimmer with Speed Control Knob Weight4.2 ouncesProduct Dimensions2.36 x 2.16 x 0.72 inchesMaterialcopper

10A Speed Controller Motor: Working Voltage: DC 12V-40V;Max Current: 10A;PWM Frequency: 13KHz
Protections: Controller with Power Supply Reverse Polarity Protection, Over-Voltage Protection, 10A Standard Fuse Over-Load Protection
Knob Designed: 10A Speed Motor come with Speed Control Knob Which Help Control Motor Speed
Applications: Speed Controller Motor widely apply for DC Motor Speed Control, PLC Speed Control etc.
Package Contents: You will get 2pcs 10A DC 12V-24V Speed Controller Motor

Specification:

Working Voltage: DC 12V-40V
Maximum Output Power: 400W
Maximum Continuous Output Current: 8A
Overload and Short Circuit Protecting Current: 10A
Static Current:0.02 A ( Standby )
PWM Frequency: 13kHz
Knob Potentiometer: Resistance B100K, Trepanning 8mm
Fuse Wire: 5x20mm 10A

NOTE:

Speed Controller Motor 10A Module can NOT be used to the BRUSHLESS Motor
Please Double Check all Connections before Applying Power and Always Turn Off the Power Supply before Making Any Wiring Changes
