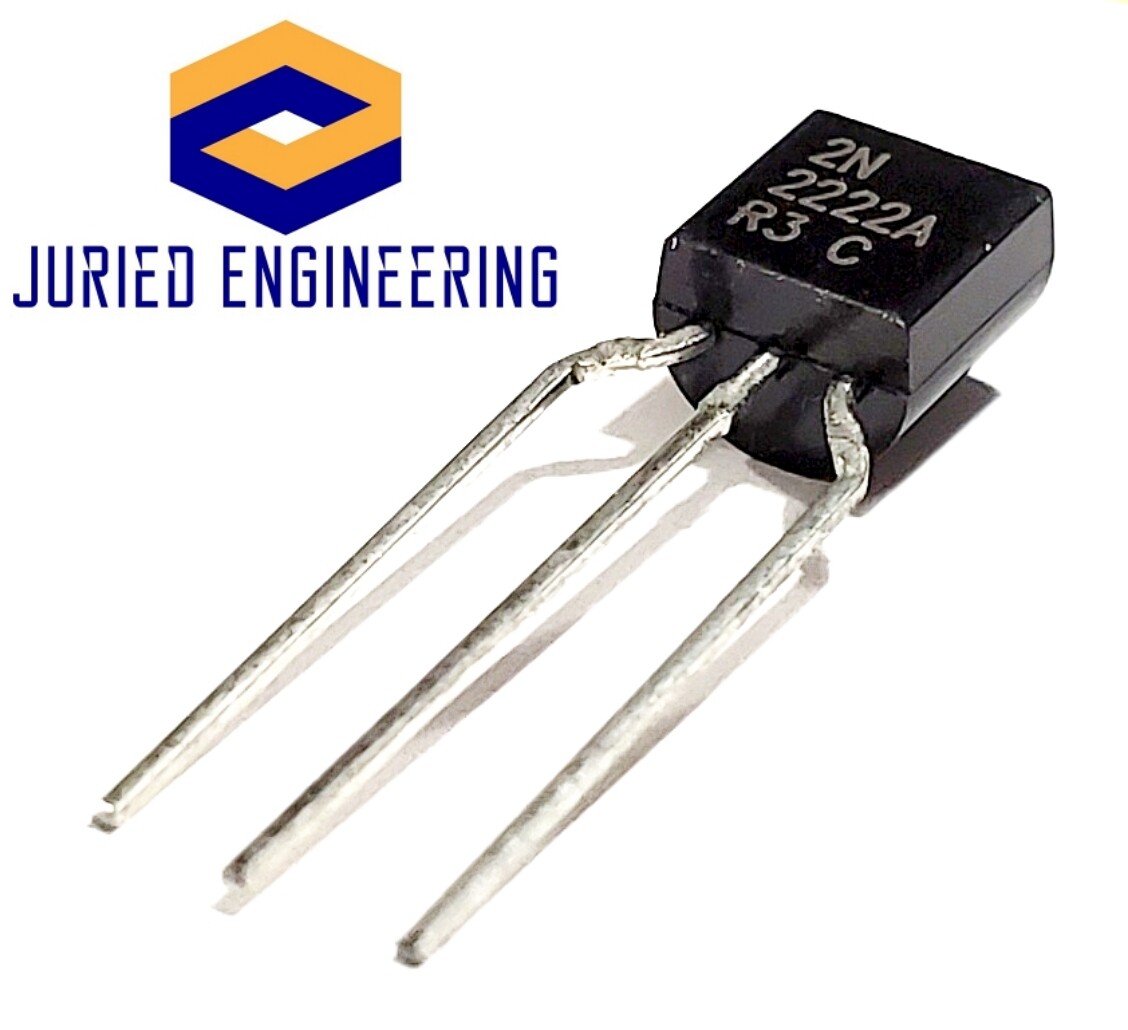

25PCS 2N2222A 2N2222 NPN TO-92 NPN Silicon Epitaxial Planar Transistor - NEW For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

25PCS 2N2222A 2N2222 NPN TO-92 NPN Silicon Epitaxial Planar Transistor - NEW:
$11.59

Sign up for our newsletter and receive special offers plus our most current updates. Buy 3, Get 1 at 50% OFF. Buy 4, Get 1 at 70% OFF.
Description:
The Diotec Semiconductor (Germany) 2N2222A is a NPN bipolar junction transistor housed in a TO-92 package and rated for use in a variety of applications including the roughest of automotive applications. The transistor housing has a flammability rating of UL 94V-0, while the transistor is both RoHS- and REACH-compliant. The 2N2222A has an approximate hFE of 200, a maximum collector current of 600 mA, a VCEO of 40 V, a maximum power dissipation of 625 mW, and a maximum transition frequency of 250 MHz. The operating temperature range of the 2N2222A is –55°C to 150°C, with a solderability profile of 260°C for 10 seconds. The recommended complementary PNP transistor is the 2N2907A.

Included:

25 x 2N2222

This item features:

Typical hFE of 200
Collector current of 600 mA
Maximum VCEO of 40 V
Maximum transition frequency of 250 MHz
Operating temperature range of –55°C to 150°C

Example Applications:

General-purpose style=\"font-family: Arial, Helvetica, sans-serif; font-size: 14px; line-height: 21px; color: rgb(68, 68, 68); padding: 0px; margin-top: 15px; margin-bottom: 15px;\">Condition:
- New and Authentic Component(s) - 2N2222 NPNGeneral Purpose Amplifier.
- Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
Shipping and general details:
- Shipping is free in the United States and shipped via USPS First Class.
- We do our best to offer you great pricing.
- Orders are packaged in custom-cut (dependent on quantity of chips ordered) anti-static tubes, providing excellent ESD protection.
- 30-Day Return Policy.
- We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
