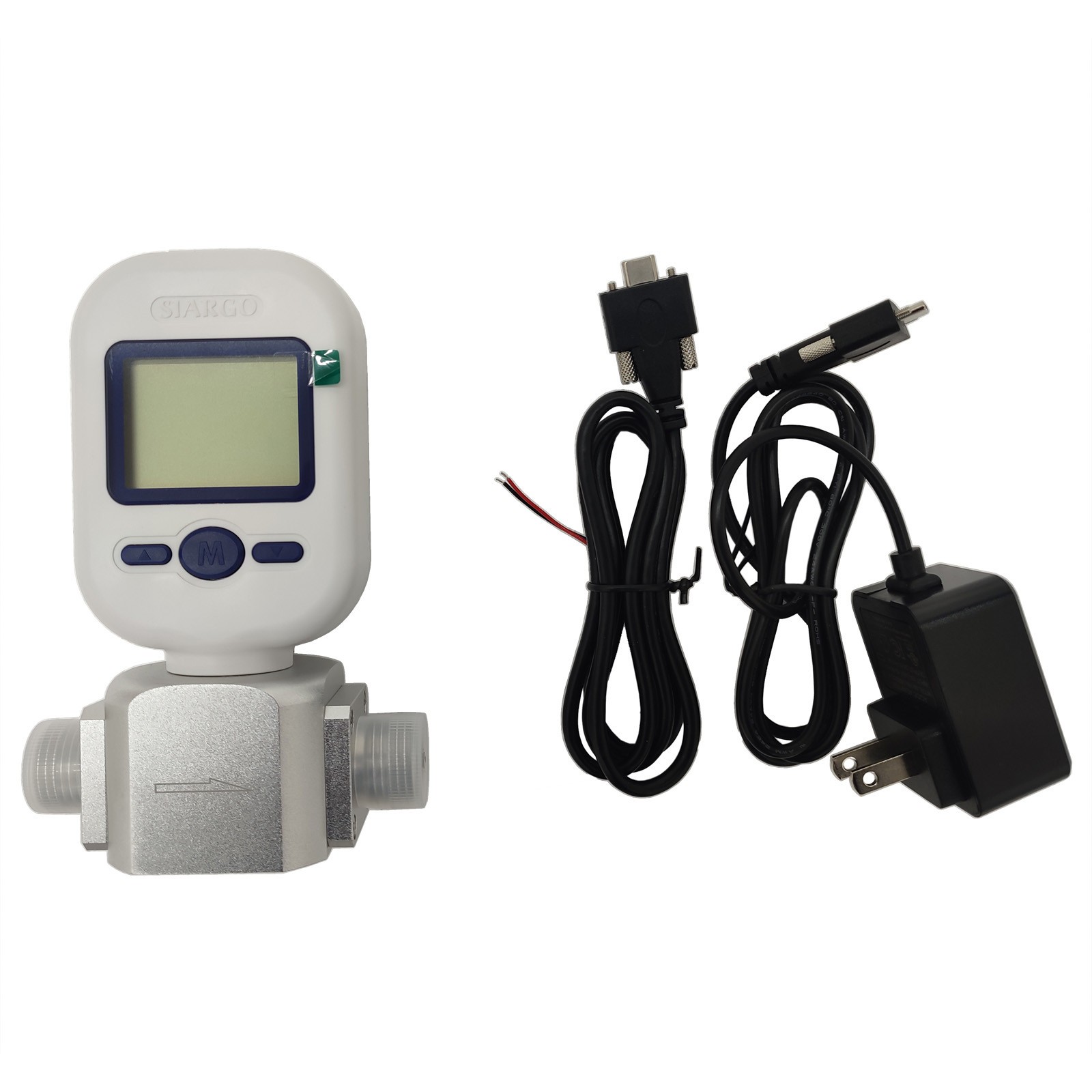

250L/min Handheld Digital Air Flow Meter with LCD Display & 5-24VDC Wide Voltage:
$256.68

Digital Gas Mass Flow Meter Oxygen, Nitrogen Air Flow Tester

Product Overview

MF5700 series flow meters measure flow mass flow sensor that is installed in the flow cannel forming a plate that serves as an additional flow conditioner from the boundary layer configuration resulting in a laminar flow. The mass flow measurement is established as the temperature field. Accurate flow rate is obtained by calibration with the standard fluid at the preset conditions.

Product Parameters Diameter 12mm Mechanical interface G 1/2" (BSPP1/2") Flow range 250L/min (standard condition) 15m³/h (standard)

Maximum input current

250mA

Maximum working pressure

0.8MPa

Operating temperature

-10~55℃

Power consumption

≤10mW

Instantaneous flow resolution

0.01L/min (standard)

Cumulative flow resolution

0.001m³ (standard)

Pressure loss

≤2000Pa

Standard calibration gas

Air (20℃, 101.325kPa)

Dimensions

98*50*141mm

Product Features

1.Two power supply modes:
①. Power adapter: External power (5-24) VDC
②. Four AA batteries (LR6), 6VDC
2. The sensor chip adopts thermal mass flow measurement without temperature and pressure compensation, which ensures the high-precision measurement of the flowmeter.
3. High sensitivity, can start to measure very small starting flow.
4. Multi-sensor integration is realized on a single chip, so that its range ratio reaches 80:1 or even higher.
5. High stability, high accuracy and excellent repeatability throughout the process.
6. Support a variety of gas measurement, fast response speed.
7.Parameters can be configured by pressing the button, and it has the function of over-range alarm indication.

Cautions

a) Don't try to loose any build-in part of the product.

b) Ensure eletrical wires for the inputs/outputs to be reliably connected.

c) Release all the installation stresses so that no stresses will be exerted on the product.

d) The product shoud avoid strong electromagnetic interference sources nearby ot periodic machanical shocks to its body or pipeline.

e) Slowly open/close valves to prevent abrupt pulse flow impact, which may damage the product.

Applications

Wide range of applications: mechanical and electrical industry. Food industry.
Tobacco industry. Analytical instrument industry. Chemical industry. Beverage industry. Glass industry. Scientific research institutions. Pharmaceutical industry. Agriculture, forestry and fishery.

Product Display Item Number (022633): 1 x

MF5700 Mass Flow Meter * 1

User Manual * 1

QC Certificate * 1

AC Adapter * 1
