20pcs 2N2222A NPN 2N2222 TO-92 Plastic-Encapsulate Power Transistors 75V 0.8A For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

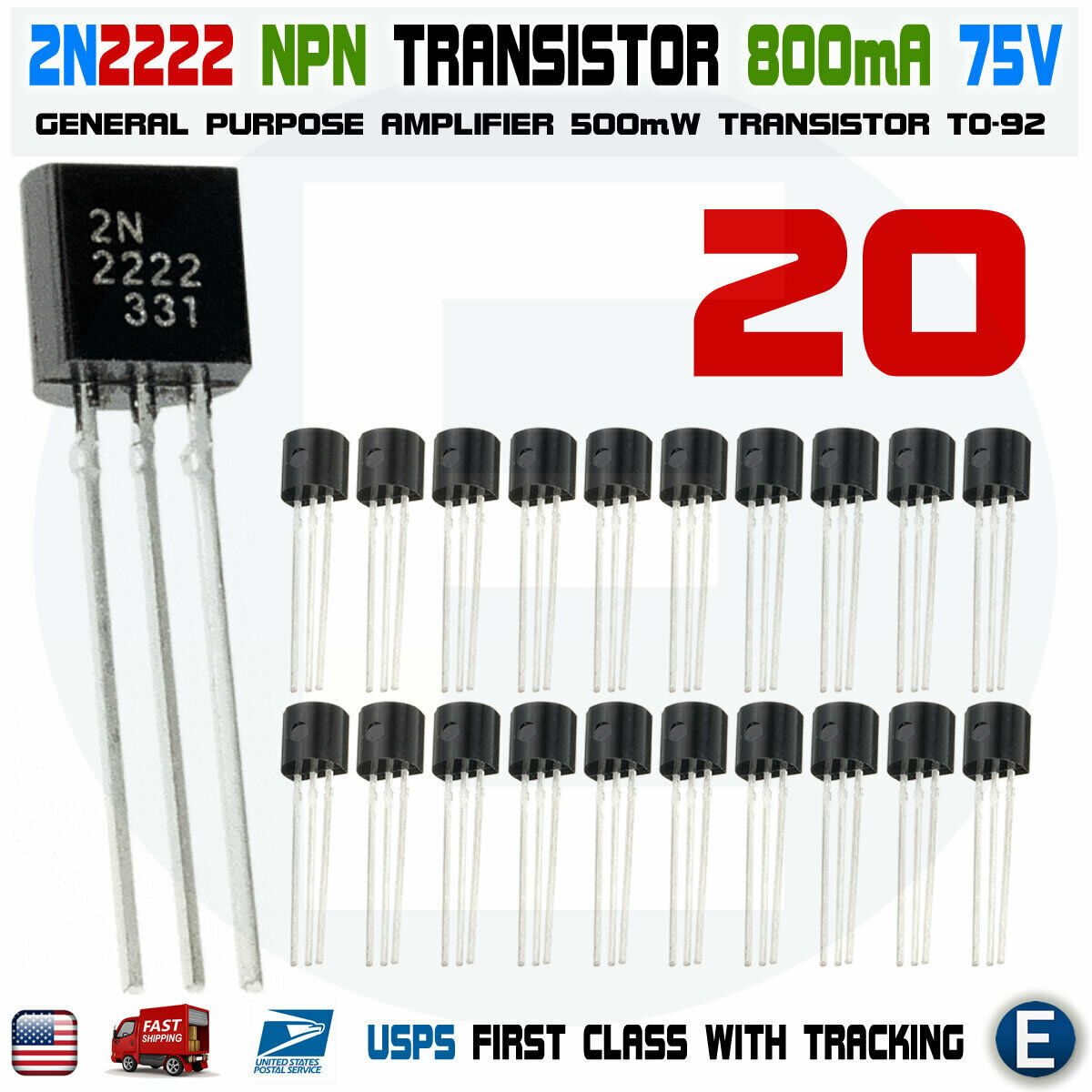

20pcs 2N2222A NPN 2N2222 TO-92 Plastic-Encapsulate Power Transistors 75V 0.8A:
$7.10

NPN Bipolar Junction Transistor
Repackaged from bulkTO-92 Case (EBC)
Collector-base voltage(max): 75VCollector-emitter voltage(max): 40VEmitter-base voltage(max): 6VCollector current(max): 600mADC current gain (hFE): 30-300Current-Gain-Bandwidth Product (fT): >300MHzMaterial of transistor: SiPolarity: NPNMaximum collector power dissipation (Pc), W: 0.5Maximum collector-base voltage |Ucb|, V: 60Maximum collector-emitter voltage |Uce|, V: 30Maximum emitter-base voltage |Ueb|, V: 5Maximum collector current |Ic max|, A: 0.8Maximum temp. (Tj), °C: 175Transition frequency (ft), MHz: 250Collector capacitance (Cc), pF: 8Forward current transfer ratio (hFE), min: 100
Package included:20pcs  2N2222 TO-92 Plastic-Encapsulate Power Transistors

---

---

---

TQDLYKHS 20Pcs 2N2222 + 20Pcs 2N2907 TO92 NPN Transistors 2N2222A 2N2907A

$11.83

---

20pcs 2N2222A NPN 2N2222 TO-92 Plastic-Encapsulate Power Transistors 75V 0.8A

$7.10

---

20pcs TO-18 2N2222 2N2222A NPN amplifier switching transistor #fb

$53.00

---
