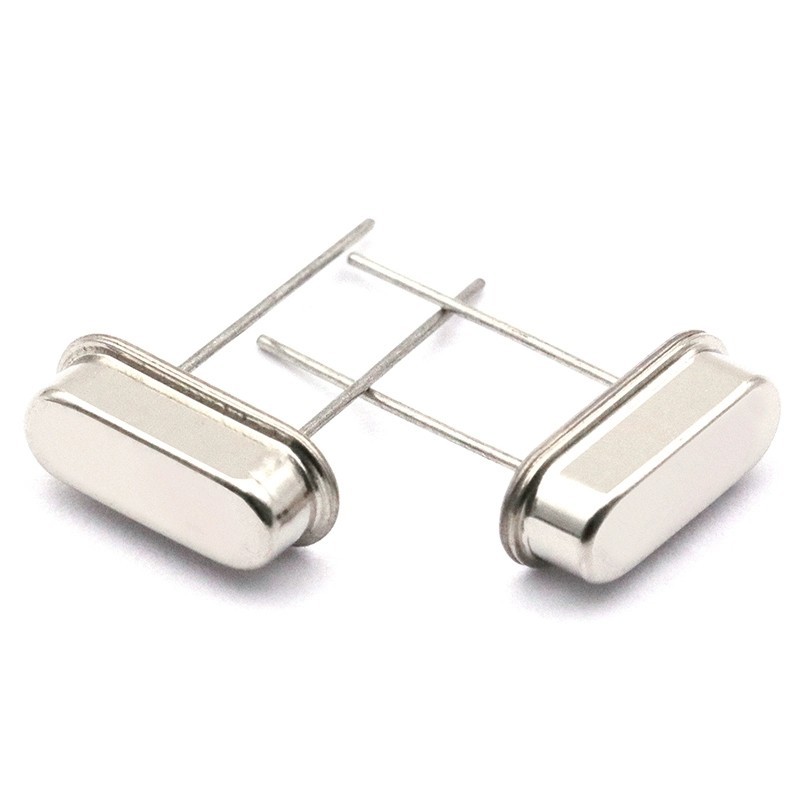

20PCS HC-49S 7.5M 7.5MHZ 7.500MHZ Passive Crystal Oscillator HC-49US NEW:
$2.99

Welcome to the Patkor store
Resonator:HC-49S20PF 10PPM
Price For: 20 PCS
Minimum Order Qty: 1
Product Information

• Frequency Tolerance:± 10ppm
• Load Capacitance: 20pF
• Frequency Stability:± 10ppm
• Operating Temperature Range:-20°C to +70°C
• Crystal Mounting Type: DIP
• No. of Pins: 2
• Accuracy:± 10ppm
•

  ---
