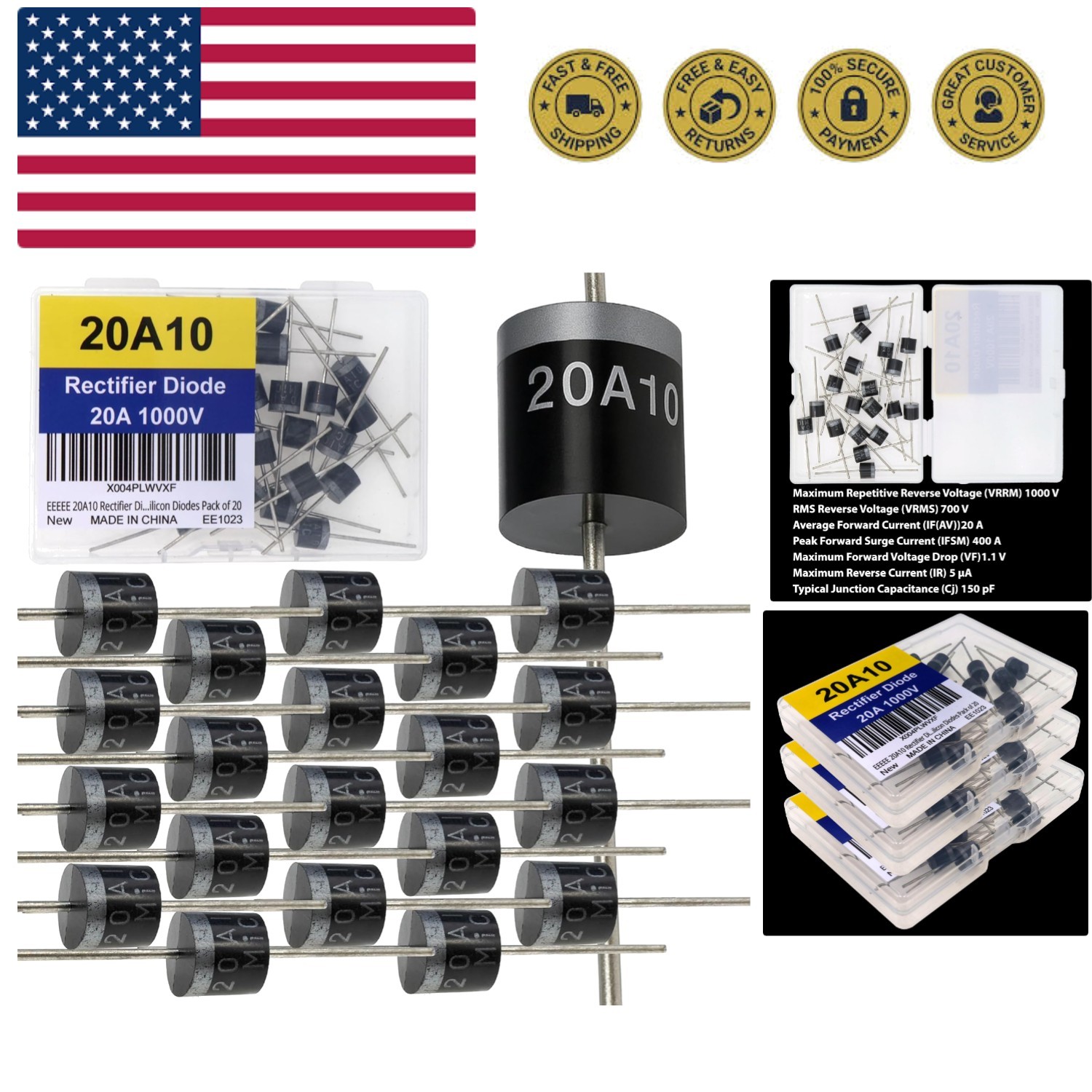

20A10 Diode Rectifier Diode 20pcs 20 Amp 20A 1000 Volt 1000V Electronic Silic...:
$13.98

20A10 Diode Rectifier Diode 20pcs 20 Amp 20A 1000 Volt 1000V Electronic Silicon Diodes high-Current, high-Voltage Rectifier diode in a DO-201AD Package, Ideal for Power Supply Applications.

The 20A10 diode is a high-power rectifier rated for 20 A continuous forward current and 1000 V reverse voltage, making it ideal for heavy-duty power supplies, inverters, and industrial rectification. It features a typical forward voltage drop of V for improved efficiency and can withstand up to 600 A surge current for short durations. Encased in a robust stud or high-current package, it offers excellent heat dissipation, mechanical strength, and reliable operation across a –65 °C to +150 °C temperature range.

Very High Current Capacity – Handles 20 A continuous forward current, ideal for heavy-duty rectification in industrial and high-power circuits.

High Voltage Rating – Withstands 1000 V reverse voltage, suitable for high-voltage AC/DC conversion.

Strong Surge Capability – Endures up to 600 A peak surge current, protecting against inrush and transient spikes.

Low Forward Voltage Drop – Around V, improving energy efficiency and reducing heat loss.

Rugged, Heat-Dissipating Package – Ensures durability, thermal stability, and long service life in demanding environments.

---

---

---

20A10 Diode Rectifier Diode 20pcs 20 Amp 20A 1000 Volt 1000V Electronic Silic...

$11.72

---

20A10 Diode Rectifier Diode 20pcs 20 Amp 20A 1000 Volt 1000V Electronic Silic...

$13.98

---

5x 6A10, 10A10, 20A10 | 1000V 1KV Axial Rectifier Diode Solar or GP | US Ship

$7.88

---
