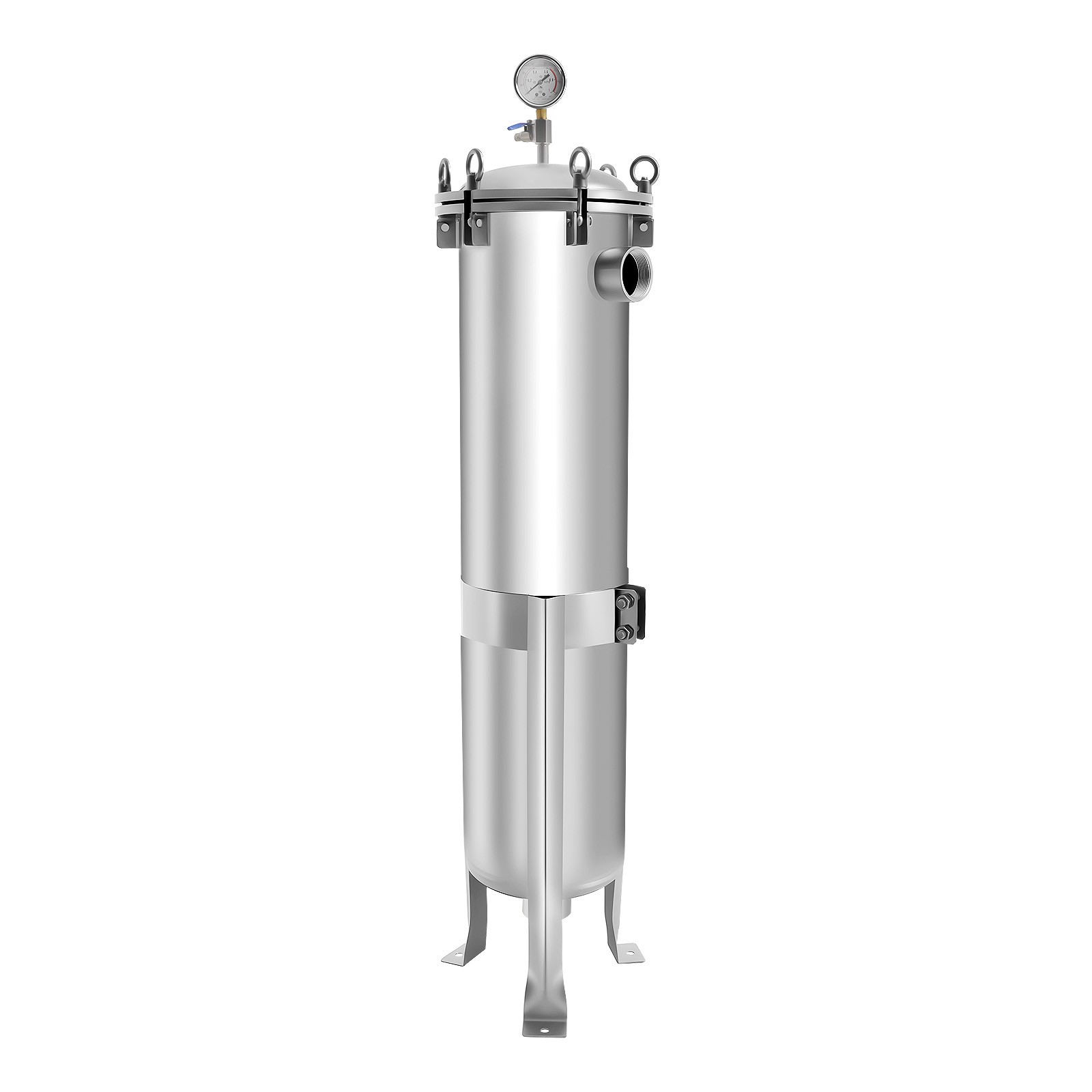

2" NPT Bag Filter Housing 304 Stainless Steel 150 Psi In/Out #2 Bag with Mesh:
$420.71

Mount Type: FloorstandingAssembly Required: YesMaterial: 304 Stainless SteelProcess: Mirror PolishingThickness: 2mm/0.08inFilter Bag Size: 180*810mm/7.1*31.9inHeight Range: 1145-1345mm/45.1-52.9inSupport Feet Length: 570mm/22.4inCenter Straight Barrel Length: 860mm/33.86inDistance from the Center of the Inlet to the Opening Side: 90mm/3.54inProduct Diameter: 219mm/8.62inFiltration Area: 0.46m²/4.95ft²Reference Flow Rate: 30-40t/hInlet/ Outlet Female Thread Size: NPT 2″Maximum Pressure: 1.0MPaPressure GaugeThread Diameter: M14x1.5Thread Height: 15mm/0.59inTotal Height: 90±2mm/3.54±0.08inDial Diameter: 68±1mm/2.68±0.04inDial Thickness: 28±2mm/1.1±0.08inAccuracy: 2.5 LevelAmbient Temperature: -20~80℃/-4~176℉Net Weight: 20.43kg/45.04lbs2" NPT Bag Filter Housing 304 Stainless Steel 150 Psi In/Out #2 Bag with Mesh

Specification

Mount Type: Floorstanding

Assembly Required: Yes

Material: 304 Stainless Steel

Process: Mirror Polishing

Thickness: 2mm/0.08in

Filter Bag Size: 180*810mm/7.1*31.9in

Height Range: 1145-1345mm/45.1-52.9in

Support Feet Length: 570mm/22.4in

Center Straight Barrel Length: 860mm/33.86in

Distance from the Center of the Inlet to the Opening Side: 90mm/3.54in

Product Diameter: 219mm/8.62in

Filtration Area: 0.46m²/4.95ft²

Reference Flow Rate: 30-40t/h

Inlet/ Outlet Female Thread Size: NPT 2″

Maximum Pressure: 1.0MPa

Pressure Gauge

Thread Diameter: M14x1.5

Thread Height: 15mm/0.59in

Total Height: 90±2mm/3.54±0.08in

Dial Diameter: 68±1mm/2.68±0.04in

Dial Thickness: 28±2mm/1.1±0.08in

Accuracy: 2.5 Level

Ambient Temperature: -20~80℃/-4~176℉

Net Weight: 20.43kg/45.04lbs

Package Included

1* Stainless Steel Bag Filter

Other Mounting Accessories

Key Features

Build to Last: 2mm wall thick high-grade 304 stainless steel material and exquisite mirror polishing process make this product durable, scratch-resistant, impact-resistant, and not easily corrode or deform, ensuring a long service life.

Cutting-edge Filtration: With a 7.1*31.9 inches filter bag, it has a filtration area of up to 4.95 square feet, greatly improving processing capacity. The filtrate enters through a side inlet, achieving smooth flow from top to bottom, effectively avoiding turbulent impact. It not only improves filtration efficiency, but also extends the service life of the filter bag, making each use more efficient and economical.

Meticulously Crafted Design: The probability of side leakage of the filter bag is low, ensuring stable and reliable filtration process. It can replace filter bag faster and more convenient, significantly reducing operation and maintenance costs. Meanwhile, the filter bag is supported by a sturdy metal mesh basket, effectively dispersing pressure, reducing the risk of damage, and greatly extending its service life.

Adjustable Height: You can adjust the overall height of the product(45.1-52.9 inches) by adjusting the support feet to determine the height of the machine from the ground according to the height of the inlet and outlet.

Pressure Guardian:With a measurement range of 1.0MPa, its high-precision 2.5-level shock-absorbing pressure gauge can accurately grasp internal pressure changes in real time, release excess pressure in a timely manner, ensure stable operation of the equipment, which is your trusted "pressure guardian".

Easy to Assemble: Thanks to its simple structure and complete assembly parts, you just need to install the parts and tighten the screws to start using.

Details

Three Stabilizing Feet:Three adjustable feet provide rock-solid support, enhancing safety and durability.

Pre-drilled Mounting Holes:With pre-drilled mounting holes, you can securely fasten the product to the ground.

Eyenut:It allows for easy and fast fastening of the lid.

Exhaust Valve: The pressure relief ball valve releases and exhausts pressure with one click, preventing excessive pressure inside the filter and extending the service life of the machine.

Application

This product is suitable for water treatment, ink, oil, beverage, and many other fields.

Notes

Please check the style and size before purchasing.
Please note that the filter must be cleaned with solvent (not included) before cleaning.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
