2.92mm Male to 2.92mm Female Adapter with Right Angle, DC - 40GHz For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

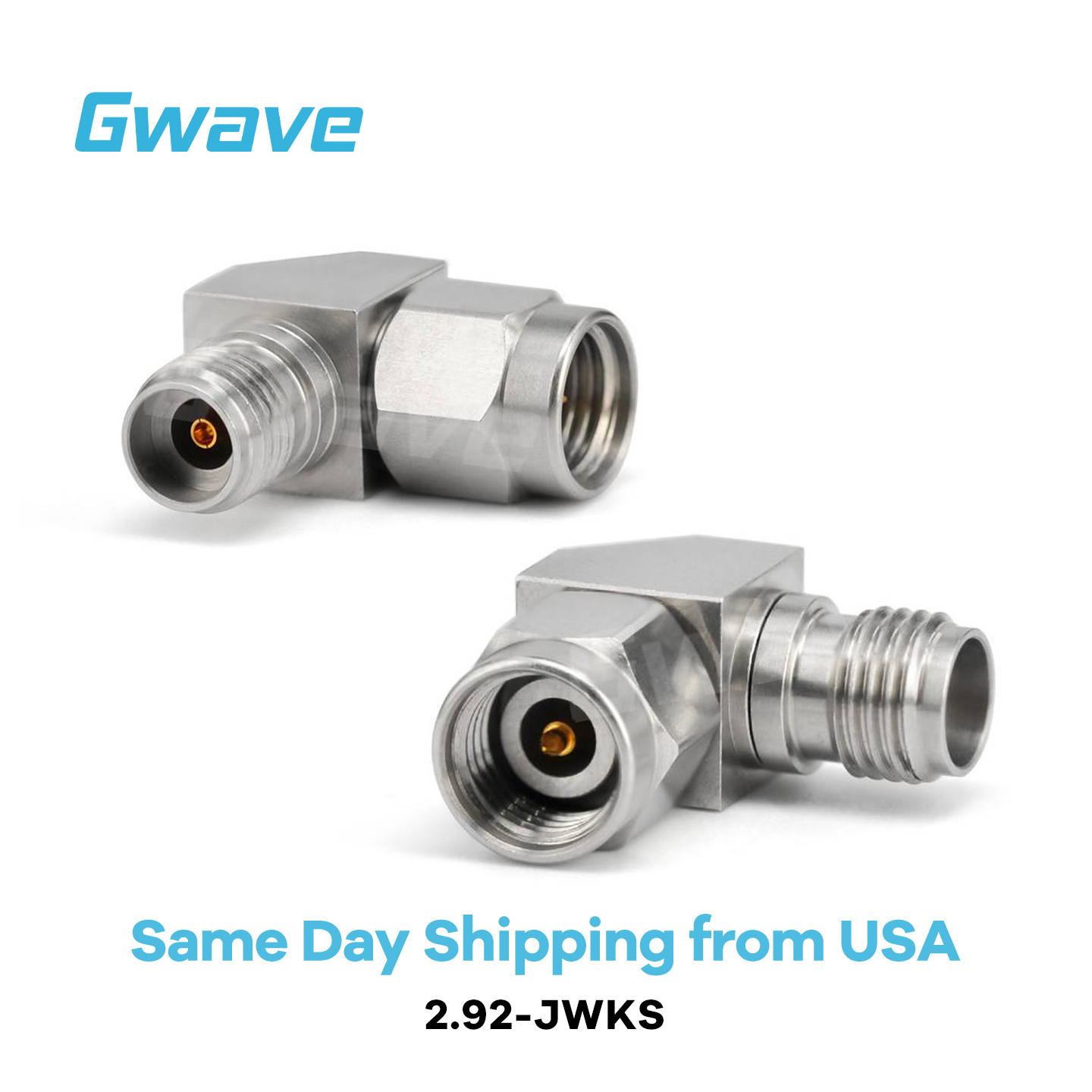

2.92mm Male to 2.92mm Female Adapter with Right Angle, DC - 40GHz:
$167.99

2.92mm Male to 2.92mm Female Adapter with Right Angle, DC - 40GHzProduct Configuration:Connector 1 Series: 2.92mmConnector 2 Series: 2.92mmConnector 1 Polarity: StandardConnector 2 Polarity: StandardBody Style: Right AngleConnector 1 Gender: MaleConnector 2 Gender: FemaleConnector 1 Impedance (Ohm): 50Connector 2 Impedance (Ohm): 50Electrical Specifications:Frequency: DC-40GHzVSWR: 1.25Insertion Loss: ≤0.08 xSqt.(f_GHz)Mechanical Data:Connector 1 Body Material: Stainless SteelConnector 1 Body Plating: PassivatedConnector 2 Body Material: Stainless SteelConnector 2 Body Plating: PassivatedMating Cycles, Min: ≥500Weight(g): 6.9Environmental Specifications:Operating Temperature Range: -55 ºC to +165 ºCRoHS Compliant: Yes 2.92mm Male to 2.92mm Female Right Angle Precision Adapter | DC-40GHz | Version S Product Description: FR1-2.92-JWKS is a 2.92mm Male to 2.92mm Female Right Angle Precision Adapter | DC-40GHz | Version S coaxial adapter that covers the frequency range from DC - 40GHz. This adapter has a Right Angle body and ensures an excellent microwave performance with low insertion loss and VSWR / Return Loss of 1.25. This adapter is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications. The body of 2.92mm is made from Stainless Steel and the body of 2.92mm is made from Stainless Steel. The impedance of this adapter is 50 ohms to 50 ohms. Our 2.92mm Male to 2.92mm Female Right Angle Precision Adapter | DC-40GHz | Version S adapter has an operating temperature range of -55 ºC to +165 ºC.This radio frequency adapter is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 145 GHz radio frequency adapter that meets your requirements. Product Specifications: Product Configuration:Connector 1 Series: 2.92mmConnector 2 Series: 2.92mmConnector 1 Polarity: StandardConnector 2 Polarity: StandardBody Style: Right Angle Connector 1 Gender: MaleConnector 2 Gender: FemaleConnector 1 Impedance (Ohm): 50Connector 2 Impedance (Ohm): 50 Electrical Specifications:Frequency: DC - 40GHzVSWR: 1.25Insertion Loss: ≤ 0.08 x Sqrt.(f_GHz)Mechanical Data:Connector 1 Body Material: Stainless SteelConnector 1 Body Plating: PassivatedConnector 2 Body Material: Stainless SteelConnector 2 Body Plating: PassivatedMating Cycles, Min: ≥500Weight (g): 6.9Environmental Specifications:Operating Temperature Range: -55 ºC to +165 ºCRoHS Compliant: Yes integration by
