16pc SPX Waukesha W61 W62 W71 2" Sanitary Valve Actuator Lot Parts Repair:
$1974.99

16-piece SPX / Waukesha Cherry-Burrell sanitary valve lot
W61, W62 & W71 — 2-inch S-Line configurations

One purchase buys the entire photographed lot of 16 valve assemblies. This is a mixed group of stainless sanitary valves with pneumatic actuators and control tops. Readable labels identify W61 shut-off, W62 divert and W71 mixproof configurations; the models and body arrangements vary.

FOR PARTS OR NOT WORKING — UNTESTED. No functional test results are available. Offered for inspection, parts recovery or rebuilding; operation, sealing, electronics and internal completeness are unverified. This listing does not represent 16 tested working valves.Included in the lot

16 valve assemblies as photographed, including their attached actuators, valve bodies, control tops and attached tubing/hardware where shown. These are mixed models, not 16 identical valves. Multiple photographs show the same assemblies from different angles. Red coverings/tape are visible on many ports. Background storage equipment, carpet and unrelated items are not included.

Identification and configurationFieldPhotographed identificationBrandWaukesha Cherry-Burrell / SPXModel familiesW61, W62 and W71; mixed configurationsNominal valve size2.0 inches on readable labelsConnectionsS-Line sanitary clamp connections on readable labelsActuationPneumatic; 4-inch actuators on readable W61/W62 labelsControl equipmentControl tops, Set and Forget sensors and DeviceNet cards stated on readable labelsElectrical label detailsOne 24 VDC solenoid and 5-pin Eurofast connector on readable labelsSale quantity1 complete lot containing 16 valve assemblies

Size clarification: “2.0 inch” is the valve size shown on the labels. The “4 inch air-to-raise/air-to-lower” wording refers to the actuator size and action, not a 4-inch process connection. W61 examples are air-to-raise; the W6201533 W62 TT examples are air-to-lower. X10192 is marked W62 TOPR x TOPL, air-to-raise. The X10021 W71 label includes a separate “SPECIAL 3.5 inch” notation whose application has not been established.

Nameplate inventory

The table transcribes 15 printed nameplate views and records one unreadable label. Photo numbers match the full image collection below. Obscured characters are left incomplete rather than guessed. Labels describe original configurations; they do not verify current functionality or completeness.

PhotoPart numberSerial numberLabel configuration3X101921000002428453W62 TOPR x TOPL; 2.0 in S-Line; 4 in air-to-raise4W61032481000002111345W61 C; 2.0 in S-Line; 4 in air-to-raise7W61034041000002114582W61 TS; 2.0 in S-Line; 4 in air-to-raise8W61034051000002114584W61 TD; 2.0 in S-Line; 4 in air-to-raise9X10021…835976 (partially obscured)W71; 2.0 in A1 S-Line; non-seat lifting; special 3.5 in notation10W61034… (label damaged)…114581 (partially obscured)W61 TS; 2.0 in S-Line; air-to-raise; label damaged11W62015331000002114586W62 TT; 2.0 in S-Line; 4 in air-to-lower12W62015331000002114585W62 TT; 2.0 in S-Line; 4 in air-to-lower13W62015331000002114587W62 TT; 2.0 in S-Line; 4 in air-to-lower14W61034031000002114578W61 CD; 2.0 in S-Line; 4 in air-to-raise15W61033201000002113405W61 CS; 2.0 in S-Line; 4 in air-to-raise19W61032481000002113407W61 C; 2.0 in S-Line; 4 in air-to-raise21W61034031000002115765W61 CD; 2.0 in S-Line; 4 in air-to-raise24W61034031000002114579W61 CD; 2.0 in S-Line; 4 in air-to-raise25W61034031000002114580W61 CD; 2.0 in S-Line; 4 in air-to-raise5Unreadable / missing printUnreadableIdentification not established from this labelAdditional label details

W61 / W62: Readable labels specify control top, Set and Forget sensor, DeviceNet card, one 24 VDC solenoid, five-pin Eurofast connector, Tef-Flow stem, FKM elastomers and 32 Ra finish. Part numbers visible include W6103248, W6103403, W6103404, W6103405, W6103320, W6201533 and X10192.
X10021 / W71: Label reads 2.0-inch A1 S-Line, without external flush, non-seat lifting, Set and Forget sensor, DeviceNet card, one 24 VDC solenoid, five-pin Eurofast connector, tri-ring stem, FKM elastomers and 32 Ra finish. The serial number is partly obscured.
W71 label limitation: The X10021 label explicitly states it is not PMO Section 7, Item 15p(B) compliant. No current sanitary-service certification or process suitability is represented for this mixed lot.

Condition and testing

Used industrial equipment with visible scuffs, scratches, storage residue and worn or damaged identification labels. One photographed label is unreadable. Control-top contents, wiring, tubing and port arrangements differ among assemblies. The red port coverings are storage coverings and do not establish cleanliness or sealing performance.

No actuation, leak, pressure, electrical, DeviceNet communication or sanitation test results are available. Seal condition and internal parts have not been verified. Plan inspection, cleaning and any necessary repairs/rebuilding before use. Factory label specifications are identification references, not a guarantee of current performance. The supplied video is a visual walkaround, not an operating test.

Local pickup

Local pickup in Carol Stream, Illinois 60188. The asking price is for all 16 assemblies together. Shipping is not included. Packed dimensions and total weight have not been verified; coordinate pickup and handling arrangements through messages.

Complete photo collection

All 25 supplied photos are displayed below: full-lot overviews, assembly details and nameplates. Original photo numbers are retained for reference to the table.

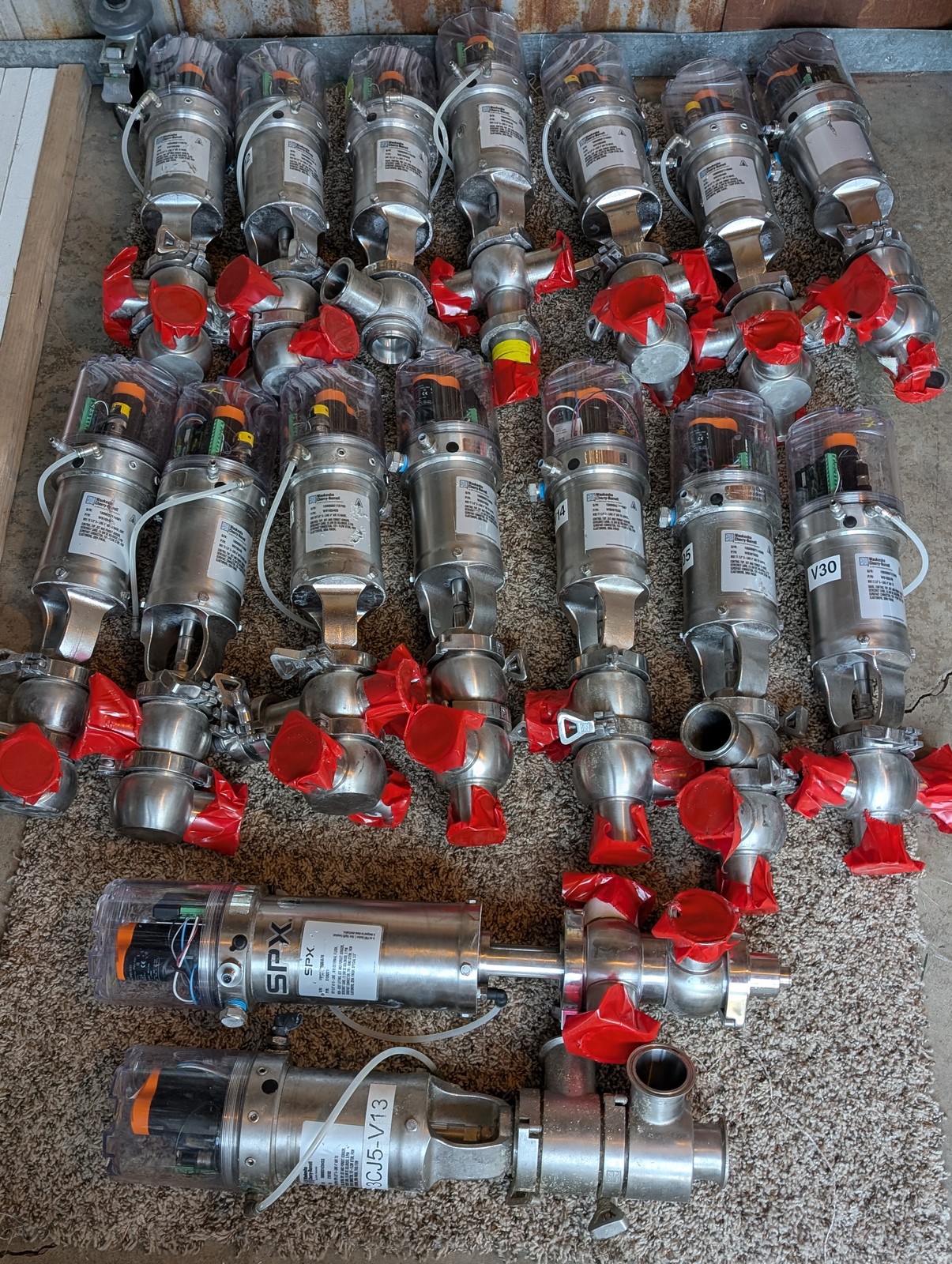

Full-lot overviewsPhoto 2 — Full lot laid out for inspection; 16 valve assembliesPhoto 1 — Upright overview showing control tops and valve bodiesAssembly and valve-body detailsPhoto 6 — Three assemblies with S-Line connections and visible tubingPhoto 16 — Valve bodies, actuators and control tops; first groupPhoto 17 — Alternate group view showing body configurationsPhoto 18 — X10192 W62 and X10021 W71 assembliesPhoto 20 — Three assemblies with different valve-body configurationsPhoto 22 — W62 TT group and adjacent valvesPhoto 23 — W62 TT valves and W61 C assembly marked V30Nameplates and label conditionPhoto 3 — Nameplate: X10192; serial 1000002428453; W62 TOPR x TOPL; 2.0 in S-Line; 4 in air-to-raisePhoto 4 — Nameplate: W6103248; serial 1000002111345; W61 C; 2.0 in S-Line; 4 in air-to-raisePhoto 7 — Nameplate: W6103404; serial 1000002114582; W61 TS; 2.0 in S-Line; 4 in air-to-raisePhoto 8 — Nameplate: W6103405; serial 1000002114584; W61 TD; 2.0 in S-Line; 4 in air-to-raisePhoto 9 — Nameplate: X10021; serial …835976 (partially obscured); W71; 2.0 in A1 S-Line; non-seat lifting; special 3.5 in notationPhoto 10 — Nameplate: W61034… (label damaged); serial …114581 (partially obscured); W61 TS; 2.0 in S-Line; air-to-raise; label damagedPhoto 11 — Nameplate: W6201533; serial 1000002114586; W62 TT; 2.0 in S-Line; 4 in air-to-lowerPhoto 12 — Nameplate: W6201533; serial 1000002114585; W62 TT; 2.0 in S-Line; 4 in air-to-lowerPhoto 13 — Nameplate: W6201533; serial 1000002114587; W62 TT; 2.0 in S-Line; 4 in air-to-lowerPhoto 14 — Nameplate: W6103403; serial 1000002114578; W61 CD; 2.0 in S-Line; 4 in air-to-raisePhoto 15 — Nameplate: W6103320; serial 1000002113405; W61 CS; 2.0 in S-Line; 4 in air-to-raisePhoto 19 — Nameplate: W6103248; serial 1000002113407; W61 C; 2.0 in S-Line; 4 in air-to-raisePhoto 21 — Nameplate: W6103403; serial 1000002115765; W61 CD; 2.0 in S-Line; 4 in air-to-raisePhoto 24 — Nameplate: W6103403; serial 1000002114579; W61 CD; 2.0 in S-Line; 4 in air-to-raisePhoto 25 — Nameplate: W6103403; serial 1000002114580; W61 CD; 2.0 in S-Line; 4 in air-to-raisePhoto 5 — Nameplate: Unreadable / missing print; serial Unreadable; Identification not established from this label
