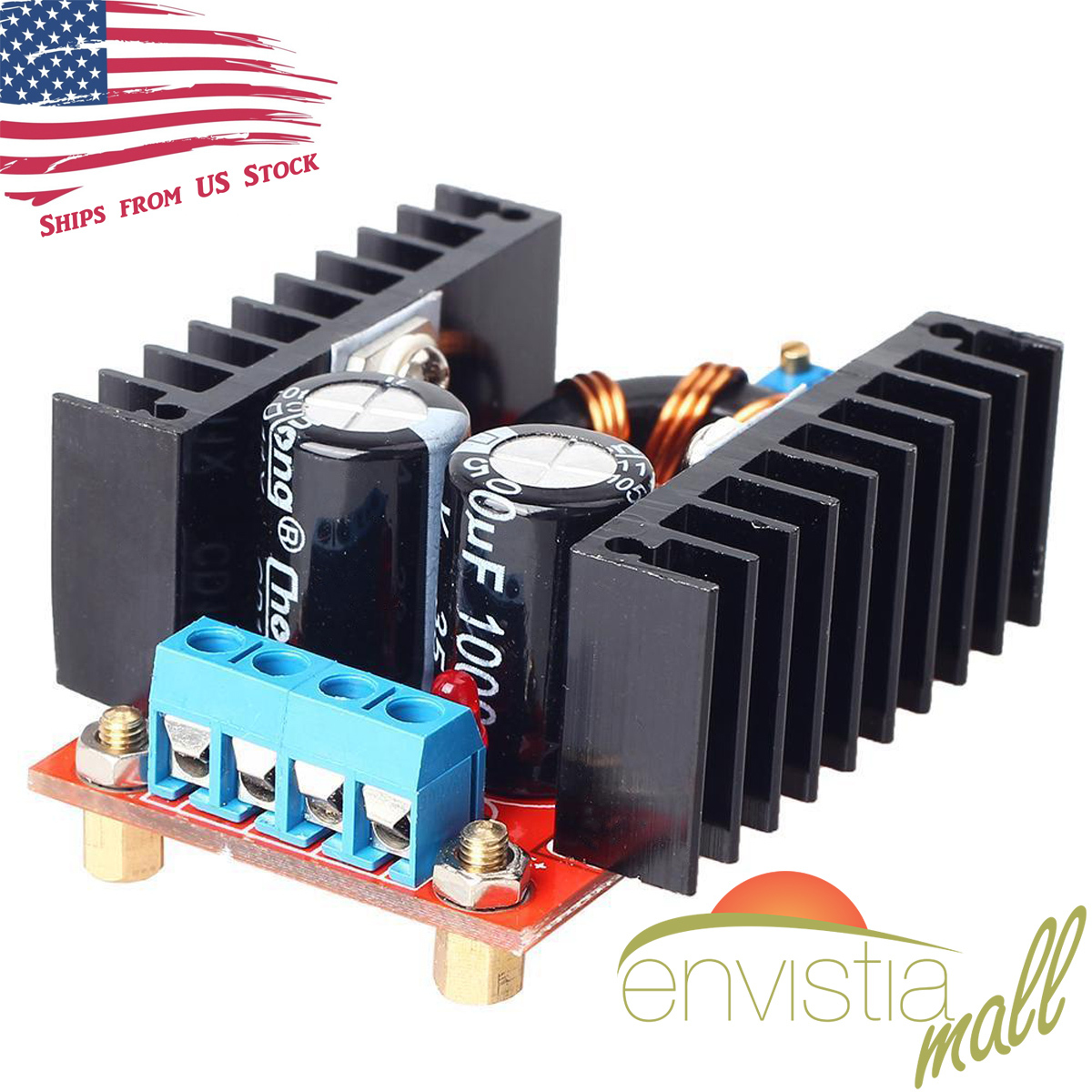

150W DC-DC Step Up Boost Converter Power Supply Module 10-32V to 12-35V 6A Out:
$8.69

**150W DC-DC Step Up Boost Converter Module | 10-32V to 12-35V, 6A Output**Elevate your power projects with our 150W DC-DC Step Up Boost Converter Module! This versatile module transforms a 10Vâ32V DC input into an adjustable 12Vâ35V output, delivering up to 6A--ideal for automotive, solar, and DIY applications.**Key Features:**- **High Efficiency:** Up to 94% conversion efficiency minimizes energy loss.- **Adjustable Output:** Fine-tune voltage using the onboard potentiometer.- **Robust Design:** Compact and reliable, perfect for integration into various projects.**Specifications:**- Input Voltage: 10Vâ32V- Output Voltage: 12Vâ35V (adjustable)- Max Current: 6A- Controller IC: UC3843 for reliable performance**Applications:**- Powering automotive accessories- Charging devices from solar power- DIY adjustable power supplies**Important:** This is a boost converter; ensure your settings are correct to avoid damage. Multimeter required for voltage settings. **Why Choose Us?** Enjoy fast free shipping from the USA, hassle-free returns, and responsive customer support. Shop confidently with Envistia Mall!

Electronics for IoT, Prototyping & DIY

**150W DC-DC Step Up Boost Converter Module | 10-32V to 12-35V, 6A Output**Elevate your power projects with our 150W DC-DC Step Up Boost Converter Module! This versatile module transforms a 10V–32V DC input into an adjustable 12V–35V output, delivering up to 6A--ideal for automotive, solar, and DIY applications.**Key Features:**- **High Efficiency:** Up to 94% conversion efficiency minimizes energy loss.- **Adjustable Output:** Fine-tune voltage using the onboard potentiometer.- **Robust Design:** Compact and reliable, perfect for integration into various projects.**Specifications:**- Input Voltage: 10V–32V- Output Voltage: 12V–35V (adjustable)- Max Current: 6A- Controller IC: UC3843 for reliable performance**Applications:**- Powering automotive accessories- Charging devices from solar power- DIY adjustable power supplies**Important:** This is a boost converter; ensure your settings are correct to avoid damage. Multimeter required for voltage settings. **Why Choose Us?** Enjoy fast free shipping from the USA, hassle-free returns, and responsive customer support. Shop confidently with Envistia Mall! 150W DC-DC Step Up Boost Converter Power Supply Module -- 10-32V Input, 12-35V Adjustable Output, 6A Max

This 150W DC-DC boost converter module steps up a lower DC input voltage (10V–32V) to a higher, adjustable output voltage (12V–35V) at up to 6A. Based on the proven UC3843 PWM controller IC, it\'s a reliable and versatile building block for automotive, solar, battery, and DIY adjustable power supply projects. Simply turn the onboard multi-turn potentiometer to dial in your desired output voltage.

⚠️ Important: This is a step-up (boost) converter only -- the output voltage must always be set higher than the input voltage. There is no built-in over-current, over-voltage, or reverse polarity protection. Always verify your wiring and output voltage with a multimeter before connecting your load.🔧 How It Works

Connect your DC power source (10V–32V) to the IN+ and IN− screw terminals. Double-check polarity -- there is no reverse polarity protection.
With no load connected, use a multimeter on the OUT+ and OUT− terminals to read the output voltage.
Turn the onboard multi-turn potentiometer with a small screwdriver to set your desired output voltage (12V–35V). Clockwise increases voltage; counter-clockwise decreases it.
Power off, connect your load to the OUT+ and OUT− terminals, then power on again.
Verify the output voltage under load and fine-tune the potentiometer if needed.

⚡ Key Features

150W Maximum Output -- Up to 150W with forced-air cooling; approximately 100W with natural convection
Wide Input Range -- Accepts 10V to 32V DC input from batteries, solar panels, wall adapters, or bench supplies
Adjustable Output -- 12V to 35V DC, set via onboard multi-turn potentiometer for precise voltage control
6A Maximum Current -- Delivers up to 6A of output current for demanding loads
High Efficiency -- Up to 94% conversion efficiency, minimizing wasted energy and heat
UC3843 PWM Controller -- Proven, reliable controller IC with ~100 kHz switching frequency
Screw Terminal Connections -- Secure, vibration-resistant input and output connections
Compact Form Factor -- Small enough to integrate into enclosures, vehicles, and portable projects

📐 SpecificationsConverter TypeDC-DC Step-Up (Boost)Controller ICUC3843 PWM ControllerInput Voltage Range10V to 32V DCOutput Voltage Range12V to 35V DC (adjustable via potentiometer)Maximum Output Current6AMaximum Output Power150W (with fan); ~100W (no fan)Conversion EfficiencyUp to 94%Switching Frequency~100 kHzInternal Voltage Drop~2VOutput Voltage AdjustmentMulti-turn potentiometerInput/Output ConnectionsScrew terminals (IN+, IN−, OUT+, OUT−)ProtectionNone built-in (no over-current, over-voltage, or reverse polarity)Operating Temperature−40°C to +85°CDimensionsApprox. 65 × 48 × 23 mm (2.56 x 1.89 x 0.91 inches) L × W × HWeight~40g📦 What\'s in the Box

1x 150W DC-DC Step Up Boost Converter Module

Multimeter, power supply, load devices, wires, and fuses are not included.

🛒 What You\'ll Need

DC power source (10V–32V) -- battery, solar panel, wall adapter, or bench supply rated for your load\'s current draw
Multimeter -- essential for setting and verifying the output voltage (no onboard display)
Small screwdriver -- flathead or Phillips for adjusting the potentiometer and screw terminals
Appropriate gauge wire -- 18 AWG for loads up to 3A; 14–16 AWG for higher currents
Inline fuse (recommended) -- for input-side protection since the module has no built-in overcurrent protection

🎯 Typical Applications

Charging laptops from 12V car batteries (boost 12V to 19V)
Solar power systems -- stepping up panel voltage for battery charging
Automotive electronics -- boosting 12V to power 24V accessories
DIY adjustable bench power supplies
LED driver circuits requiring higher voltage than available
Powering 24V relays, solenoids, or motors from a 12V source
Amateur radio and communications equipment power supplies
Battery-powered projects needing a voltage boost

💡 Tip: Always set the output voltage before connecting your load. Turn the potentiometer fully counter-clockwise first to start at the lowest output, then increase gradually while monitoring with a multimeter. The module may power on at maximum voltage, which could damage sensitive equipment.⚠️ Important Notes

Do not exceed 32V input or 35V output.
Do not exceed 6A output current or 150W output power (with fan cooling).
The output voltage must always be set higher than the input voltage -- this is a boost converter only.
There is no reverse polarity protection -- a reversed input will likely destroy the module instantly.
There is no over-current or over-voltage protection -- use an external fuse and always verify output with a multimeter.
Do not operate above 100W continuous without forced-air cooling (fan).
The module has an internal voltage drop of approximately 2V -- account for this when selecting your supply voltage.
Disconnect the load before adjusting the output voltage to avoid voltage spikes.
The MOSFET and inductor will get warm under load -- this is normal. Excessive heat indicates the need for better cooling or a reduced load.
