12Y65 HVAC Condenser Fan Motor 1/4 HP 100483-43 for Interlink, Lennox YSLB-220-8 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

12Y65 HVAC Condenser Fan Motor 1/4 HP 100483-43 for Interlink, Lennox YSLB-220-8:
$175.99

12Y65| 100483-43 1/4 HP 208-230V 825 RPM HVAC Condenser Fan Motor & 10 MFD Capacitor Kit Direct: OEM Fit for Lennox, Allied, Armstrong & Ducane AC Units | Replaces 12Y65 & 100483-43 Buy With Confidence!

✓ FAST & FREE SHIPPING (Same or Next Business Day)
✓ FREE 30-DAY RETURNS
✓ 1-YEAR WARRANTY
✓ SHIPS FROM THE U.S.A.

Product Details

Restore proper outdoor airflow, head pressure control, and efficient cooling performance to your residential AC or heat pump system with this (OE Grade Direct Replacement) 12Y65 Condenser Fan Motor. A failing, seized, or overheating outdoor fan motor causes head pressure to spike, tripping compressor internal overloads and preventing your home from reaching desired indoor temperatures.

Built to exact OEM specifications, this Permanent Split Capacitor (PSC) motor features industrial-grade pure copper windings, a quiet low-vibration bearing design, and a NEMA 48Y frame housing. Operating at 1/4 HP, 208/230V, and 825 RPM with a low 1.70A draw, it delivers reliable continuous-duty air-over performance. Comes complete with OEM-matching wiring leads and a bonus 10 MFD / 370 VAC run capacitor so you have everything needed for a seamless installation.

Condition: Brand New.

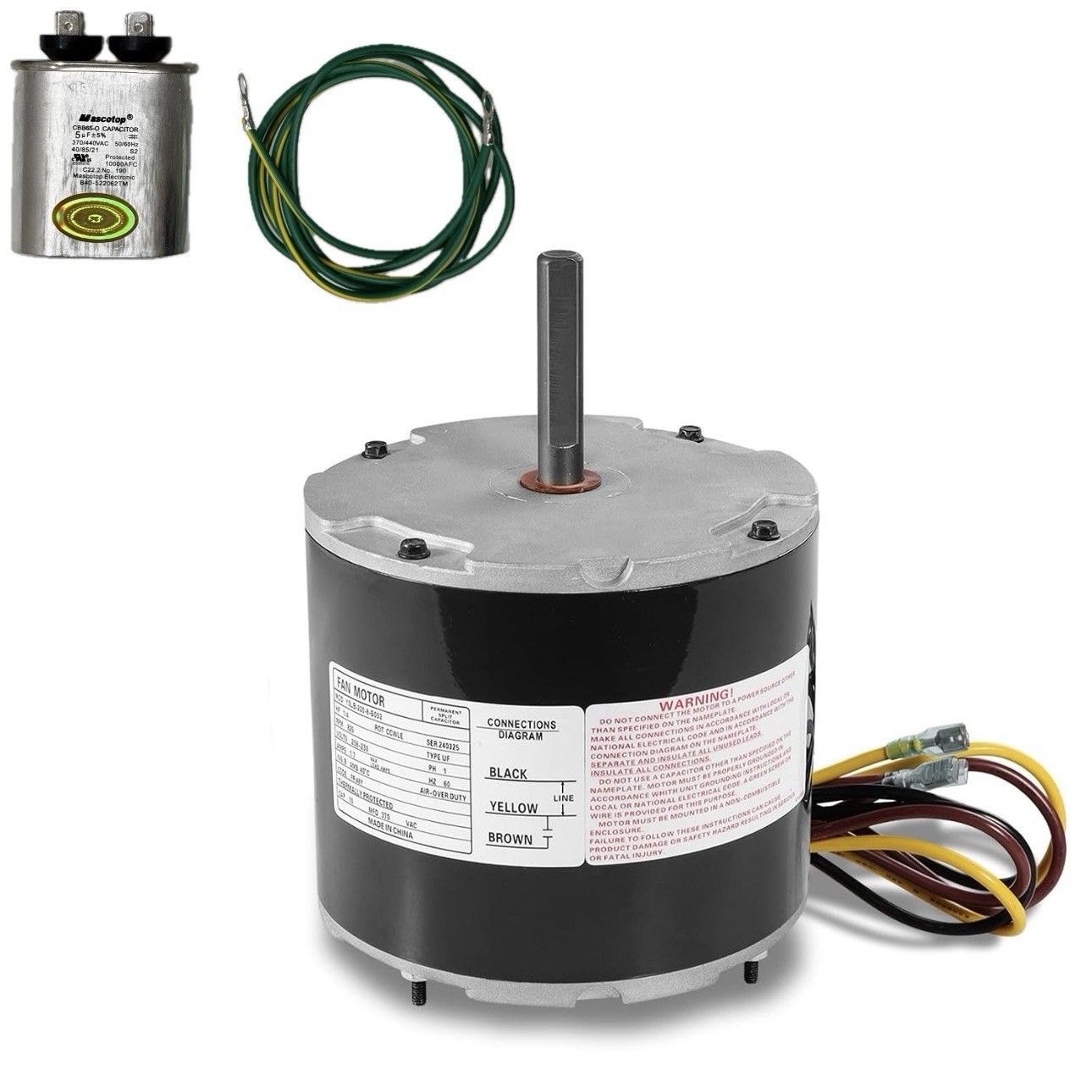

Includes: (1) 1/4 HP 208-230V 825 RPM Condenser Fan Motor, (1) 10 MFD / 370 VAC Oval Run Capacitor. (You will receive the exact fan motor shown in the listing photos)

💡 PRO HVAC TECHNICIAN TIP:
Always disconnect main high-voltage power at the outdoor disconnect box before servicing the motor! Whenever replacing a condenser fan motor, ALWAYS install the included new run capacitor at the same time. Running a new motor on an old weak capacitor can cause high amperage draw, thermal tripping, and premature winding failure. Check the motor shaft rotation (CCWLE) and make sure all drain plugs on the bottom of the motor shell face downward to prevent rainwater accumulation. Key Features

Direct OEM Drop-In: Pre-wired harness and mounting studs align directly with factory top fan grilles.
Quiet Energy-Efficient Design: PSC motor architecture reduces operational noise by up to 15% and maintains low amp draw.
Includes Matched Capacitor: Comes with the correct 10 MFD / 370 VAC run capacitor for quick installation.
Industrial-Grade Winding: Pure copper coils and automatic thermal overload protection handle severe hot summer ambient temperatures.

Specifications Type: Condenser Fan Motor OEM Part Number: 12Y65 / 12Y6501 Horsepower / Voltage: 1/4 HP / 208-230V AC (1 Phase, 60Hz) Speed / Amps: 825 RPM / 1.70 Full Load Amps Frame Size / Rotation: NEMA 48Y Frame / CCWLE (CCW Lead End) Capacitor Rating: 10 MFD / 370 VAC (Included) Shipping & Policies

✓ FREE SAME DAY / NEXT DAY SHIPPING
• Fast domestic dispatch to restore your home cooling immediately!
• International Buyers Welcome! (Please see note below).
✓ FREE 30-DAY RETURNS
• Unused motors in original packaging may be returned within 30 days for a full refund.
✓ Money Back Guarantee
• Buy with confidence. You are 100% protected.

Important Return Policy Note: To qualify for a free return, the item must be brand new, unused, and in its original packaging. Electric motors that show wire stripping, set screw marks on the shaft, or signs of installation onto a fan blade cannot be accepted for a full return.

International Buyers – Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying. Thank you for your understanding.

Questions? Please feel free to send a message. We reply quick!

lennox 12Y65 condenser fan motor, lennox 12Y6501, YSLB-220-8-B001, YSLB-220-8-B002, 100483-43, 100483-05, 100483-34, 100483-24, 49W86, 49W8601, 92W75, 92W7501, 97M51, 97M5101, 32M95, 32M9501, lennox 1/4 hp outdoor motor, 825 rpm condenser fan motor 208-230v, 48Y frame hvac motor, interlink 100483-43, allied air condenser motor, armstrong ac fan motor, ducane condenser fan motor, 10 mfd 370v run capacitor, outdoor ac fan motor replacement, hvac condenser fan motor 1/4hp, lennox 13acd fan motor, lennox 13acx motor, lennox 14acx condenser motor, nationwide oe direct replacement, ac fan motor 825 rpm 230v.
