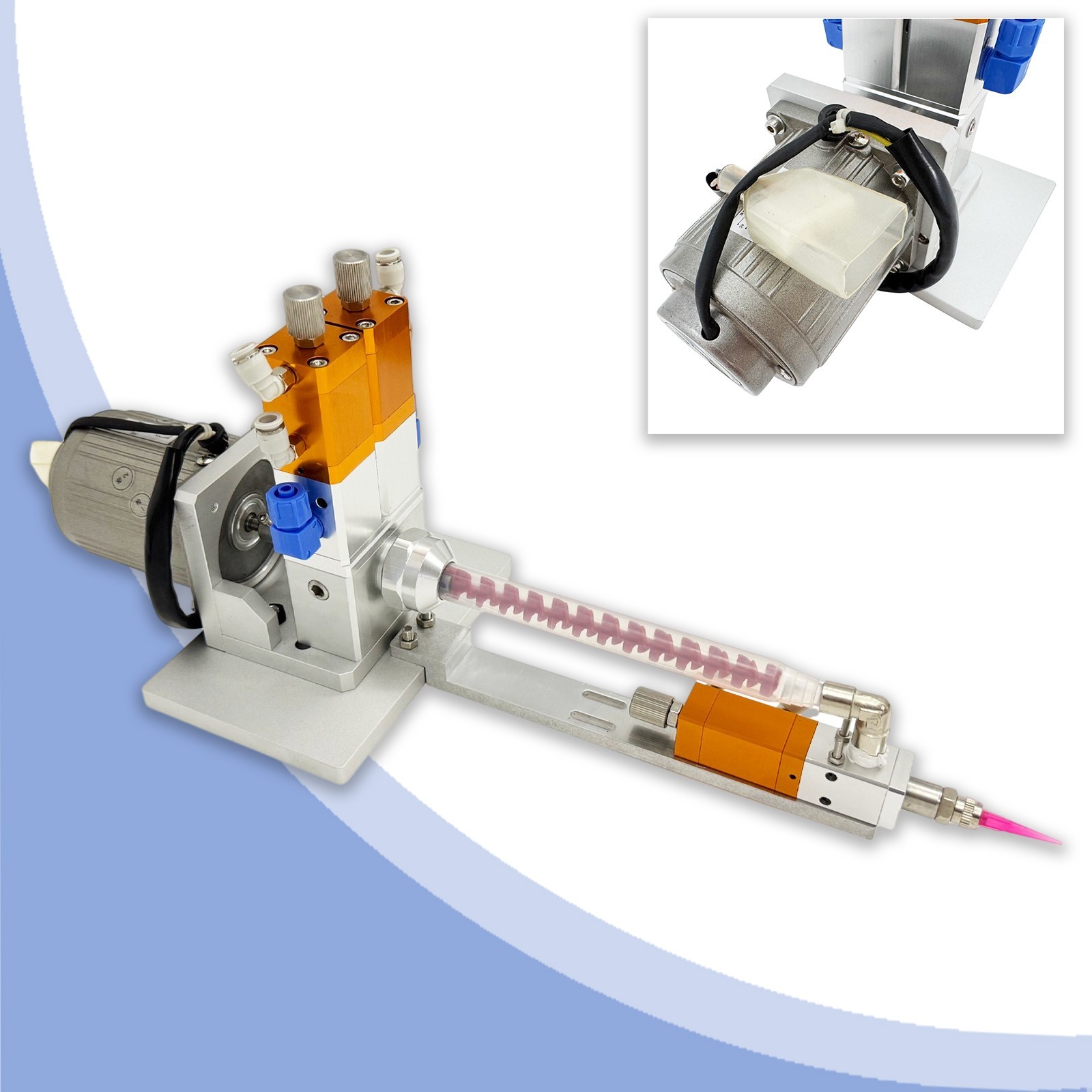

110V Anti-Drip Leak-Proof Stirring Valve AB Double-Liquid Dispensing Valve:
$545.20

110V Anti-Drip Leak-Proof Stirring Valve | Technical Documentation 110V Anti-Drip Leak-Proof Stirring Valve AB Double-Liquid Dispensing Valve Maisutseb® 📋 Product Overview

The electric dispensing valve is a professional valve for mixing double liquid uniformly and dispensing the mixture efficiently and accurately. It is made of high-quality materials, ensuring the exquisite structure and long service life.

The anti-drip structural design achieves precision dispensing operation and avoids environmental pollution. The dispensing valve effectively saves time and labor, reduces loss and improves dispensing efficiency.

It can be widely applied to the fields of electronic packaging, precision adhesion, new energy manufacturing, medical equipment, automotive electronics and more.

⚙️ Product Parameters Parameter Specification Model QLH-105F Voltage AC110V/60Hz Type Double-acting air cylinder backward suction Air cylinder Double-acting air cylinder Main material Stainless steel + POM + aluminum alloy anodizing Operation viscosity 1-1,000,000cps Minimum output amount 0.01ml Feeding pressure <300kg Size of feeding inlet 1/8’’npt(f) Operating speed <600/min Output pressure adjusting range 0-0.06mpa Product size 44*15*18cm (17.3*5.9*7.1 inches) Net weight 3.2kg (7.1LBS) ✨ Features & Advantages Precision Dispensing

Uniform dispensing, free of drip leakage, high controllability of dispensing operation and waste reduction.

Leak-Proof Design

Uniform dispensing, free of drip leakage, high controllability of dispensing operation and waste reduction.

Dual Channel Control

Double channel independent control, high mixing precision and stability, adapt to multiple proportions.

High-Quality Motor

High-quality motor, stable operation, provide stable driving force, high durability and long service life.

Speed Control

Dispensing speed regulation and control are quick and convenient, and connection is easy.

Secure Mounting

Good fixing and supporting effect, high reliability and practicability, firm and durable.

The dispensing valve is crafted with high-quality stainless steel and aluminum alloy materials and subjected to precision CNC lathe machining, so it has the advantages of exquisite structure, high precision, wear and corrosion resistance and long service life.
The dispensing operation is precise, the dispensing valve can make a quick response to backward suction, glue is discharged evenly, no glue drips, and the glue cannot be drawn.
The dispensing valve is driven by air compression and is of a fluid sealing structure, replacement of sealing pieces can be reduced, the valve can work efficiently, the cost is greatly saved, the loss is reduced, and maintenance is convenient and quick.

📖 Operation Method A. Preparation before operation

Read the instruction manual: Before operation, please carefully read the product operating instructions.
Check the appearance: Check whether the appearance of the electric valve is damp. If it is damp, it needs to be dried. If other problems are found, they should be dealt with in a timely manner. Do not operate the valve with faults.
Confirm the flow direction: Clearly determine the flow direction of the medium and check the valve opening and closing signs.
Long-term shutdown inspection: For the electric device that has stopped for 3 months or above, be sure to check the clutch before starting, confirm that the handle is in the manual position, and check the insulation, steering and electric circuits of the motor.

B. Starting and Running

Connect the power: Connect the external power supply, turn on the power switch, and the indicator light will be on.
Select the mode: Local control: Turn the switch to the RUN position, the motor will rotate. Control the motor speed through the knob at the bottom of the SPEED CONTROL.
Execute the operation: Press the \"on\" or \"off\" button to start the valve. When the valve is fully opened or closed, it will automatically stop working.
Adjust parameters: Adjust the discharge volume to the desired setting (such as a minimum of 0.01ml) according to the actual needs.

C. Operation completion

Reset: After successful operation, Adjust the speed control knob (if applicable) to the minimum position, set the timer (if applicable) to \"zero\", then turn off the power switch and cut off the power.
Cleaning: Wipe the mixing rod clean, and there should be no water droplets or dirt residue on it.

⚠️ Attention

Operation monitoring: When the valve is operated on the site, the valve opening and closing indication and valve stem running condition should be monitored, and the valve opening and closing degree should meet the requirements. In the process of opening and closing the valve, if the signal indicator light has wrong indications or the valve makes abnormal noises, the machine should be stopped for inspection in a timely manner.
Stroke control: When the valve is fully opened or fully closed for the first time after the stroke and over-torque controller is set, attention should be paid to monitoring its control over the stroke. If the machine does not stop when the valve switch reaches the position, it should be manually stopped immediately.
Close in place: When the valve is operated on the site to be fully closed, the electric valve closing can be stopped before the valve is closed in place, and a micro motion can be used to close the valve in place.
Power management: After successful operation, it is recommended to turn off the power supply of the electric valve.
Special operation: Multi-valve operation: When multiple valves are operated simultaneously, attention should be paid to the operation sequence, and the production technological requirements should be met.
Ball valves, gate valves, globe valves and butterfly valves can only be fully opened or fully closed when operated, and are strictly prohibited from being used for regulation.
Maintenance safety: Before cleaning or inspecting the electric valve, be sure to disconnect the power supply connected with the valve to be inspected.

🖼️ Product Display 📦 Item Number (057189)

1 x Electric Anti-drip Dispensing Valve 110V

You can make order with no worry.

Any concern just feel free to let us know, we\'ll reply in 24 hours in normal condition.

Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.

Warranty: 6 months\' warranty for the machines, not for the consumables.

We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
