10pcs TIP122 NPN Transistor Darlington Complementary 100V 5A Amplifier TO-220 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

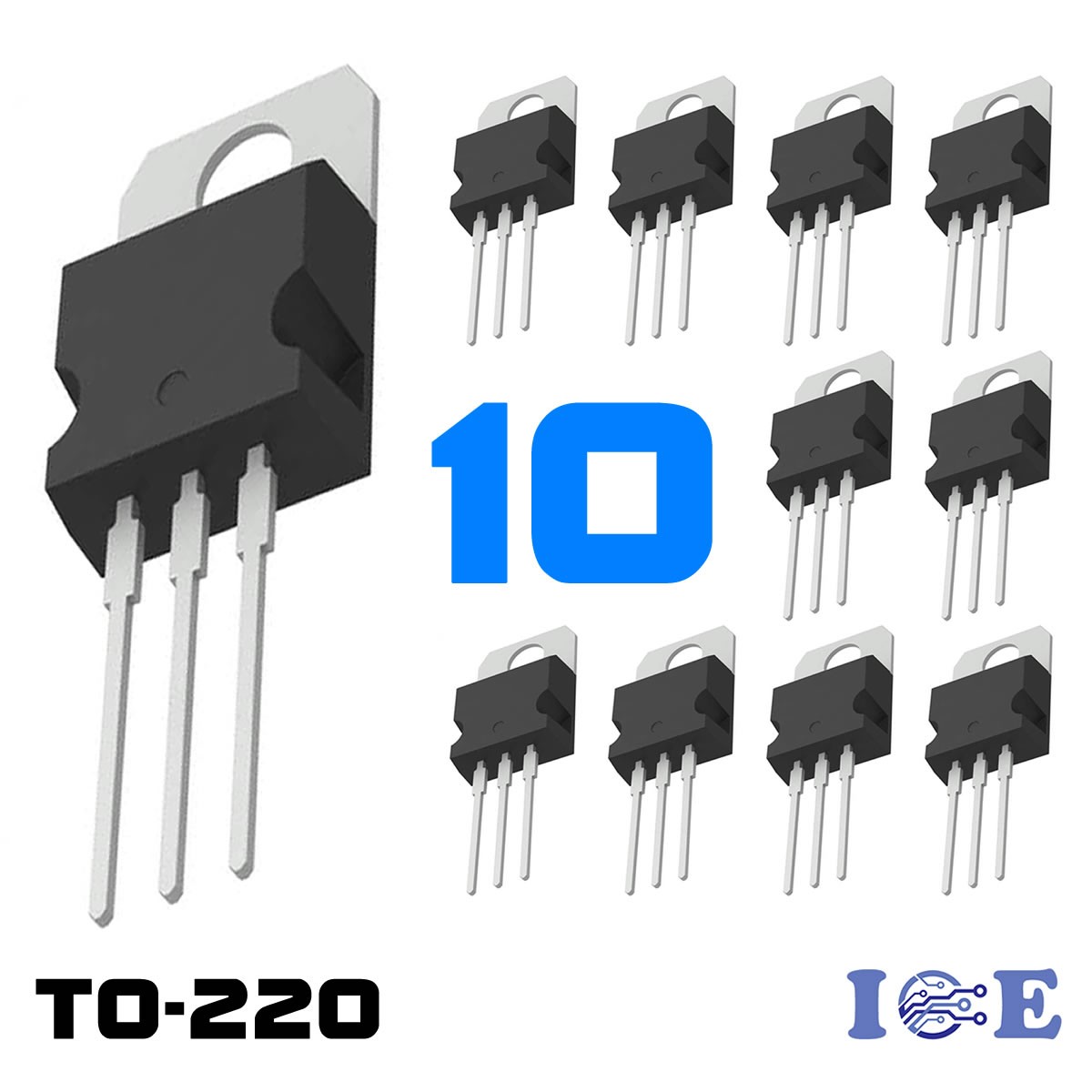

10pcs TIP122 NPN Transistor Darlington Complementary 100V 5A Amplifier TO-220:
$11.26

Manufacturer Part No TIP122
RoHS Compliance Yes
Package / Case TO-220
Current Rating 5A
Voltage Rated 100V
Transistor Type NPN
Features Darlington TransistorsPackage Included:
10 x TIP122 NPN 100V 5A DIP Power Darlington Transistor for General Purpose Amplifier TO-220

---

---

---

10pcs TIP122C Transistors New Genuine ST Micro Shipped From the USA

$9.99

---

10pcs TIP122 NPN Transistor Darlington Complementary 100V 5A Amplifier TO-220

$9.40

---

10pcs TIP122 NPN Transistor Darlington Complementary 100V 5A Amplifier TO-220

$11.26

---
