10PCS TIP3055 Power Transistor NPN 60V 15A TO-247 Bipolar For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

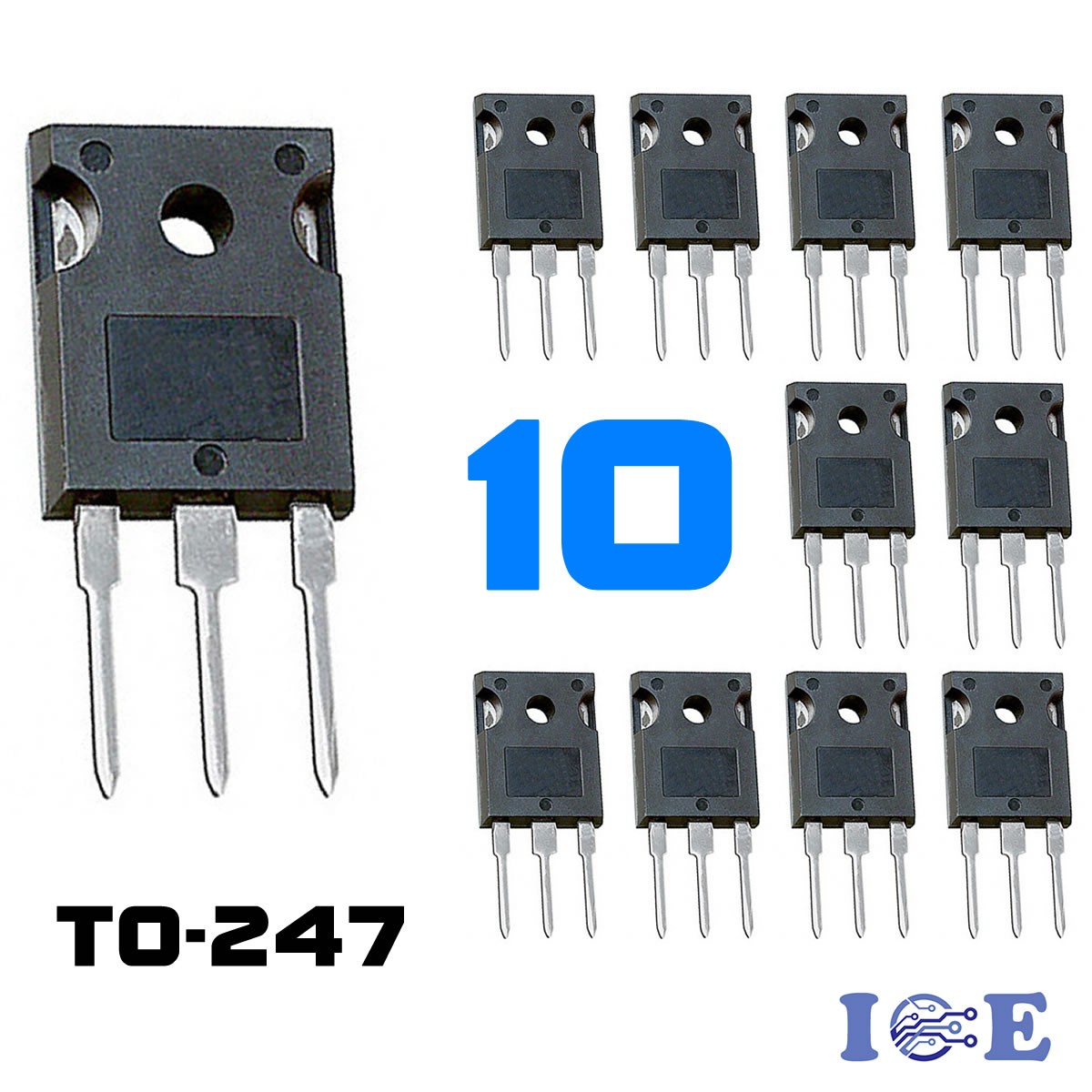

10PCS TIP3055 Power Transistor NPN 60V 15A TO-247 Bipolar:
$10.96

Features
■ Low collector-emitter saturation voltage
■ Complementary TIP2955 transistorsApplications
■ General purpose
■ Audio AmplifierPolarity: NPN
Maximum Collector Power Dissipation (Pc): 90 W
Maximum Collector-Base Voltage 'Vcb': 100 V
Maximum Collector-Emitter Voltage 'Vce': 70 V
Maximum Emitter-Base Voltage 'Veb': 7 V
Maximum Collector Current 'Ic max': 15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Noise Figure, dB: -
Package:TO-247Package Included:
