1000lb Livestock Scale Kit for Hogs Goats Sheep Alpacas Pigs DIY scales:
$215.00

LP7517-VSCK-1K kit for 4H 0-1000 lb capacity scale kit with a basic LP7517E battery and AC adapter powered indicator. Great for vet scale small farm scale for Hogs, Goats, Sheep and Alpacas. Build your own scale with your own material that you have SAVE MONEY.0.2 or 0.5 lb accuracy that you able to change on the spot for weighing smaller animals. Recommended Platform size not larger than 8ft long and 2-3ft wide, as load cell cables are only 54 inch long

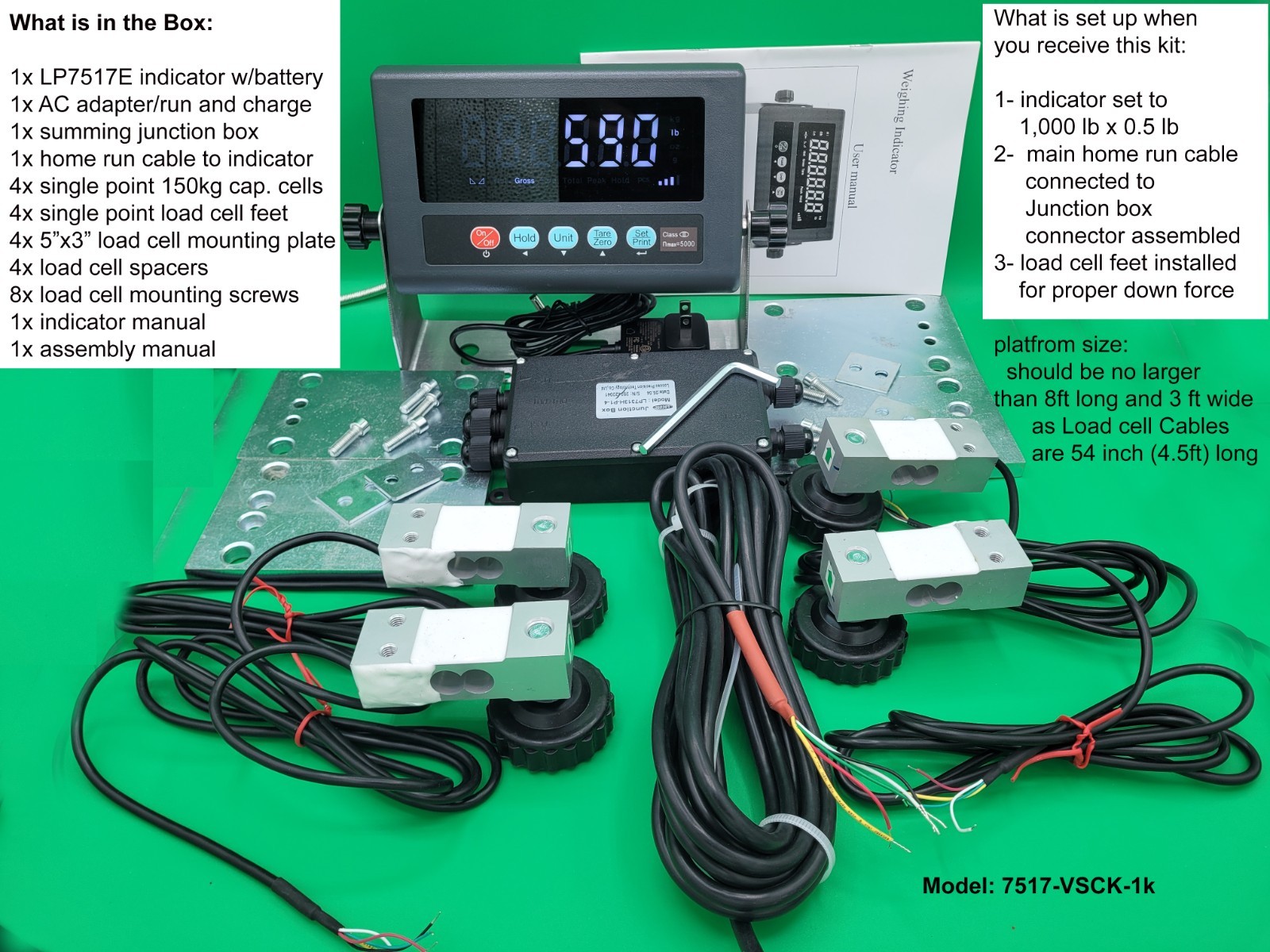

Kit includes the following:

(4) 330 lb capacity load cells LP7168 model with 4 conductor cable 4.5ft (54 inch) long,

(4) Threaded mounting plates, with spacers and screws to mount the load cells

(4) Adjustable feet,

(1) Excitation trim summing Junction box ABS housing and screw in terminals,

(1) LP7517E Digital Weight Indicator with quick disconnect cable standard 5 pin indicator compatible with ALL Locosc 5 pin indicator models internal battery and AC adapter included.The indicator features large easy to read Blue Display digital readout in either pounds (lbs) or kilograms (kg). Lock-on feature locks onto the animal's weight, also standard weighing, peak hold weighing is selectable in set up menu. you can also press hold button on the indicator to see locked weight.

Load cells will come feet screwed into them to make sure load foot will be on the correct side. Install the load cells, connect the load cell cables to the summing box.

mounting plate is 5 inch long x 3 inch wide x 3/8 inch thick. Mounting holes to your fabricated frame is also 3/8 inch diameter. Buy screws according to your used material. Wood = wood screws, metal use alloy screws with lock nuts etc.

after assembly calibrate 2 steps C05 for Zero and C06 for Span recommended weight is 50-100 lbs (could be feed bags) and you're ready to weigh. The ZERO button allows you to compensate for manure, mud, or snow build-up on the scale surface.

LP7517E indicator Keys as follow:

UNITS (lb/kg), TARE/ZERO, ON/OFF, SET/PRINT, HOLD Free Shipping in the US. We do not ship outside the United States.

you can look at our Youtube channel for calibration on LP7517 model.

We are selling on for over 23 years. we do scales nothing else.
