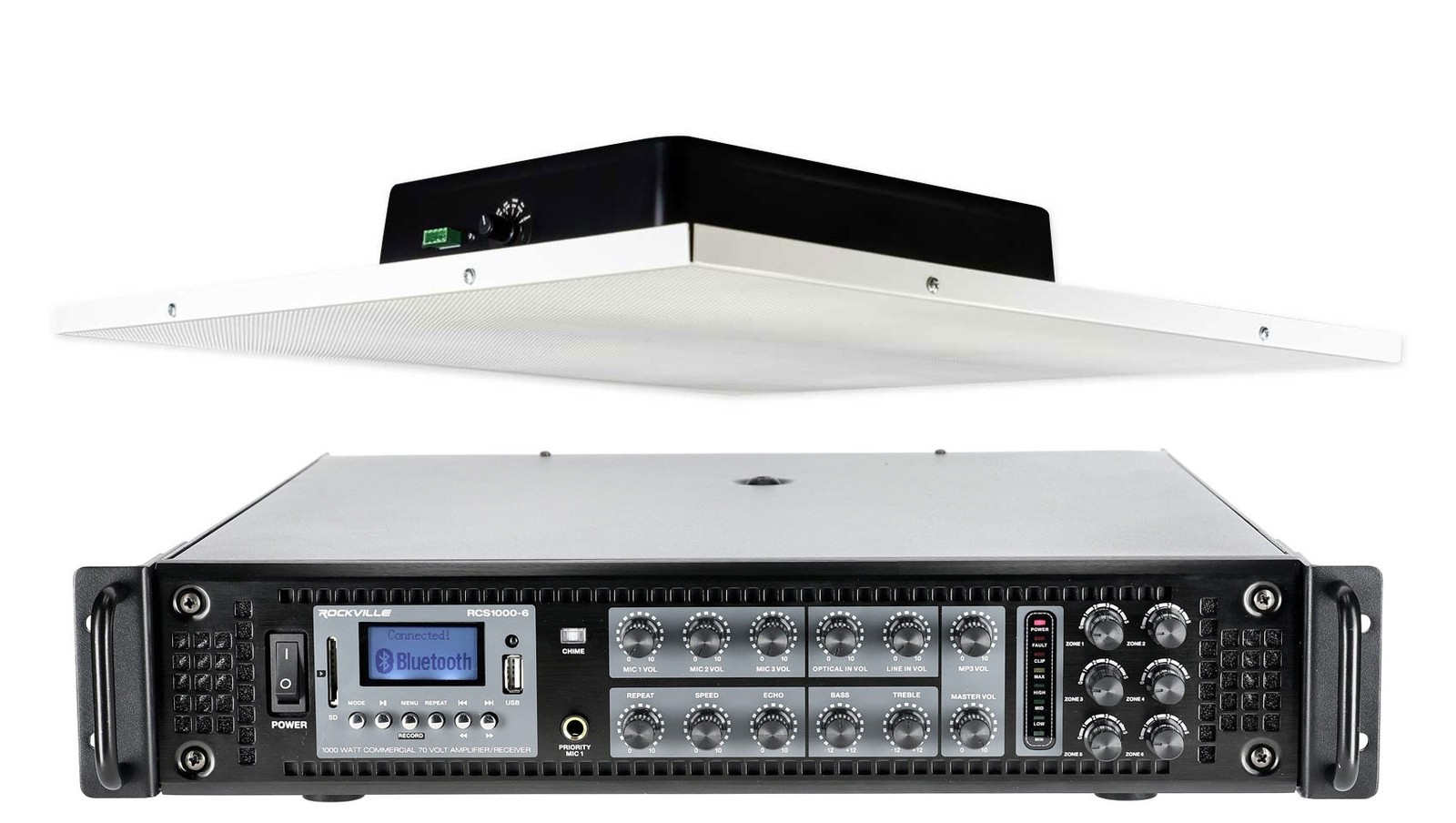

100 Rockville DCS8T 70V Commercial 2' X 2' Drop Ceiling Tile Office Speakers+Amp for Sale

Metal grill

Multi-tap options: 10W, 5W, 2.5W, 8 Ohm

Low profile mounting depth (3.9")

Sensitivity: 91 dB

105° dispersion

1" Voice coil

10 oz. Ferrite Magnet

Frequency Response (-10 dB): 170 Hz - 17 kHz

70V Power Options:

10w
5w
2.5w
1.5w

8 Ohm power handling:

30w RMS

What is 70 volt?
70 volt systems are the number one choice for applications where you want to install many speakers With 70 volt there are a lot of advantages over 8-ohm systems.One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 150 watts and you can install speakers that total around 120 watts. It does not matter if it is 12 speakers that are 10 watts each or 24 speakers that are tapped at 5 watts each.You always want your 70 volt amp to have at least 15 to 20% more power than the combined watts your speakers are tapped at.

When we say the word tap, we are referring to the switch that is located on the rear of these speakers where you can select how many watts you want the speaker to play. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space.In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, sub-woofers, etc.70 volt systems allow you to run very long lines of speaker wire without signal loss.This is ideal when running long speaker leads.

The wiring is simple.You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp.You do not have to worry about impedance.The power is constant.

What's In The Box:

Amplifier
Remote
Rack Mount Ears
Power Cable
FM Radio Antenna
Set-up and how-to training video so you can install it yourself

This RCS1000-6 outputs 1,000 watts at 70 volt or 100 volts and the power can be split up into 6 zones. (Most professionals recommend you not exceed 90% of the amp power, so we recommend your speakers watts not to be more than 900 in total on the taps). Each zone can output up to 300 watts and all zones should not exceed 1,000 watts. If you want all 1,000 watts into a single zone you can use the direct outputs. If you want to use multiple zones then you can use the zone outputs. For example you can have zone 1 with 300 watts, zone 2 with 300 watts, zone 3 with 200 watts, zone 4 with 50 watts, zone 6 with 50 watts. This would total 900 watts which is less than the 1,000 watts the amp can produce and its also not more than the 300 watts output each zone can produce. Wiring is totally simple as well. You just wire all the speakers in parallel from one to the next. This product will include a video URL in the box to train you how to use it.

With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements. The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. We also added an optical input so you can easily integrate a TV, projector, or other digital device.

Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system. If you want a volume control in each room, then you can buy any of our wall mount 70 volt volume controllers such as our VOL70200.

The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.

Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. The RCS1000-6 makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and ¼" to make this amplifier more universal and user friendly. With our unique design, helpful how-to videos, and our great tech support team you can feel confident in your DIY ability when installing our commercial system!

Features:

Rockville RCS1000-6 1000 Watt commercial/restaurant amplifier / receiver
19" rack mountable (removable rack brackets)
Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm
70/100 volt RMS Power: 1000 Watts
6-Zones – each zone has a separate volume control
Operation: Master output with 1000 watts or 6 zone outputs totaling 1000 watts with a max of 300 watts per a single zone
Built in Bluetooth audio streaming
FM radio tuner
USB input to play audio stored on a thumb drive (32gb max)
SD card slot to play music stored on an SD Card (32gb max)
Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
Echo control for the mic inputs with speed and repeat adjustments
Built in clipping limiter to protect the amp and speakers
Bass and Treble control
Chime button for making announcements
Top quality aluminum panel with industrial grade knobs
5 segments signal level indication
Built in cooling system keeps component cool at all times

Inputs and Outputs:

(2) Sets RCA AUX inputs
(3) Mic inputs
Optical Input
RCA Line output
100V speaker red positive speaker output terminal
70V speaker red positive speaker output terminal
8 Ohm red positive speaker output terminal
Shared negative speaker output
Power Requirements: 120V / 50-60Hz
A Weighted Signal to Noise (@ 1W) -55.6dBA
A Weighted Signal to Noise (referenced to full 4 ohm power) -87.3dBA
Frequency response: 40Hz to 24.0 Khz
Frequency Response VS THD+M (worst case across normal bandwidth 5W @ 8 Ohms: 0.17%
Weight: 45.8 lbs
Dimensions: 19"x18.1"x4"

What is 70 volt?

70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this 1,000 watt / 70 volt amplifier, you can install speakers that total around 1,000 watts. It does not matter if it is 45 speakers that are 20 watts each or 90 speakers that are tapped at 10 watts each. You always want your 70 volt amp to have at least 10% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads. The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.
If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS1000-6 is your best choice!
