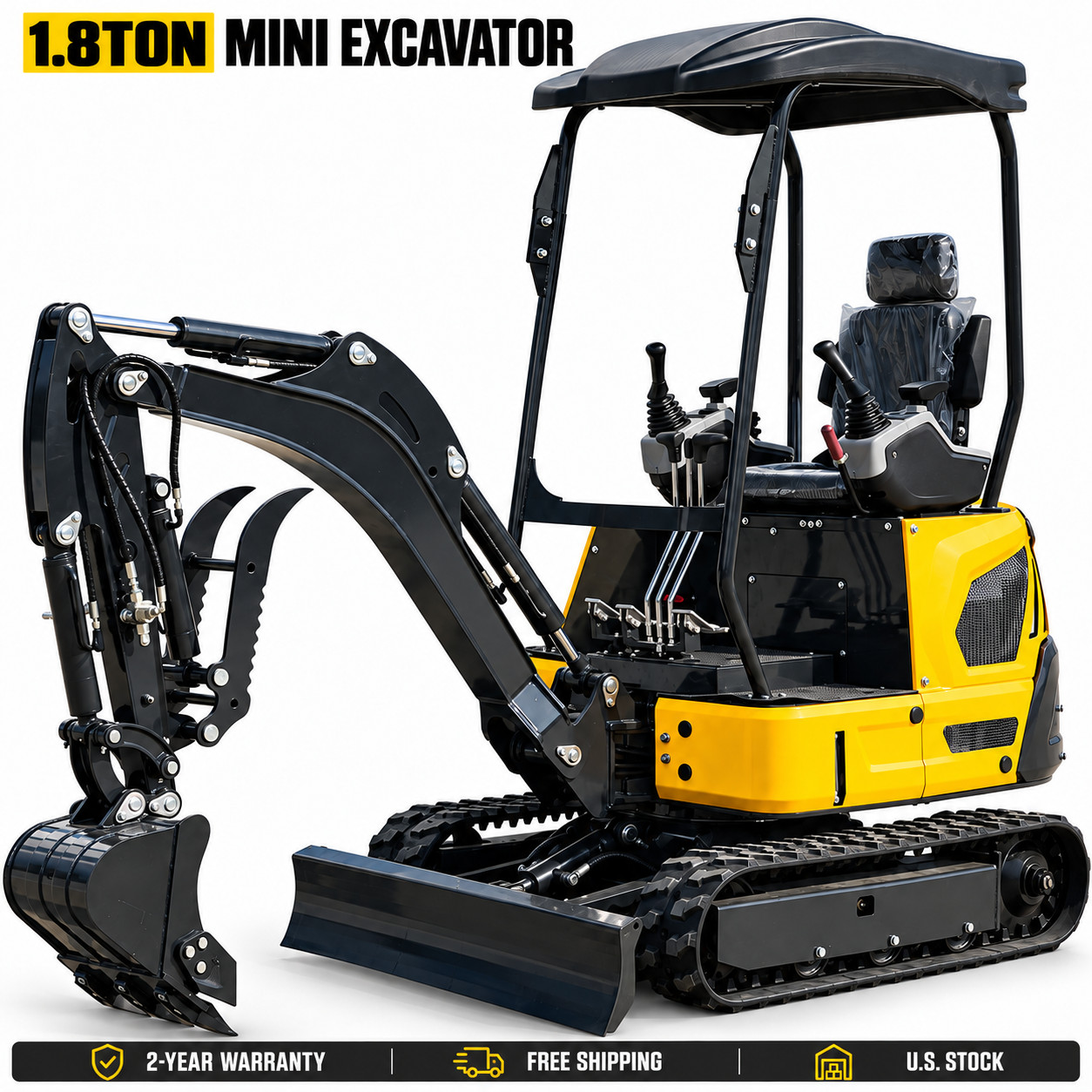

1.8 Ton Mini Excavator Kubota D722 EPA Diesel Side Swing Pilot Crawler Digger:
$8700.10

COMPACT EQUIPMENT / DIESEL EXCAVATOR 1.8-METRIC-TON CLASS • ZERO TAIL SWING Compact footprint.
Serious digging capability.

A versatile mini excavator powered by a Kubota D722 diesel engine, with hydraulic pilot controls, offset boom swing and a hydraulic thumb included.

KUBOTA D722 ENGINE HYDRAULIC PILOT CONTROL 400 MM BUCKET + THUMB 13.97 hp 10.2 kW DIESEL POWER 74.8 in MAX. DIGGING DEPTH 43.31 in OVERALL MACHINE WIDTH 45° / 55° LEFT / RIGHT BOOM SWING DESIGNED FOR THE WAY YOU WORK Capability where space is limited.

From landscaping and fence-line trenching to property improvements and small construction jobs, this compact machine combines maneuverability, responsive hydraulics and convenient service access.

01 / COMPACT MANEUVERABILITY Work closer. Turn with confidence.

The zero-tail-swing design keeps the rear counterweight within the track width as the upper structure rotates through 360°. A boom swing of 45° left and 45° right helps position the bucket for offset digging beside walls, fences and other boundaries. Always allow clearance for the boom, attachment and working area.

02 / KUBOTA DIESEL POWER A proven name at the heart of the machine.

Powered by a Kubota D722 diesel engine rated at 10.2 kW (13.7 hp), this compact excavator brings dependable diesel power to trenching, landscaping and property maintenance. Its compact dimensions also make transport planning easier.

03 / HYDRAULIC PILOT CONTROLS Smooth inputs. Precise positioning.

Hydraulic pilot-operated joysticks and foot pedals provide responsive control for digging, travel and attachment positioning. The hydraulic system incorporates a dual gear pump, main control valve and travel drive motors, with a dedicated swing motor, swing bearing and center swivel joint.

04 / STEEL BODY & HEAVY-DUTY BASE Built around a solid foundation.

An all-steel body, reinforced heavy-duty undercarriage and wide chassis layout provide a durable platform for everyday work. Wear-resistant rubber tracks support traction and maneuverability, while the streamlined body keeps the machine compact.

05 / BUCKET & HYDRAULIC THUMB Dig, grip and handle more.

A 400 mm (15.7 in) bucket and hydraulic thumb are included for digging and handling suitable materials. The hydraulic system supports compatible powered attachments for breaking, ditch cleaning and auger work. Additional attachments are sold separately; confirm mounting dimensions, hydraulic flow and pressure requirements before ordering.

06 / DEDICATED COOLING Separate cooling for demanding work.

Separate engine and hydraulic-oil cooling circuits, including a dedicated hydraulic-oil cooler, help manage operating temperatures during extended use. A protected fuel tank, fluid-level indicators and hydraulic gauges support routine checks, while the hydraulic valve assembly is designed for reliable fluid control.

07 / FOUR-POST SUN CANOPY Shade with a reinforced structure.

A four-post canopy with thickened support pillars provides overhead shade and a sturdy structure around the operator station. Its reinforced supports are designed to resist deformation during everyday use.

08 / PROTECTED HOSE ROUTING Purposeful details from boom to base.

An upper-mounted boom-cylinder layout supports digging operation, while concealed hydraulic hose routing helps shield lines from abrasion and incidental contact. The clean routing also keeps the machine exterior tidy.

09 / UPGRADED OPERATOR SEAT Comfort throughout the workday.

A resilient padded seat with integrated headrest and back support helps make extended operating sessions more comfortable. A thickened reinforcement plate supports the seat structure, and sound-insulating material beneath the seat helps reduce transmitted noise.

10 / DIGITAL INSTRUMENT PANEL Key machine information at a glance.

The upgraded armrest console includes a clear digital display for voltage and engine temperature. Equipment fault warnings, a low-fuel alert and an engine preheat indicator help the operator monitor machine status.

11 / ACCESSIBLE SERVICE POINTS Open up. Inspect. Get back to work.

An unlock-and-lift rear cover and a flip-up seat provide two access points for inspection and maintenance. Convenient access to service areas helps simplify routine care and day-to-day checks.

One machine. More ways to work.

Dig with the included bucket. Grip with the included hydraulic thumb. Expand your capabilities with compatible optional hydraulic attachments.

MACHINE DATA Specifications at a glance. Specification Details Engine Kubota D722 diesel Rated power 10.2 kW / 13.97 hp Control system Hydraulic pilot control Operating weight¹ 1,800 kg / approx. 3,968 lb (4,000 lb class) Machine weight¹ 1,250 kg / approx. 2,756 lb Overall dimensions (L × W × H) 2,550 × 1,100 × 2,200 mm / 100.39 × 43.31 × 86.61 in Maximum digging depth 1,900 mm / 74.8 in Maximum digging height 2,820 mm / 111.0 in Maximum dumping height 2,050 mm / 80.7 in Maximum digging radius 3,050 mm / 120.1 in Minimum swing radius² 1,450 mm / 57.1 in Maximum digging distance² 2,300 mm / 90.6 in Maximum blade lift 180 mm / 7.1 in Maximum blade digging depth 210 mm / 8.3 in Track width 230 mm / 9.1 in Stated gradeability³ 30° Upper structure rotation 360° Boom swing 45° left / 55° right Travel speed 0–2 km/h / 0–1.24 mph Hydraulic oil tank 18 L / 4.76 US gal Diesel fuel tank 16 L / 4.23 US gal Included bucket width 400 mm / 15.7 in Color Yellow

Metric specifications are the reference values; U.S. equivalents are rounded.

¹ Operating weight and machine weight are supplied as separate figures. Configuration and measurement basis should be confirmed before arranging transport or lifting.

² Digging radius, digging distance and minimum swing radius are separately stated measurements. Confirm their measurement reference points if clearance or reach is critical.

³ Gradeability is a stated specification, not a safe operating slope for every condition. Follow the operating manual and account for ground conditions, load and attachment position.

INCLUDED WITH YOUR MACHINE Equipment & essentials. 01 1.8T-class mini excavator 01 400 mm digging bucket 01 Hydraulic thumb 01 Toolbox 01 Maintenance manual DELIVERY & OWNERSHIP Support before and after delivery. U.S. delivery

Free delivery to your order address. Estimated arrival is approximately 3–7 days, subject to destination, carrier scheduling and delivery access. Refer to the delivery estimate shown in this listing.

Unloading is not automatically included. Due to the machine’s size and weight, contact us through before ordering if you require unloading assistance so availability and any applicable arrangements can be confirmed.

Warehouse pickup

Inspection and pickup available in Illinois, ZIP 60188. Contact us through to arrange a visit and pickup details.

For warehouse pickup, the shipping portion will be deducted from the total price. Confirm the adjusted amount and pickup arrangements through before completing your order.

1-year manufacturer warranty

The machine includes a one-year manufacturer warranty. For issues covered during the warranty period, we will coordinate a solution and cover the related replacement-parts and shipping costs.

Lifetime technical support is available for this machine. Contact us through for troubleshooting and service assistance.

Returns & problem resolution

Our seller return policy accepts returns for quality-related issues only; change-of-mind returns are not offered. If a problem occurs, contact us through so we can provide parts, technical assistance or an appropriate solution at our expense for covered issues.

This statement does not limit any rights or remedies available under applicable policies or law. Refer to the return settings in this listing for the applicable return process.

Checked before dispatch

Each machine is tested before shipment and securely packaged. Pre-shipment photos or video will be provided so you can review the machine before dispatch.

Inspect the outer packaging carefully when the shipment arrives. Document any visible damage and contact us promptly through if you have concerns.

Please note

Minor cosmetic marks or scratches may occur during long-distance transport or unloading. Such marks should not affect machine function; report any functional damage promptly.
Color may vary slightly due to lighting and display settings.
Dimensions and specifications are based on manual measurements and testing; slight variations may occur.
Only the items listed in the package contents are included. Optional attachments require compatibility confirmation.
