1/2\" Eaton Aeroquip FD45-1005-08-10, 1004-08-10 303 Stainless Steel Couplers:
$79.99

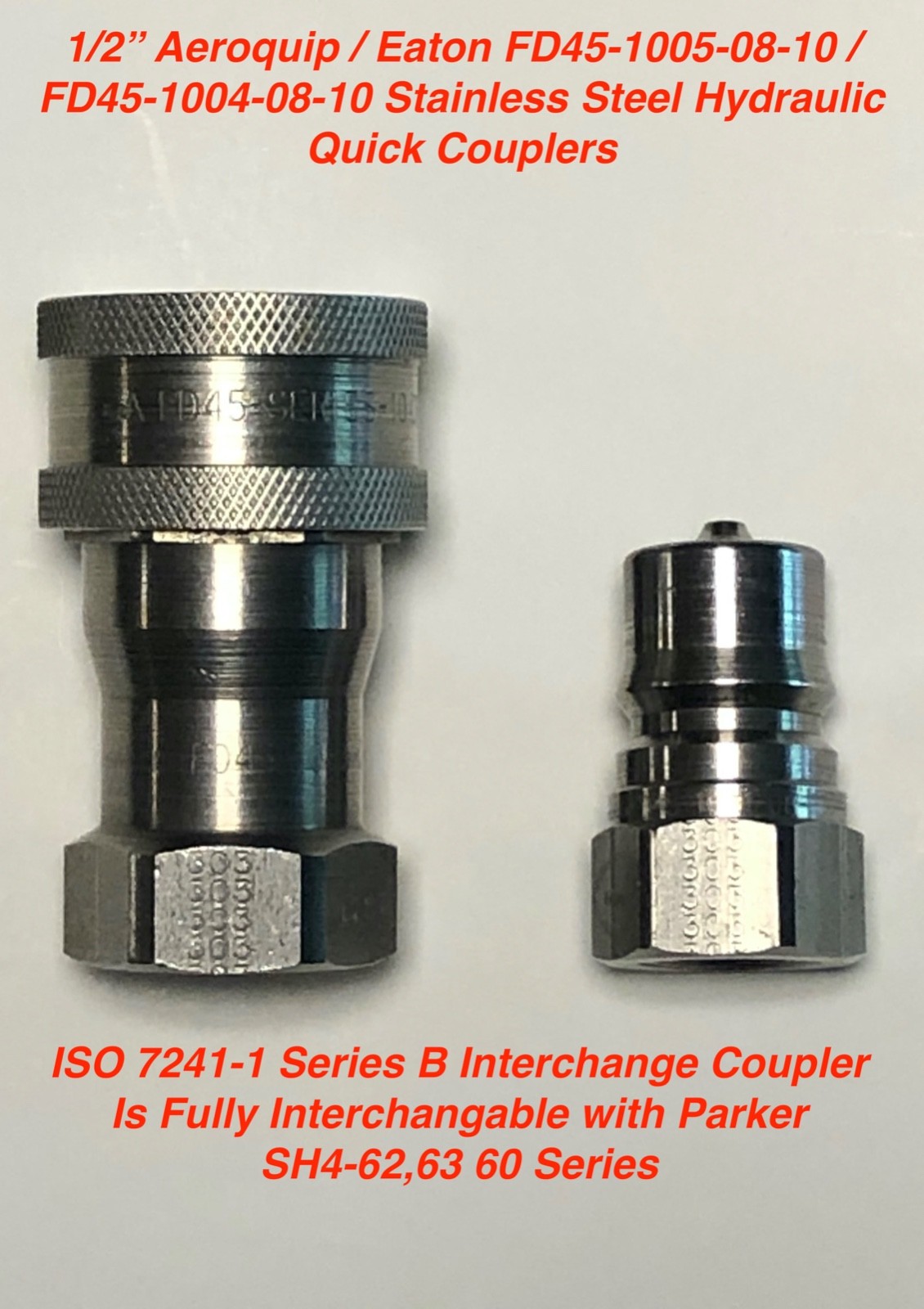

This Listing Is For Sets Of Eaton Aeroquip FD45 Series 303 Stainless Steel Hydraulic Disconnects That Consist Of (1 Female Socket, And 1 Male Nipple. These Are 1/2\" General Purpose Hydraulic Quick Couplings. This Is A VeryVersatileQuick Disconnect And Exchanges Perfectly With Parker SH4-62, 63 Stainless Steel 60 Series As Well As Others (See Red Interchange Information Below). These Fittings Are Widely Used Across The Hydraulic And Liquid Transfer Spectrum. The Dual Poppit Valve System Provides Positive Start And Stop Of Media Flow At Both Fittings. When The Male Plug Is Inserted Into The Female Socket, Flow Commences. When The Fittings Are Disconnected, The Flow Of Media Ceases From Both The Source As Well As The Hose Or Machine Side.

These QuickCouplings ProvideBothConvenienceAndFunction When You NeedTo ConnectAndDisconnect Fluid Transfer Lines, Or Need To PerformMaintenanceOn Your Equipment,AndDon\'t Want The Mess OrLoss Of FluidSpillage.The Dual Shut Off System Seals Each End Of The Coupling And Nipple Immediately After The FittingsAreDisconnected.

SHIPPING NOTE: If somehow the price to ship via a chosen method is too expensive, seller will contract buyer to discuss using another shipping option that\'s cheapest for seller such as the protectorates or West Coast etc. This is a very rare occasion, but sometimes I have to shift gears on shipping due to rising logistics costs.

THESE AEROQUIP QUICK DISCONNECT FITTINGS ARE FULLY Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series \'HNV\', AND Stucchi Series IRB/IRBO/IRBX.

Note:Meets dimensional requirements of ISO 7241 Series B

Contact Seller With Any Questions You May Have Regarding These Fittings Or Their Function. I Look Forward To Hearing From You Soon.

IMPORTANT NOTE ON QUANTITY.....IF YOU NEED MORE UNITS THAN SHOW AS AVAILABLE LET ME KNOW.

PRODUCT TYPE

QUICK COUPLING FEMALE COUPLER

TYPE

FD45 SERIES

BODY SIZE

1/2\"

BODY MATERIAL

303 STAINLESS STEEL

PORTSIZE

1/2\" - 14

PORTCONNECTION

FEMALE NPTF

TEMPERATURE RATING

-40DEGTO +250DEGF

PRESSURE RATING

1,500 PSI

SEAL MATERIAL

NITRILE

INTERFACE

SERIES BISO7241-1

VALVE TYPE

POPPET

LOCKING MECHANISM

BALL

FLOWRATE

12 GPM

THIS SPEC INFORMATION IS DIRECTLY FROM THE AEROQUIP / EATON WEBSITE. won\'t allow me to include the LINK in the listing. I received a message from telling me to remove it.

IAPPRECIATE THE OPPORTUNITY TO SERVE YOU.
