(3PCS) TIP31A Power Bipolar Transistor, 3A, 60V, 1-Element, NPN, TO-220 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

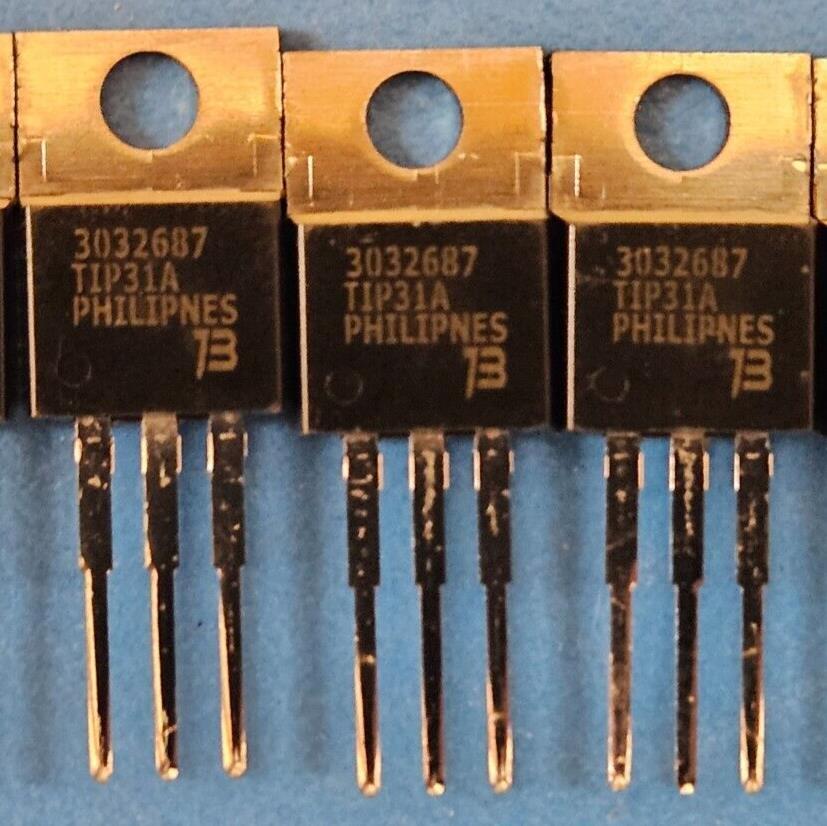

(3PCS) TIP31A Power Bipolar Transistor, 3A, 60V, 1-Element, NPN, TO-220:
$4.95

This listing is for (3PCS) of TIP31A by BournsMfr Package Description TO-220, 3 PINREACH Compliant YesStatus DiscontinuedCase Connection COLLECTORCollector Current-Max (IC) 3.0  ACollector-emitter Voltage-Max 60.0  VConfiguration SINGLEDC Current Gain-Min (hFE) 10.0JEDEC-95 Code TO-220ABJESD-30 Code R-PSFM-T3Number of Elements 1.0Number of Terminals 3Operating Temperature-Max 150.0  CelPackage Body Material PLASTIC/EPOXYPackage Shape RECTANGULARPackage Style FLANGE MOUNTPeak Reflow Temperature (Cel) NOT SPECIFIEDPolarity/Channel Type NPNPower Dissipation-Max (Abs) 40.0  WQualification Status Not QualifiedSub Category Other TransistorsSurface Mount NOTerminal Form THROUGH-HOLETerminal Position SINGLETime@Peak Reflow Temperature-Max (s) NOT SPECIFIEDTransistor Application SWITCHINGTransistor Element Material SILICONListing and template services provided by inkFrog

---

---

---

(3PCS) TIP31A Power Bipolar Transistor, 3A, 60V, 1-Element, NPN, TO-220

$4.95

---
