Hi,

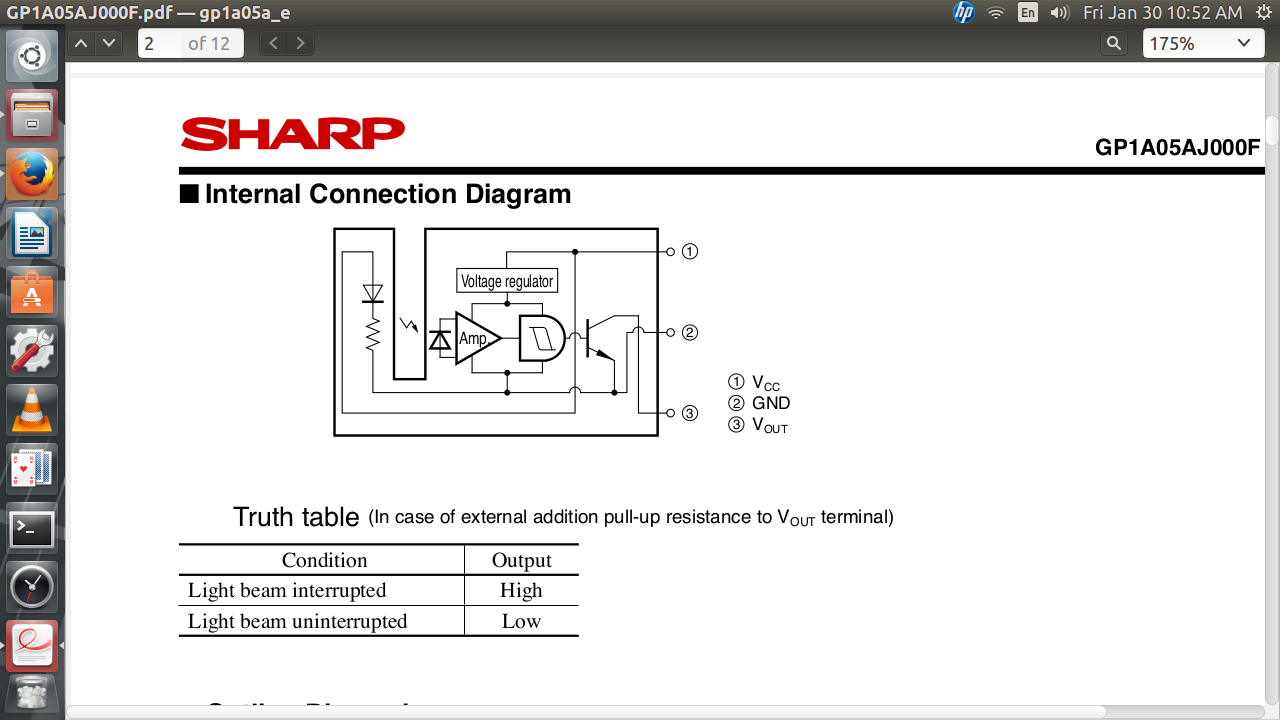

I have a photo interrupter for a treadmill that has failed. Unfortunately I have not had much luck finding a replacement, the motor speed sensor is a Sharp GP1A05. Please see the attached illustration. My question to the forum is, are the voltage regulator, amp, gate, and npn transistor available in one ic.
Thanks for your time.
Jim
Electronics Forum
Electronics Circuits & Projects discussion forum. Get help with electronics.
Photo interrupter help
Moderator: pebe
2 posts
• Page 1 of 1
Photo interrupter help
by stoney1 » Sat Jan 31, 2015 12:54 am
- Attachments
-
- GP1A05.png (135.46 KiB) Viewed 7878 times
- stoney1
- Posts: 1
- Joined: Sat Jan 31, 2015 12:36 am
Re: Photo interrupter help
by KMoffett » Sat Jan 31, 2015 11:18 pm
Never dealt with AliExpress (Alibaba)...but...[url]http://www.aliexpress.com/premium/sharp%25252dgp1a05..html?ltype=wholesale&isdl=y&SearchText=sharp-gp1a05.&src=sc&d=y&origin=n&productId=665065161&isViewCP=y&af=RelatedProducts[/url]
Ken
Ken
- KMoffett
- Posts: 190
- Joined: Sun Apr 13, 2014 3:41 pm
- Location: Minnesota USA
