uxcell DC 24V 28RPM Self-Locking Worm Gear Motor with Encoder and Cable:
$30.00

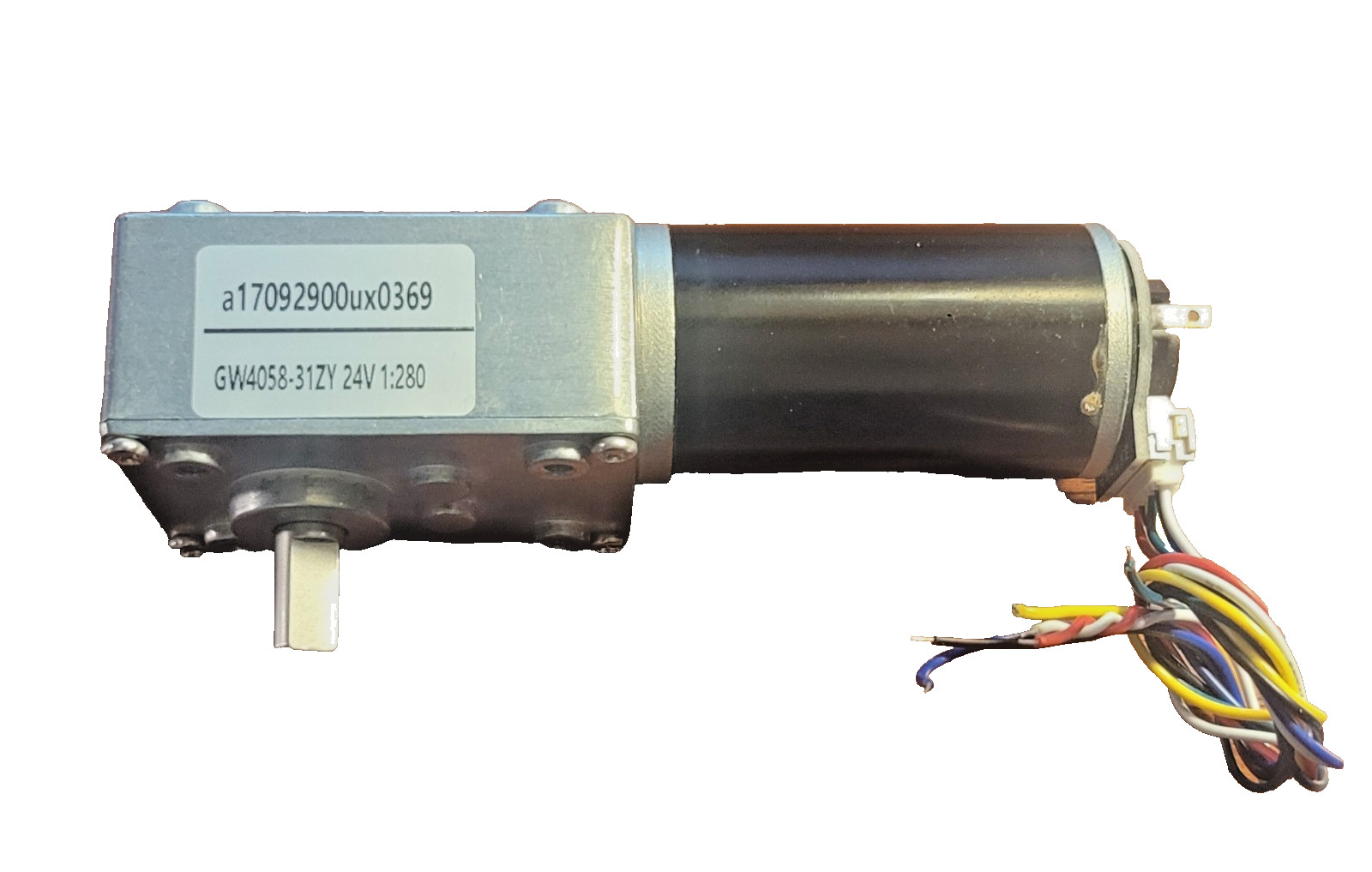

uxcell DC 24V 28RPM 50Kg.cm Self-Locking Worm Gear Motor with Encoder and Cable, High Torque Speed Reduction Motor.Description
DC 24V 28RPM 50Kg.cm Self-Locking Worm Gear Motor With Encoder And Cable, High Torque Speed Reduction Motor

Voltage: DC24V; No-Load Speed: 28rpm; Reduction rate: 1:280 ; Torque: 50Kg.cm(43.4lb.in).
Output Shaft Diameter: 8mm D-type, Output Shaft Length: 15mm.
Total Size(not include class=\"a-spacing-mini\" style=\"box-sizing: border-box; list-style: disc; overflow-wrap: break-word; margin: 0px;\">Application: Worm Gear Motor With Encoder And Cable, widely used for intelligence appliance, robots, Rocker arm camera, and Electric paper cutter.
Shaft rotation direction can be changed by changing the positive and negative wiring.

Specification:
Voltage: DC24V
No-Load Speed: 28rpm
Reduction rate: 1:280
Torque: 50Kg.cm
Error: ±10%
Wire Length: 20cm
Output Shaft Diameter: 8mm D-type
Output Shaft Length: 15mm
Total Size(not include shaft):40*36*125mm

Wirings:
Notice:
1. The yellow and green wires are the speed signal output line, and they can\'t be connected any power supply, or it will be burnt.
2. Positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V.
3. Control CW or CCW of motor by changing the positive and negative power supply of encoder (change Red Wire and White Wire connect)

Red Wire - positive power supply of motor(+)
White Wire - negative power supply of motor(-)
Black Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;voltage is3.3-5V)
Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V)
Yellow Wire - signal response (11 signals per motor turns a circle)
Green Wire - signal response (11 signals per motor turns a circle)
