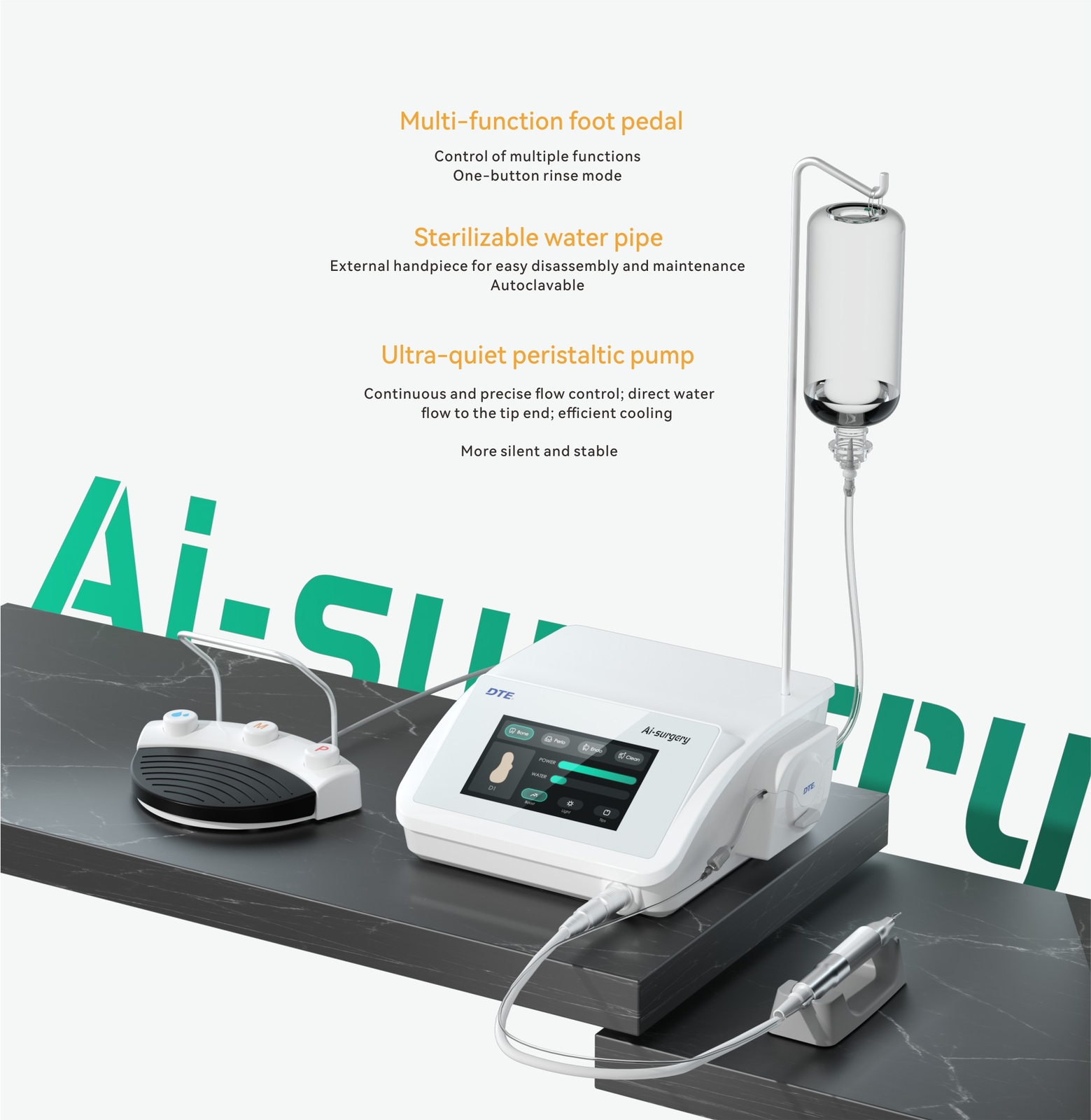

Woodpecker DTE AI Surgery Piezo Bone Surgical Motor Ultrasonic Cutter +14 Tips:
$4999.99

Installation of Woodpecker DTE Ai Surgery Piezo Bone Surgery

Intelligent and Powerful: Latest technology from Woodpecker DTE, providing dentists with a superbly reliable and safe ultrasonic surgical system.

Newly Upgraded

Efficient : Woodpecker Fourth generation of Piezo Bone Surgery, with greatly improved cutting efficiency than the third generation.
Intelligent : The intelligent system will automatically adjust to the most appropriate output power according the operation situation to avoid overheating
User-friendly : New operation interface, more convenient for doctors to use

Strong Power

No handpiece overheating thanks to : new enhanced handpiece , advanced sensing technology, smart control system
Smart control system : automatic identification of different bone quality and strenght to perform power adjustment, achieving the optimal output / easy and effort-saving for doctors / less noise at work

Extremely reliable

Mode selection : power varies as per different bone quality
One-touch enhancement : exclusively featured one-touch power enhancement
Water flow adjustment : different water flow adjustment levels to choose from
Easy rince : after each use, rinse the pipeline via control of foot pedal

Clinical application: Minimally invasive tooth extraction, Intralift, Sinus lift, Alveoloplasty, Apical cyst extraction, Crow extension, Crest splitting, etc.

Micron Cutting: The vibration amplitude of tip is between 20-100µm.The minimum surgical incision is 3.5mm long, 0.5mm wide, which will help with small operating area and fast postoperative recovery.

Selective cutting with no injury to soft tissue: For soft tissues (neural, blood vessels and mucous membranes, etc.) there is no cutting effect, which can protect the vascular nerve of the operation area to a large extent, greatly reducing the risk of injuring soft tissues.

Cold Cutting Mode: Ultrasonic technology produces very little heat while cutting. And iced water can quicly cool the tip and ensure the temperature below 38°C. At the same time, the water spray flushes the wound during operation, bringing no bleeding and enabling clear vision of operation area which makes it easy to operate.

High-performance Handpiece: Optimized handpiece with stronger sealing technology. High temperature cooking disinfection causes no loss of performance. High-brightness LED brings clearer operating vision. Bringing doctor better clinical application experience.

Cutting Mode: Under cutting mode, according to the bone density, adjust power and water volume. The power levels are divided into 7classes.

D1 : level9-10 - Class I Bone (suitable for bone with high bone density / big cortical bone)
D2 : level6-8 - Class II Bone (suitable for bone with high bone dentisty / large cortical bone)
D3 : level3-5 - Class III Bone (suitable for bone with uniform bone density / good cortical bone)
D4 : level1-2 - Porotic bone (suitable for bone with low bone density / poor cortical bone)

Different bones respectively match10 power levels, avoiding over power output and improving safety and stability.

Periodontal mode:Under teeth mode, the power and water volume are adjustable.
Endodontic mode: Under teeth mode, the power and water volume are adjustable.
Cleaning Mode: Under cleaningf mode, step on foot pedal for 3s to confirm cleaning, then the main unit can automatically complete pipe cleaning for 25s. After each treatment, please clean the waterway (include pump line and handpiece).

Dimension : 276mmx267mmx110mm
Water flow : 25-110ml/m
Mains voltage : 100-240V - 50Hz/60Hz 170VA
Working frequency : 24-36KHZ
Weight : 2.8KG

Kit Contains:

1 x Main Unit, 2 x LED Handpieces with cord, 14 x Tips, 2 x Tip Holders, 1 x Torque Wrench, 1 x Foot Switch, 1 x Pump connector, 1 x Surgical Tray, 1 x Suitcase, 1 x Rod, 1 x connector etc.
