WADSWORTH B3030 B3030TWIN BREAKER 1-POLE 30A & 1- POLE 30A WA3030~NEW For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

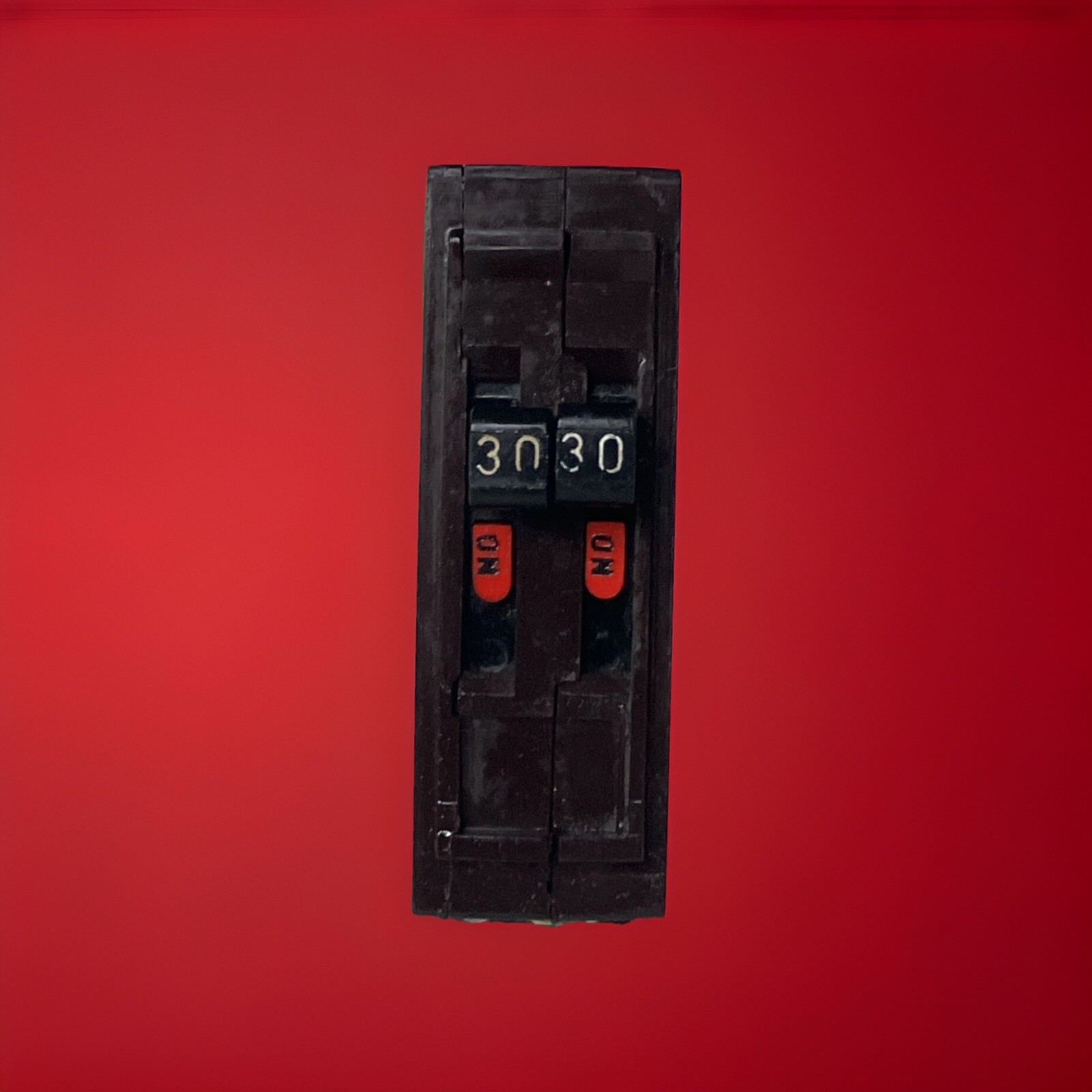

WADSWORTH B3030 B3030TWIN BREAKER 1-POLE 30A & 1- POLE 30A WA3030~NEW:
$147.88

buy more and save more $$$ + each additional ships for 99¢
DescriptionWadsworth B3030 2 Pole single pole switches on spacesaver thin breaker, both sides swing independently and each side is 30 Amp. It is up to 240 Volt but is also used at 120 Volts Circuit Breaker.
B3030, Wadsworth, B Series, type B, 2P, 1PH, twin, 30 Amkp and 30 Amp, 120V,10kA@120V, 40°C, Clip-On, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

---

---

---

Wadsworth 30 Amp 2 Pole Circuit Breaker Type A 120/240V A230 A230NI

$99.95

---

Wadsworth 815ALM-11444

$205.00

---

Wadsworth 50amp. 2 Pole Circuit Breaker New

$156.00

---
