Von Duprin 900-2RS Relay Output PCB Board, Model/MPN 900-2RS For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

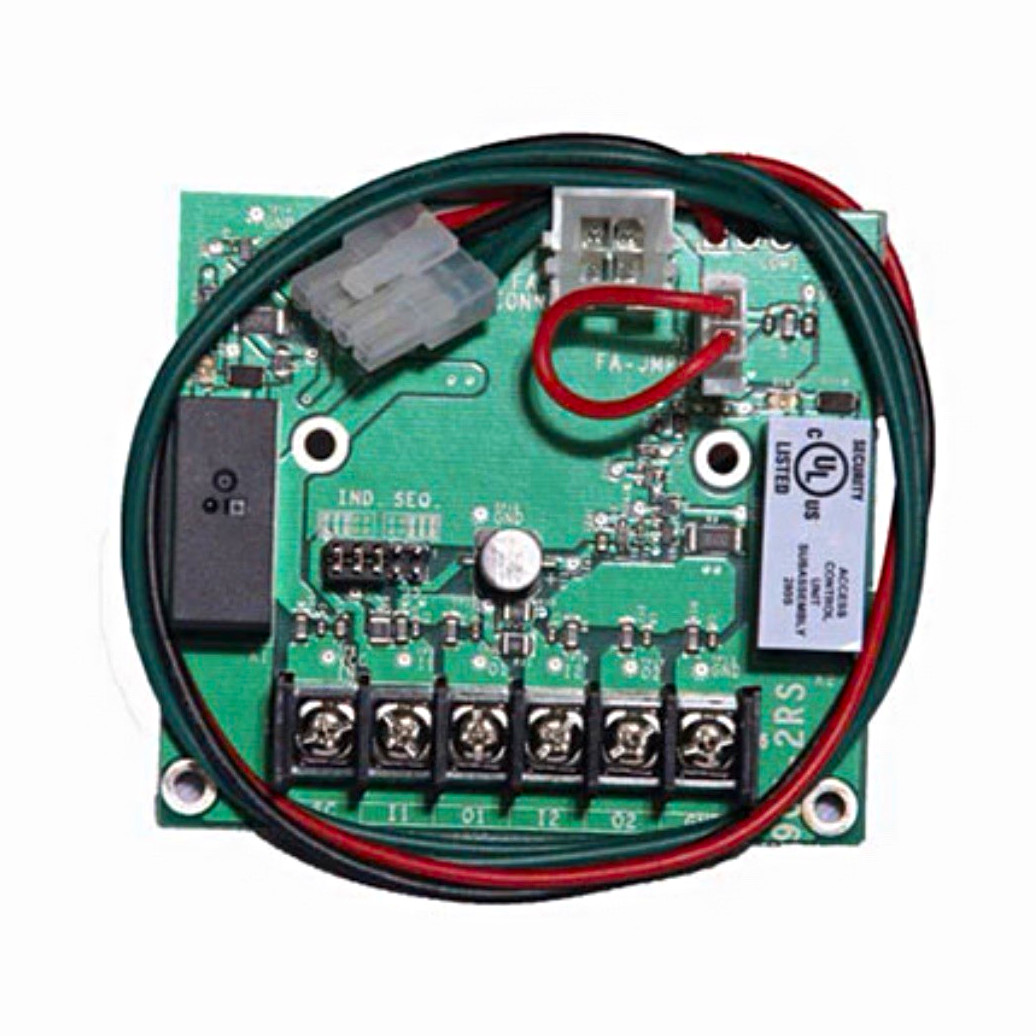

Von Duprin 900-2RS Relay Output PCB Board, Model/MPN 900-2RS:
$75.00

2 Relay option board capable of individual or sequential operation for single and pair door applicationsFor use with the Schlage PS900 / Von Duprin PS914 power supplies
Accepts 900-FA Fire Alarm Board (optional)
Temperature Range: 32°-120° F (0°- 49° C)
Compliance: UL 294, ULC-S318, RoHS, & FCC Part 15

---

---

---

Von Duprin 360L Panic Exit Device Hardware Trim With Cylinder

$175.00

---

Von Duprin 99 EL Panic. 36

$400.00

---

VON DUPRIN 990DT US26D Pull,Dummy Escutcheon Pull,99 Series 4WY62

$342.96

---
