Ultrasonic Flow Meter TUF-2000B Liquid Flowmeter Protection DN50~DN700mm TM-1:
$208.74

DescriptionThis Is a New Generation Ultrasonic Flow Meter Which Is Made of Our Patented Technology.tuf-2000b Ultrasonic Flow Meters Utilize the Transit-time Principle to Measure the Velocity of Relatively Clean Liquids in Full Pipes. It Is Accurate, Durable, and Easy to Install. It Is Widely Applied in Water Supply, Heating, Water Conservancy, Chemical, Pharmaceutical, Energy, and Other Industries.SpecificationAccuracy: ≤1%Host Size(Lxwxh): 15.6*8.5*15cm/6.14*3.35*5.9inVelocity Range: 0~±10m/SPipe Size: Dn50~Dn700mmTemperature: -30~90℃Measurable Pipe Material: Steel, Stainless Steel, Copper, Pvc, Aluminum, Glass Steel, Etc.Signal Output:1 Way 4-20ma Output1 Way Oct Pulse Output1 Way Relay OutputSignal Input:3 Way 4-20ma InputInterface: Rs485, Support ModbusUltrasonic Flow Meter TUF-2000B Liquid Flowmeter Protection DN50~DN700mm style="line-height: 1.5; text-align: left;">TUF-2000B Ultrasonic Flowmeter Wall Mounted Liquid Flow Meter w/ TM-1 Transducer

Description

This Is a New Generation Ultrasonic Flow Meter Which Is Made of Our Patented Technology.tuf-2000b Ultrasonic Flow Meters Utilize the Transit-time Principle to Measure the Velocity of Relatively Clean Liquids in Full Pipes. It Is Accurate, Durable, and Easy to Install. It Is Widely Applied in Water Supply, Heating, Water Conservancy, Chemical, Pharmaceutical, Energy, and Other Industries.

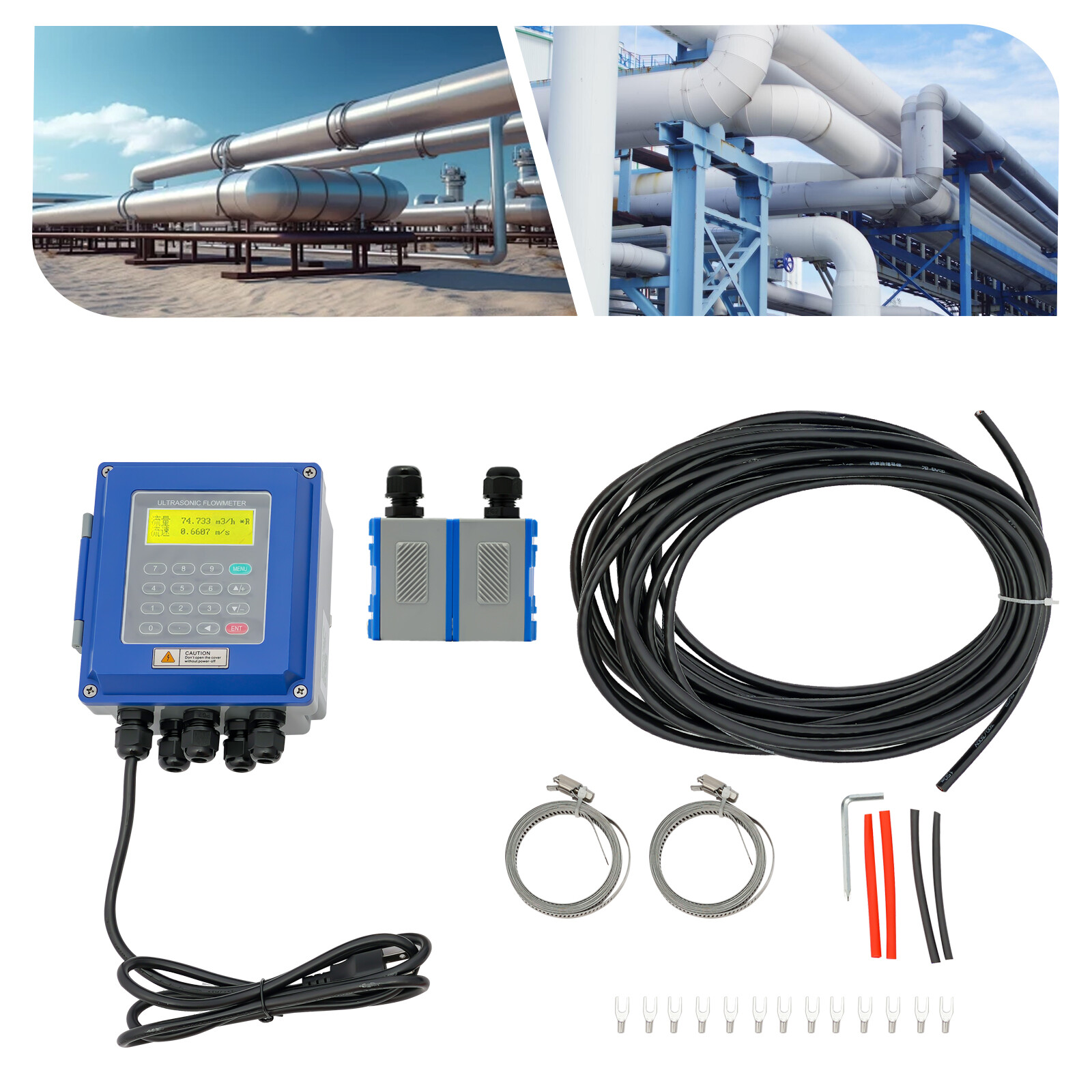

What's Included？

TUF-2000B Ultrasonic Flowmeter X1

Steel Belts X2

Tm-1 Ultrasonic Transducers X2

5 Meters Flow Signal Cables X2

All Accessories for Assembly

English User Manual X1

Specifications

Accuracy: ≤1%

Host Size(Lxwxh): 15.6*8.5*15cm/6.14*3.35*5.9in

Velocity Range: 0~±10m/S

Pipe Size: Dn50~Dn700mm

Temperature: -30~90℃

Measurable Pipe Material: Steel, Stainless Steel, Copper, Pvc, Aluminum, Glass Steel, Etc.

Signal Output:

1 Way 4-20ma Output

1 Way Oct Pulse Output

1 Way Relay Output

Signal Input:

3 Way 4-20ma Input

Interface: Rs485, Support Modbus

Power Supply: Dc8~36v or Ac85~264v

Features & Highlights

Anti-corrosion and Moisture-proof:the Shell Is Ip67 and Ip68 Professional Grade Protective Shell. It Is Dust-proof, Water-proof, Anti-corrosion, andMoisture-proof, so It Is Suitable for Long-term Outdoor Installation.

Wide Range of Liquids:It Can Measure Any Liquid As Long As It Is Relatively Clear, Such As Water, Seawater, Sewage, Oil, Alcohol, Etc.

Bi-directional Measurement:with a Dedicated Bi-directional Metering Chip As the Core, Both the Forward and the Reverse Can Be Measured Without Adjusting the Machine.

Three Ways to Measure:There Are Three Measuring Methods. They Are Wall Mounting, Insertion and Inline.you Can Choose Any Way of Measurement According to the Environment.

Data Storage:There Is an Inner Sd Card That Regularly Stores the Pre-set Results. or You Can Choose Not to Record Them. It’s Optional.

High Accuracy:We Use High-quality Chips. It Is Stable and More Accurate on Flow Monitoring.

Easy to Install: the Various Installation Methods Are Very Easy. and There Is No Need to Cut off the Flow and No Pressure Loss.

Customer Service:Customer Always Comes First. so If You Have Any Questions Please Feel Free to Contact Us. We Are Very Willing to Answer Your Questions.

Details

High Definition Lcd Display:the Hd Display Can Be Displayed Backlit for Easy and Intuitive Reading.

Abs Electrical Interface:Abs Material Is Not Easy to Age and Crack. It Is Water-proof, Dust-proof, and Has a Long Service Life.

External Sensor Probe:the Probe Has a Built-in Magnet That Can Be Directly Attached to the Pipe. It Is Also Equipped with an Anti-interference Shielding Wire for More Accurate Measurement.

Application

It Is Widely Used in Water Supply, Heating, Water Conservancy, Chemical, Pharmaceutical, Energy, and Other Industries.

Installation

The Item Needs to Be Installed by Yourself. Please Watch the User Manual As a Reference. If You Have Any Questions, Please Contact Us. and We Will Reply and Solve Your Problem As Soon As Possible.

Notes

1. to Avoid Signal Reduction and Improve Anti-jamming Ability, It Is Better to Use the Customized Signal Cable from the Flow Meter Manufacturer.

2. the Length of Cables Between Converter and Transducer Should Be As Short As Possible, Cannot Exceed 200m.

3. the Temperature and Humidity of the Working Environment Should Be in the Range of Technical Specifications. Avoid Direct Sunlight on Lcd.

4. Please Allow the Slight Color Difference Caused by the Shooting Light and 1-3 Cm Error Due to Manual Measurement, and Make Sure You Do Not Mind Before Ordering.
