UL Listed 10Pcs Electromechanical Relay Power Relay 110V-120V AC/DC HF41F/60-ZS For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

UL Listed 10Pcs Electromechanical Relay Power Relay 110V-120V AC/DC HF41F/60-ZS:
$147.04

Store
New Arrivals
Add to Favorite
View response
Contact

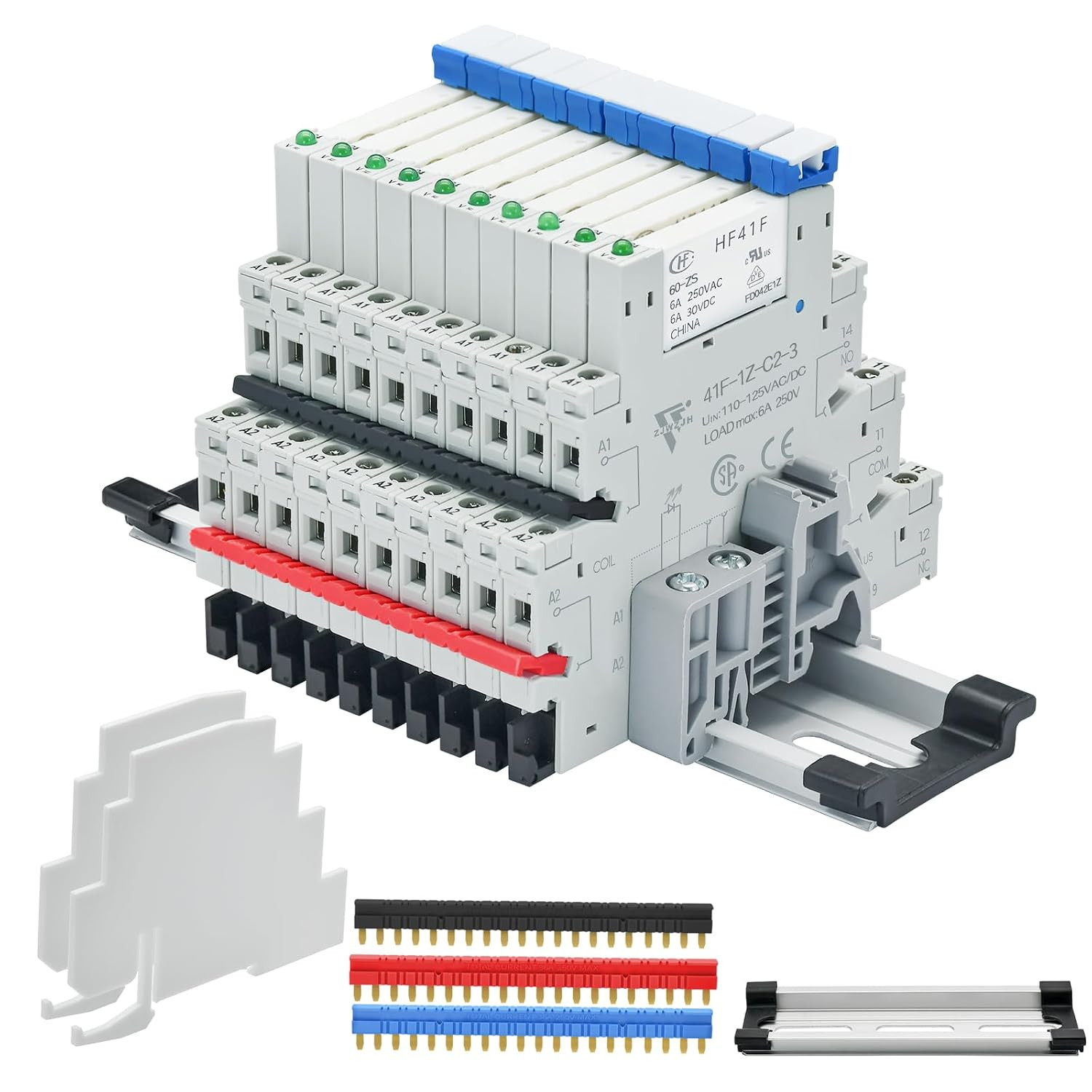

UL Listed 10Pcs Electromechanical Relay Power Relay 110V-120V AC/DC HF41F/60-ZS 1NO 1NC 6 Amp SPDT with LED Indicator, Socket Base, DIN Rail SlottedDescription Connector Type Screw Contact Type Spdt Current Rating 6 A Mounting Type DIN Rail Mount Operation Mode ON-OFF Wattage 170 Milliwatts Coil Voltage 110 volts Contact Current Rating 6 A Maximum Switching Current 6 A Maximum Switching Voltage 250 volts_of_alternating_current Minimum Switching Voltage 5 volts_of_direct_current Upper Temperature Rating 70 °C Specification Met CE, CSA, RoHS, UL, VDE Unit Count 10 Count Warranty Description You can contact us for any quality issues. Number of Items 10 Included Components 10× Relay; 2x DIN Rail; 3×Jumper; 4×Fixing Clip; 2×Separator; 4×Screw. Item Weight 1.12 ounces Model HF41F/110-10PCS Part Number HF41F/110-10PCS Contact Material Silver

Product description 1 Packaging 110V 2 UL Certification 3 Writing board, Light 4 Jumper 5 din rail relay

110V-125V AC/DC

Relay 60V converted to 110V-125V AC/DC through socket
Installation of Separator and Jumper

There are 2 Separator and 3 jumper wires inside the packaging. The Separator can divide the relay into multiple groups according to your requirements. jumper can connect multiple relays and control them together.
The video showcases the product in use.The video guides you through product setup.The video shows the product being unpacked. Jumper and Separator
Screw terminal wiring
The video showcases the product in use.The video guides you through product setup.The video shows the product being unpacked. Relay Wiring Method

1 Ours and Others 2 Application 3 Socket 4 Relay 5 Measure Relay through UL Listed and VDE Listed, Socket through UL Listed, CSA and CE Listed. The thickness is only 0.24 \"/6.2mm

【110 Volt Relay】Relay Coil Voltage: 60V AC/DC, the 60V relay is converted to 110V through the socket. Terminals : 5 Pin. Contact Rating: 6 Amp 250VAC / 30VDC

【1NO 1NC】Contact : SPDT 1 Normally Closed + 1 Normally Open. Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles

【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (110~125)V AC/DC; Apply to relay the rated voltage: 110~125V AC; Input voltage polarity: NO.Recommended minimal load:100mA, On Delay Time: 7ms; Release Time: 15ms

【Package】Package Content : 10× Power Relay and Socket Base; 2x 133mm Length DIN Rail; 3×Jumper; 4×Fixing Clip; 2×Separator; 4×Screw. Ambient temperature: -40℃ ~ 70℃.
