On eBay Now...ThyssenKrupp / Dover TAC50 80C186 CPU Board ASS'Y 6300JC4 Rev L – Tested (B5) For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

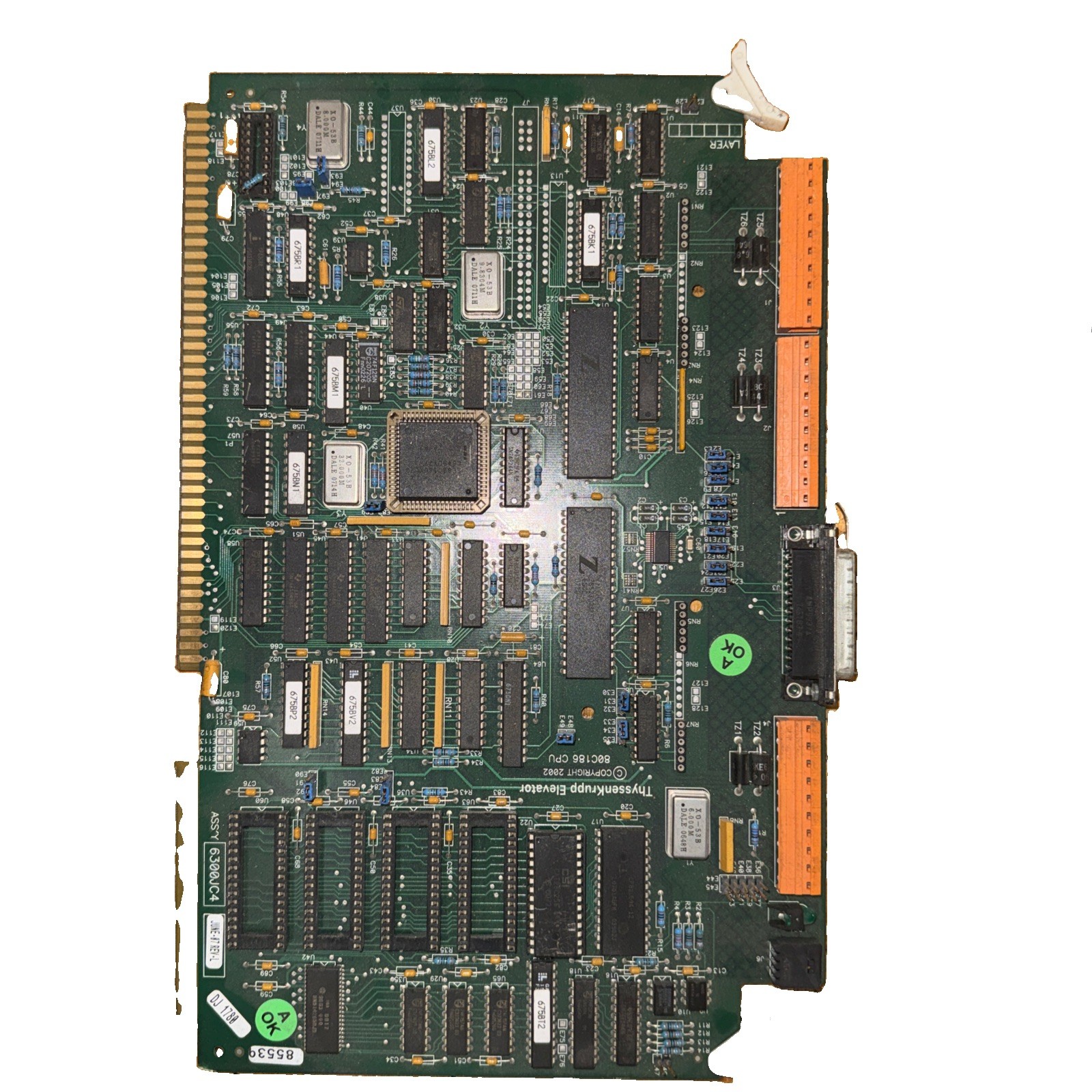

ThyssenKrupp / Dover TAC50 80C186 CPU Board ASS'Y 6300JC4 Rev L – Tested (B5):
$315.00
Brand: ThyssenKrupp Elevator / Dover
Part Number / Model: ASS'Y 6300JC4 (Rev L) / 80C186 CPU Board
Compatible Controller System: TAC50 / T-IV Elevator Controls
Microprocessor: Intel 80C186 architecture
Condition: Used – Fully Tested & Functional
Description:
Up for sale is a genuine ThyssenKrupp Elevator 80C186 CPU Main Controller Circuit Board, removed from a working system and verified operational.
Board Markings & ID Labels:
Silkscreen: © COPYRIGHT 2002 ThyssenKrupp Elevator | 80C186 CPU
Stamped Assembly: ASS'Y 6300JC4 | JUNE-07 REV-L
Serial / Inspection Decals: 85539 | DJ 1788 | Passed QC stamp
Interface & Hardware:
Onboard 68-pin PLCC microprocessor and core logic chips installed
DB25 serial/diagnostic port on top edge
Gold backplane edge connectors, card-ejector tabs, and terminal headers all clean and undamaged
