Teledyne Isco Foxy R2 Fraction Collector with 13 mm x 144 Racks - New/Sealed Box For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

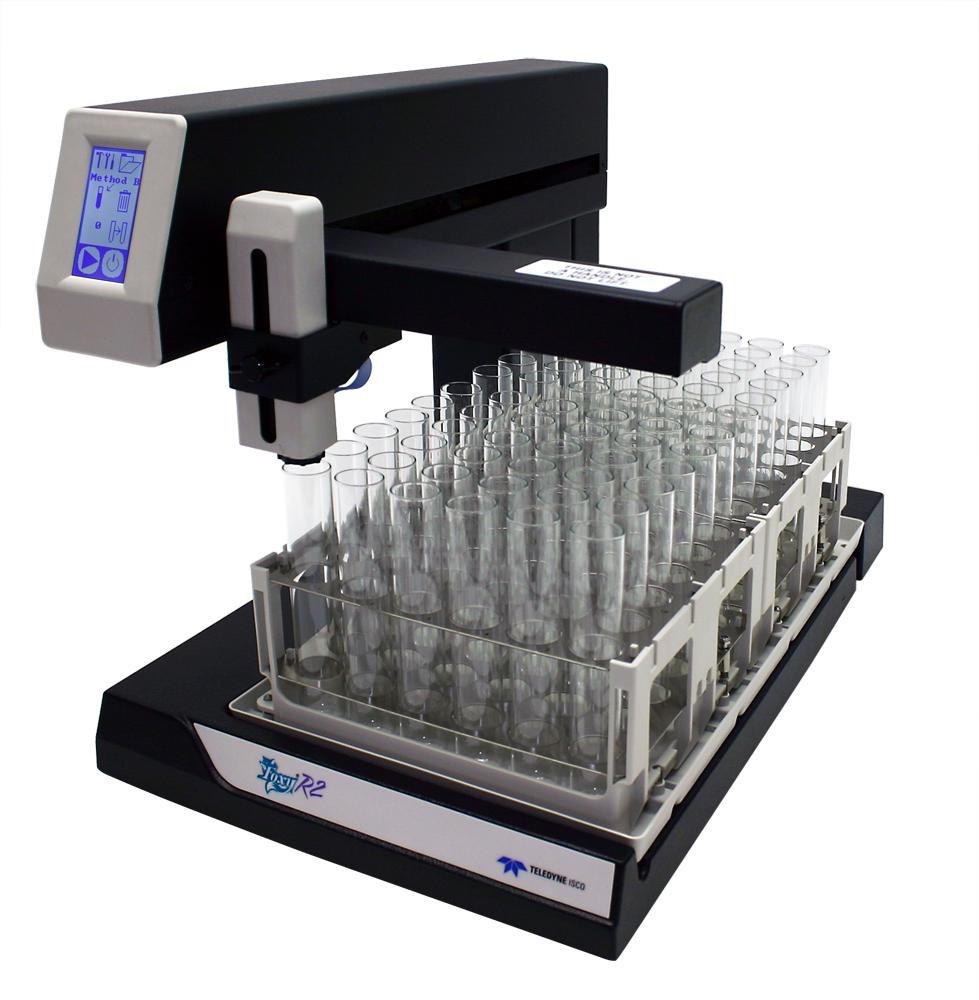

Teledyne Isco Foxy R2 Fraction Collector with 13 mm x 144 Racks - New/Sealed Box:
$6100.00

Foxy® R2 sub-ambient fraction collector, model number 622130009.Operating temperature from 0 to 40 degrees C. Standard 1/16 inch O.D. (0.030 inch I.D.) tubing included for collection up to 25 mL/minute. Includes a pair of 13 mm x 144 slot racks, but I have not opened the box.
Specifications:

Inlet Tubing and Flow Rates: 1/8 Inch O.D. (0.062 Inch I.D.), 25-125 mL/minute (up to 25 mL/minute with low flow option)
Maximum Tube Height: 196 mm
Racks: 2, with RFID
Maximum Tube Quantity: 288 using 12/13 mm tubes
Construction Materials:
Racks - Stainless steel and polypropylene
Funnel Racks - ECTFE (Halar®) or ETFE (Tefzel™) funnels
Diverter Valve - PEEK and FFKM (fluoroelastomer)
Construction - Cast Aluminum
Drip Tray - Polypropylene
Drop Former - PEEK
Solvent Compatibility: Aqueous and Organic
Test Tube Time Change: 0.10 - 0.58 seconds (dependent on collection vessel tube advance speed)
Memory: Eight (8) methods
Collection Modes:
Time - 00:00:01 to 99:59:59 in 1 second intervals
Drop - 1 to 999 drops per fraction
Volume - Up to 999 units
Peak Detection: Slope, Threshold, Three Time Windows or combination of any of the above listed collection modes
System Control: Front panel touchscreen, Ethernet or RS-232
Inputs: Pump counter, external peak, inject, tube advance: +3.3 to 5 VDC or contact closure, active low, 30 milliseconds minimum, 5 VDC maximum. Analog peak voltage: 0 to 1.0 V nominal, -1.2 to + 1.2 V usable, -5 to +5 V maximum.
Outputs: Pump pause/stop and event (tube change), 300 milliseconds: open collector, active low, 15 VDC/100 mA maximum.
Automatic Shut-Off: Rack full, last tube, end of time window or external signal.
Security Valve (2-way): N/A
Diverter Valve (3-way): Included
Valve Pressure Rating: 0-28 PS
Power Requirements: 100 - 240 VAC, 50-60 Hz, 1 ampere maximum Includes one IEC power cord supplied for regional AC power.
Certification: CE, CSA

We ordered this for a project that ended up not being funded so I\'m trying to recoup somes costs. New these are over 10K + shipping, here\'s I\'ll let it for 6100 shipped. Thanks for looking!
