TREK 677B-L-CE High Voltage Power Supply Amplifier ±2kV 5mA - 4713:
$2195.00

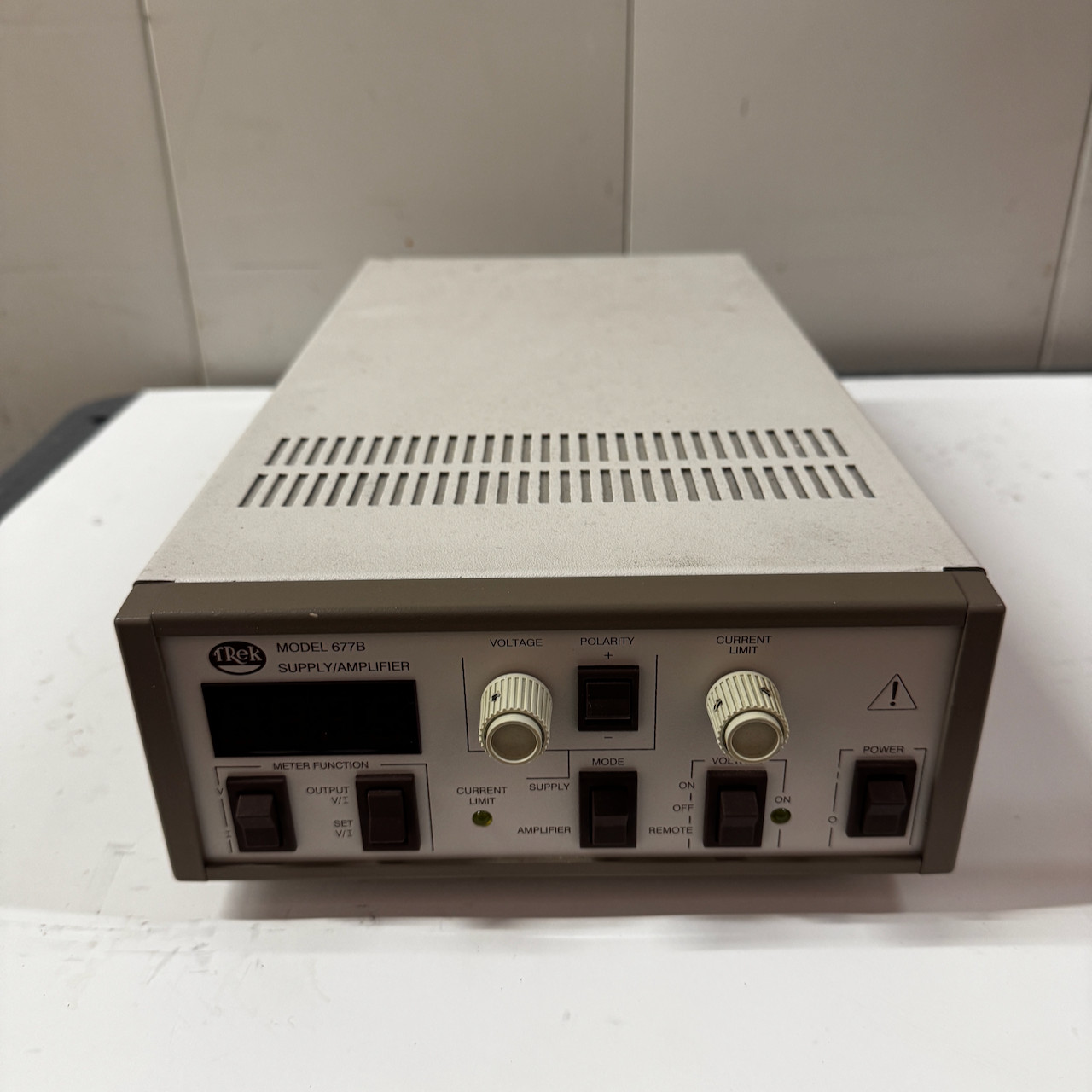

TREK Model 677B-L-CE High Voltage Power Supply / Amplifier — ±2kV, ±5mA

Offered for sale is a genuine Trek Model 677B-L-CE high-voltage power supply and amplifier, manufactured in the USA by Trek, Inc.

This precision laboratory instrument is designed for applications requiring accurately controlled high-voltage output. The Model 677B offers both standalone high-voltage power supply operation and amplifier operation, making it suitable for research, industrial testing, and specialized scientific applications.

Specifications:

• Manufacturer: Trek, Inc.

• Model: 677B-L-CE

• Type: High Voltage Power Supply / Amplifier

• Output Voltage Range: 0 to ±2,000 V DC or peak AC

• Output Current Range: 0 to ±5 mA DC or peak AC

• Amplifier Input Voltage Range: 0 to ±10 V

• Nominal Voltage Gain: 200 V/V

• Large Signal Bandwidth: DC to greater than 1.2 kHz

• Small Signal Bandwidth: DC to greater than 5 kHz

• Input Power: 90–127 VAC, 48–63 Hz (per rear label)

• Operating Modes: Power Supply / Amplifier

• Adjustable Voltage and Current Limit

• Selectable Output Polarity

• Digital Display and Monitoring Functions

• High-Voltage Output Connector

• BNC Monitoring and Control Connections

• Country of Manufacture: USA

Typical Applications:

• Electrostatic research and testing

• Piezoelectric driving and control

• Electro-optic research

• High-voltage laboratory voltage control applications

Condition:

The instrument is in good overall used condition. It shows normal signs of prior laboratory use, including minor surface wear.

A previous calibration sticker is present on the rear panel, but the instrument is not being represented as currently calibrated.

Physical Details:

• Dimensions: 4.25\" H × 8.5\" W × 16\" D

• Weight: Approximately 11 lbs

• Serial Number: 343

• Revision: A3

Included:

One Trek Model 677B-L-CE supply/amplifier, as photographed. Any cables or accessories not specifically shown or described are not included.

Please examine the photographs carefully, as they form part of the item description.

This is specialized high-voltage laboratory equipment intended for qualified personnel familiar with appropriate electrical safety precautions.

---

---

---
