TEMCo HC0015 - Hydraulic Cylinder Ram Single Acting 50 TON 2" Inch Stroke NEW For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

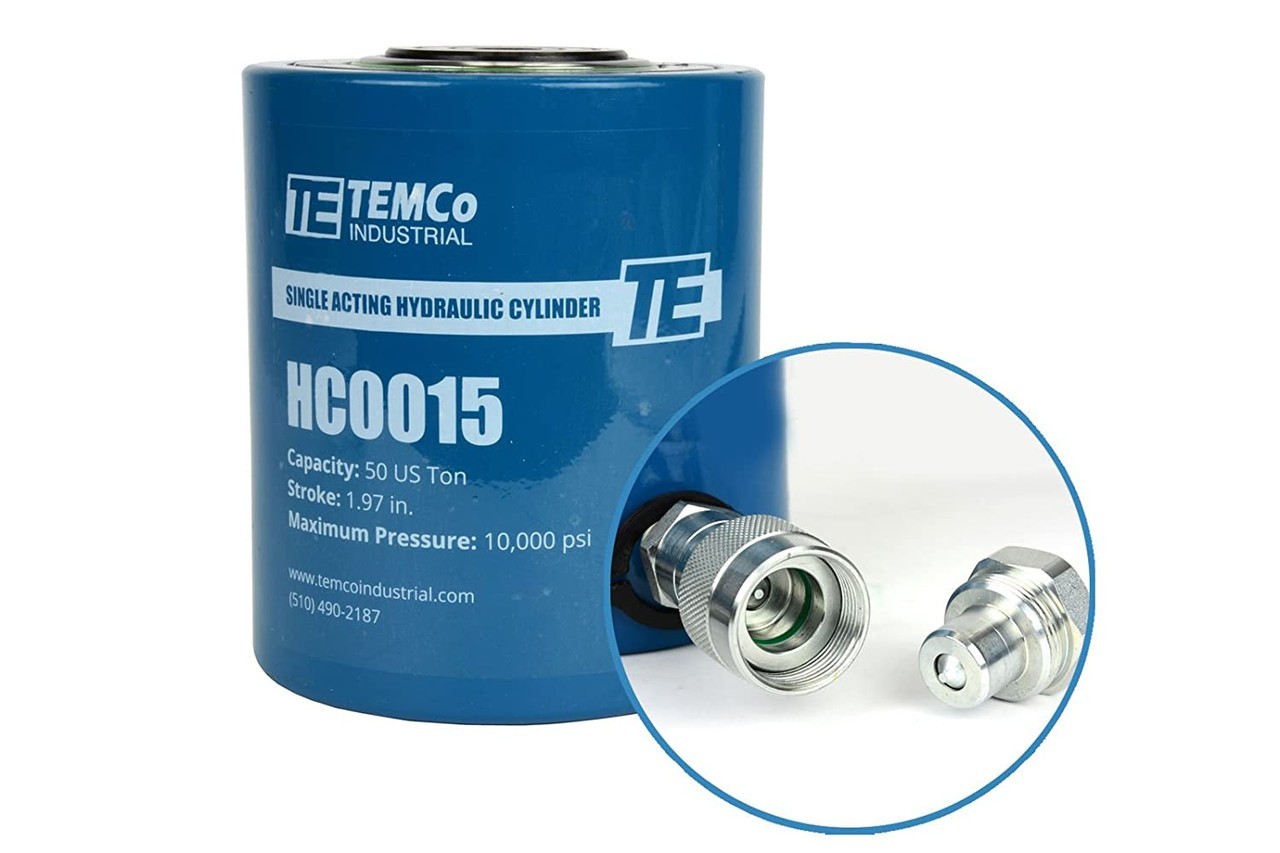

TEMCo HC0015 - Hydraulic Cylinder Ram Single Acting 50 TON 2" Inch Stroke NEW:
$184.69

BONUS: Includes ISO 14540 Male x Female 3/8" NPT Connector (Shown Above)
TEMCo ID: HC0015Type: Single Acting Hydraulic CylinderAction: Single acting - Pressure extend, Spring returnRam Material: Hard black oxide plated high carbon steelCapacity: 50 US TonsCompressed Overall Height: 5.79"Extended Overall Height: 7.76"Stroke: 1.97"Outside Cylinder Diameter: 4.84"Inner Cylinder Diameter: 3.74"Oil Volume: 23.74 cubic inchesMax Pressure: 10,000 PSIMinimum Operating Temperature: -15°CConnector Type: Quick hydraulic coupler with dust cap
Applications Include:Heavy machinery rigging and movingAuto repairOil riggingMachine maintenanceBearing and bushing removal and installationLifting, pushing, spreading, bending, pressing or straightening
COUPLER SPECIFICATIONSStandard: ISO 14540Thread (between male poppet end and coupling ring): M30 x 1.5 mmThread: 3/8" NPTOcclusion Type: PoppetRated Pressure: 10,000 psiRated Flow: 6 GPMSealing Material: Nitrile Rubber (Buna-N, NBR)
Interchangeable With:Enerpac C-604Parker 3000 SeriesSafeway S30 SeriesStucchi IVHP SeriesPerfecting T SeriesSnap Tite 76 SeriesDnp PVM SeriesFaster PVVM Series

---

---

---

TEMCo HC0015 - Hydraulic Cylinder Ram Single Acting 50 TON 2" Inch Stroke

$195.00

---

TEMCo HC0015 Hydraulic Cylinder Ram Single Acting 50 Ton 2" Stroke - SALE

$180.00

---

TEMCo HC0015 - Hydraulic Cylinder Ram Single Acting 50 TON 2" Inch Stroke - NEW

$185.00

---
