Sandbaggy 8" x 4 ¾" Heavy Duty Snap Ties For Concrete Forms (3,350 lb SWL) For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

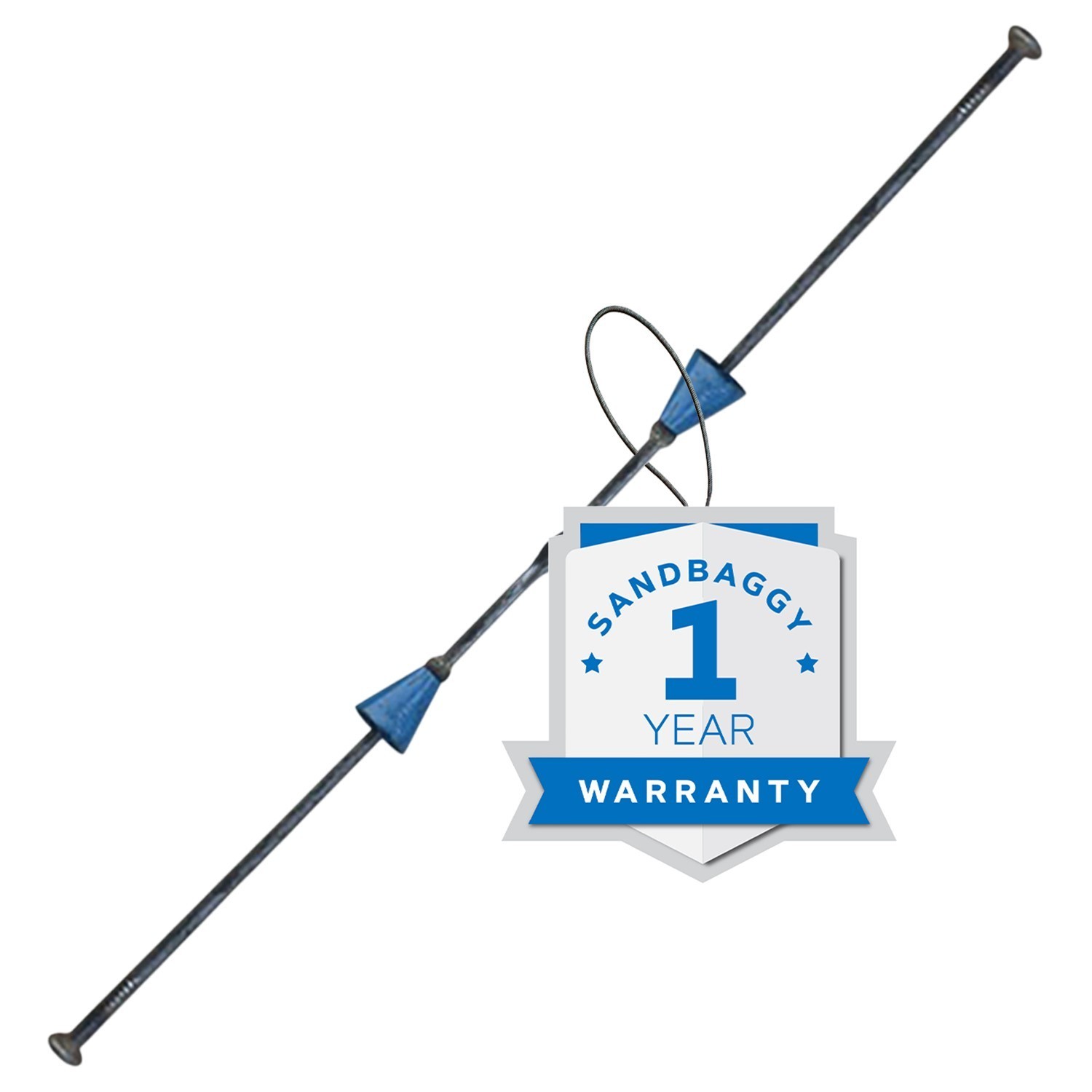

Sandbaggy 8" x 4 ¾" Heavy Duty Snap Ties For Concrete Forms (3,350 lb SWL):
$78.18

Get Strong, Heavy-Duty 8" Concrete Walls

With over 750,000 snap ties sold, Sandbaggy is trusted by concrete contractors nationwide. These short end snap ties are designed for 8" wall forming systems and feature a 3,350 lb working load (2:1 safety factor) for maximum strength and stability during demanding concrete pours.

Built from extra-strength construction-grade steel with integral heads and 1" plastic cones, these ties provide a nominal 1" break-back while preventing rust stains on finished concrete surfaces. Designed for reliability on heavy-duty forming projects where standard ties may not be enough.

Backed by our 1-Year Ironclad Warranty — built tough and protected against manufacturing defects under normal use.

Additional Info

More snap tie sizes available
Also Available: Snap Tie Wedges,Jahn A Brackets, andJahn C Brackets
Use our Snap Tie Calculator to estimate how many ties you steel
cone: plastic

Thickness: 6.1 mm

Gauge: 4

Size: 8" Wall x 4 ¾" End (Short End)

Cone Diameter: 1"

Weight: 4.16 oz / 0.26 lbs.

Head construction: Integral

Safe Working Load (SWL): 3,350 lbs.

Safety Factor: 2:1

Break-back:nominal 1"

Features

1-Year Ironclad Warranty: Built tough and backed for 12 full months against manufacturing defects under normal use. If it fails, we repair, replace, or refund. (Does not cover theft, vandalism, tampering, or misuse.)
Over 750,000 Snap Ties Sold: Trusted by professional concrete contractors across the USA.
Extra-Strength 4 Gauge Steel Construction: Built from thicker steel for demanding concrete forming applications.
Stronger Integral Head Design: Greater durability and holding strength compared to welded head alternatives.
3,350 LB Working Load (2:1 Safety Factor): Nearly 50% stronger than standard snap ties, engineered for stability during extremely heavy concrete placement.
1" Plastic Cones – Clean Break-Back: Prevents rust stains and provides a nominal 1" break-back for smooth removal without damaging the concrete surface.
Short End Snap Ties For 8" Walls:Designed specifically for 8 inch wall size forming systems.
Compatible With Sandbaggy Accessories: Works seamlessly with Snap Tie Wedges, Jahn A Brackets, and Jahn C Brackets for a complete forming system.

FAQWhat is a snap tie in construction?

Snap ties are an essential component in formwork for concrete, connecting two distinct surfaces. Made of either plastic or steel, these ties feature a cone-shaped head at one end and a threaded rod on the other. The Jahn A bracket then holds the snap tie in place and also supports the wale or stud.

How do snap ties work?

Snap ties are installed by threading them through form holes, then secured by tightening with a snap tie wedge. This spreads the plastic cones out, locking the forms in place. Once concrete cures, the wedges are removed and cones broken off, freeing the ties from the concrete.

How strong is a snap tie?

Most snap ties have a minimum working load of 2,000 lbs, capable of withstanding the pressure of up to 2,000 lbs of concrete.

How do you seal snap ties?

Snap ties can be sealed with silicone caulk, hydraulic cement, or similar materials for better protection against water seepage into concrete.

How much pressure can a snap tie hold?

Snap ties can withstand 2,000 lbs of concrete pressure, depending on size and material.

What is the difference between short end and long end snap ties?

Short end snap ties have shorter threads on the end of the ties, while long end snap ties have longer threads. The length required at the end of the snap ties will depend on your forming system type.
