Rabbit Semiconductor / DIGI RabbitNet RN1200 Analog to Digital Converter:
$35.00

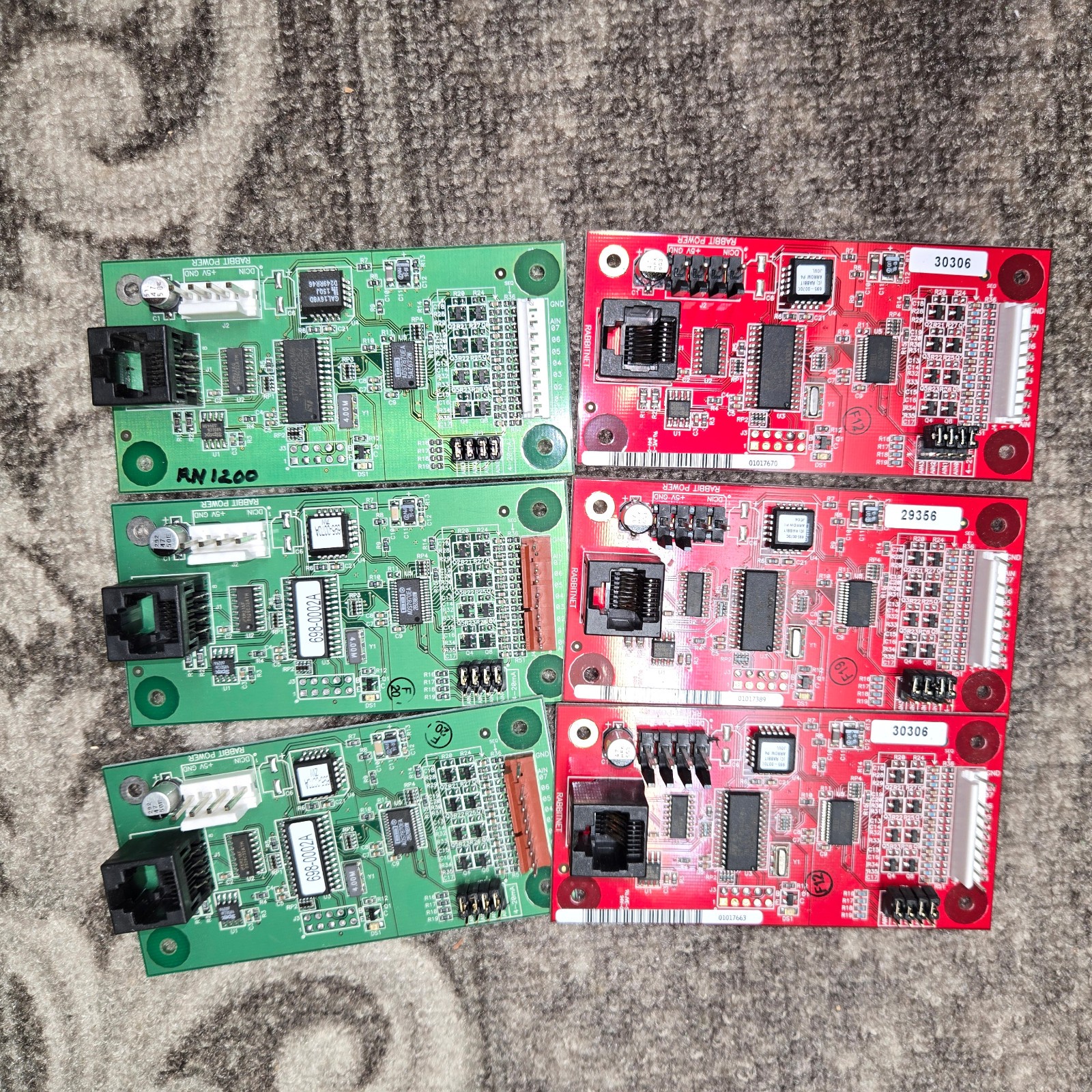

This listing is for a RabbitNet RN1200 Digital ADC. There are 6 cards, three are RoHS and three are Non-RoHS.A red circuit board indicates RoHS while a green board indicates Non-RoHS.
You can down load from the DIGI website a user interface for a "C" compiler, assembler and debugger. Select Dynamic C ver 9.62A.General RabbitNet Description
RabbitNet is a high-speed synchronous protocol developed by Rabbit Semiconductor to
connect peripheral cards to a master and to allow them to communicate with each other.
RabbitNet Connections
All RabbitNet connections are made point to point. A RabbitNet master port can only be
connected directly to a peripheral card, and the number of peripheral cards is limited by
the number of available RabbitNet ports on the master.

RabbitNet Peripheral Cards
A typical RabbitNet™ system consists of a master single-board computer and one or two
peripheral cards. A high-performance Rabbit 3000 ® or Rabbit 2000® microprocessor on
the master provides fast data processing, and a BL2500 or a BL2600 master also provides
the DCIN and +5 V power for the peripheral cards. Use a straight-through CAT 5/6 Ether-
net cable to connect the master to slave peripheral cards, unless you are using a device such
as the OP7200 that could be used either as a master or a slave. In this case you would use a
crossover CAT 5/6 Ethernet cable to connect an OP7200 that is being used as a slave.
NOTE: Even though CAT 5/6 Ethernet cables are used for the RabbitNet connections,
never connect a RabbitNet port to an Ethernet network. Doing so could destroy the
RabbitNet SPI driver.
RN1200 ADCFeatures• 8 single-ended 11-bit or 4 differential 12-bit analog inputsRN1200• 4 channels can be set with jumpers to be 11-bit 4–20 mA analog inputs, all 8 channels can be special-ordered in quantity to be 11-bit 4–20 mA analog inputs• 1MΩ input impedance• 2.5 k samples/s sampling rate• software-controlled voltage ranges: 0–1 V, 2 V, 5 V 10 V, 20 V DC (single-ended) or ±1 V, ±2 V, ±5 V, ±10 V, ±20 V DC (differential)
• can be mounted in standard 100 mm DIN rail trays sold by other suppliers• interfaces with master through RabbitNet™ serial protocol at 1 Megabit per second using standard Ethernet cable up to 10 m (33 ft) long
SoftwareThe A/D Converter Card is a slave; the master to which it is connected is programmed using version 8.01 or later of Rabbit Semiconductor’s Dynamic C. If you are using a BL2500 or an OP7200 as your master with an earlier version of Dynamic C, Rabbit Semiconductor recommends that you upgrade your Dynamic C installation.
