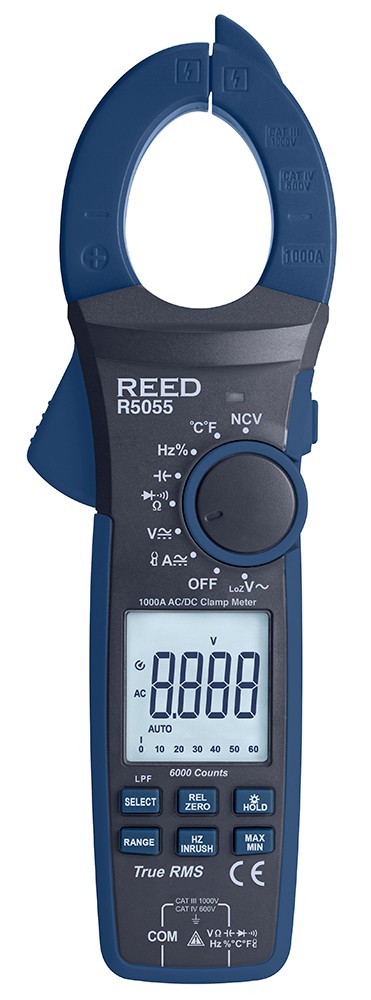

REED Instruments R5055 1000A True RMS Digital Clamp Meter:
$199.00

Untitled Document REED Instruments R5055 1000A True RMS Digital Clamp Meter Model: R5055 | Order No:R5055

AC/DC Clamp Meter with analog bargraph, backlight, min/max function, built-in non-contact voltage (NCV) detector and contact thermometer.

Brand: REED Model: R5055 Order No: R5055 Condition: NEW Description REED Instruments R5055 1000A True RMS Digital Clamp Meter

This auto ranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle, contact temperature and up to 3000A AC with optional 18" flexible current probe (R5065). Featuring a 6000 count backlit LCD display with a 31-segment analog bargraph and double molded plastic housing. The R5055 keeps track of min/max readings and includes low pass filter and Low impedance (LoZ) AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, and contact temperature

6000-count backlit LCD display and analog bargraph

Flexible current probe can expand AC current measurements up to 3000A; (R5065, sold separately)

Ergonomic design fits in your hand and can be used while wearing protective gloves

Built-in LED flashlight

Low battery and over range indicators

Built-in non-contact voltage detector with LED indicator

True RMS voltage and current for accurate measurements

Low Pass Filter and Low Impedance (LoZ) modes

Min/Max, display hold and relative mode

Diode test and continuity check functions

Durable double molded plastic housing

Cat. III 1000V, Cat. IV 600V safety rating

Included

AC/DC True RMS Clamp Meter
Type K Thermocouple
Test Leads
Carrying Case
Batteries

Specifications AC/DC CurrentRange60, 600, 1000AAccuracyAC/DC: ±(2% rdg. +5 dgt.)Resolution0.01, 0.1, 1AAC/DC VoltageRangeAC: 6, 60, 600, 1000V
DC: 600mV, 6, 60, 600, 1000VAccuracyAC: ±(1.0% rdg. +8 dgt.)
DC: ±(0.5% rdg. +5 dgt.)Resolution0.1mV, 0.001V, 0.01V, 0.1V, 1VResistanceRange600Ω, 6, 60, 600kΩ, 6, 60MΩAccuracy±(1% rdg. +2 dgt.)Resolution0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩCapacitanceRange60, 600.0nF, 6, 60, 600μF, 6, 60mFAccuracy±(4.0% + 5)Resolution0.01nF, 0.1nF, 0.001μF, 0.01μF, 0.1μF, 0.001mF, 0.01mFFrequencyRange10Hz, 1MHzAccuracy±(0.1% rdg. +3 dgt.)Resolution0.01Hz, 1kHzLow Pass Filter (LPF) AC VoltageRange600, 1000VAccuracy±(2% rdg. +5 dgt.)Resolution0.1, 1VLow Impedance (LoZ) AC VoltageRange600, 1000VAccuracy±(2% rdg. +5 dgt.)Resolution0.1, 1VTemperatureRange-40 to 1832°F (-40 to 1000°C)Accuracy±(1.0% rdg. + 4°F)
±(1.0% rdg. + 2°C)Resolution1°F, 1°CGeneral SpecificationsRange SelectionAutoranging/ManualLow Impedance (LoZ)YesLow Pass Filter (LPF)YesTrue RMSYes Display6000 count LCD displayDisplay HoldYesMax/MinYesPeak HoldN/AZero Push Button AdjustmentYesRelative ModeYesDiode TestYesBacklit DisplayYesAnalog BargraphYes (31-segment)Continuity CheckAudible signal if resistance ≤30ΩDuty CycleYesNon-Contact Voltage DetectorYesBuilt-In FlashlightYesKick StandN/AAutoshut OffYes (after 15 mins)Flexible Current Probe (optional)Yes (R5065, Extends to 3000A)Power Supply3 x AAA batteriesLow Battery IndicatorYesJaw Opening1.7" (42mm), up to 1500 MCMOvervoltage CategoryCAT. III 1000V, CAT. IV 600VProduct CertificationsCE, ETLOperating Temperature32 to 122°F (0 to 50°C)Storage Temperature14 to 140°F (-10 to 60°C)Dimensions10.7 x 3.2 x 1.7" (272 x 81 x 43.5mm)Weight15.8oz (447g) Terms & Conditions
