REED Instruments R2165 Thermal Imaging Camera, 160 x 120 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

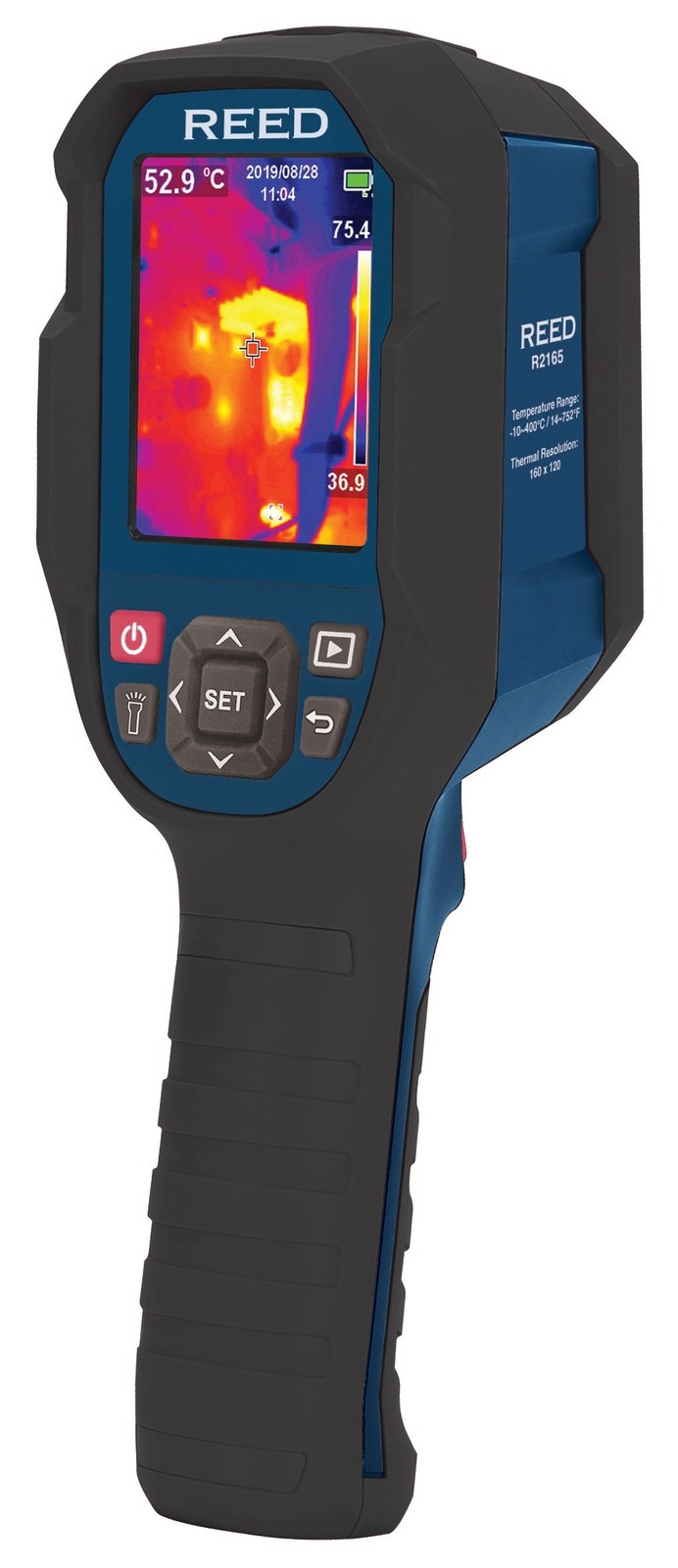

REED Instruments R2165 Thermal Imaging Camera, 160 x 120:
$599.00

Untitled Document REED Instruments R2165 Thermal Imaging Camera, 160 x 120 Model: R2165 | Order No:R2165

Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity.

Brand: REED Instruments Model: R2165 Order No: R2165 Condition: NEW Description REED Instruments R2165 Thermal Imaging Camera, 160 x 120

REED R2165 Offers

This thermal imaging camera features a 160 x 120 (19,200 pixels) infrared sensor that can detect temperatures between 14 to 752°F (-10 to 400°C). The R2165 has the ability to display hot and cold spot temperatures on a 2.8" color LCD and allows a user to choose from 7 different color palettes. The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC.

Features

160 x 120 infrared resolution (19,200 pixels)
2.8" color TFT display
Built-in LED flashlight
Choice of 7 color palettes
Intuitive on-screen measurement tools
3 image modes (Thermal, Visual Image, Thermal Blending)
High and Low-temperature spot and alarm indicators
IP65 and 6.5' (2m) drop tested
Rechargeable Li-ion battery
Tripod mountable for continuous long-term monitoring
View, analyze stored data, and generate reports or projects in real-time
Low battery indication and auto shut-off

REED R2165 Specifications Imaging and Optical Specifications Field of View (FOV) 56 x 42° Optimal Focal Distance 0.82' (0.25m) Spatial Resolution (IFOV) 6.1mrad Thermal Sensitivity (NETD) <0.05°C (50mK) Image Capture Frequency 9Hz Focus Fixed Measurement Temperature Range 14 to 752°F (-10 to 400°C) Accuracy ±3.6°F (2°C) or ±2% of reading, for ambient temperature at 77°F (25°C) Resolution 0.1°F/°C Detector Specifications Detector Type Uncooled microbolometer, Focal plane array (UFPA) Spectral Range 8 to 14µm IR Resolution 160 x 120 (19,200 pixels) Image Presentation and Measurement Analysis Display 2.8" color TFT Color Palettes 7 Image Modes Thermal, Visual Image, Thermal Blending On-Screen Temperature Markers 7 (Center/High Temp/Low Temp/Region of Interest/Up to 3 points) Center Spot Yes Emissivity Adjustable (0.01 to 0.99) Temperature Alarm Indicators High/Low (User-adjustable) Automatic Hot/Cold Detection Auto hot or cold spot-meter markers General Specifications Digital Camera Yes Digital Camera Resolution 640 x 480 pixels Display Resolution 320 x 240 pixels Image Format BMP LED Flashlight Yes External Memory Micro SD card Auto Shut-off Yes (user-adjustable 5/10/30 minutes) Tripod Mountable Yes Low Battery Indicator Yes Power Supply 3.7V/5000mAh rechargeable Li-ion battery Battery Life Approx. 6 hours Charging System In Camera Charge Time 4 hours PC Connectivity USB Cable (Type-C) Software Yes (download from website) Software Functionality Image Analysis/Report Generation/Live Camera Feed Software OS Compatibility Windows 7/8/10/11 Supported Languages English and French Product Certifications CE, IP65, 6.5' (2m) drop test Operating Temperature 32 to 122°F (0 to 50°C) Storage Temperature -4 to 140°F (-20 to 60°C) Operating/Storage Humidity Range 10 to 90% Maximum Operating Altitude 6561' (2000m) Dimensions 9.3 x 3 x 3.4" (236 x 76 x 86mm) Weight 1lbs (454g)

Included What's included with the REED R2165:-Thermal Imaging Camera-USB Cable-32GB Micro SD Card-Soft Carrying Case Specifications REED R2165 Specifications Imaging and Optical Specifications Field of View (FOV) 56 x 42° Optimal Focal Distance 0.82' (0.25m) Spatial Resolution (IFOV) 6.1mrad Thermal Sensitivity (NETD) <0.05°C (50mK) Image Capture Frequency 9Hz Focus Fixed Measurement Temperature Range 14 to 752°F (-10 to 400°C) Accuracy ±3.6°F (2°C) or ±2% of reading, for ambient temperature at 77°F (25°C) Resolution 0.1°F/°C Detector Specifications Detector Type Uncooled microbolometer, Focal plane array (UFPA) Spectral Range 8 to 14µm IR Resolution 160 x 120 (19,200 pixels) Image Presentation and Measurement Analysis Display 2.8" color TFT Color Palettes 7 Image Modes Thermal, Visual Image, Thermal Blending On-Screen Temperature Markers 7 (Center/High Temp/Low Temp/Region of Interest/Up to 3 points) Center Spot Yes Emissivity Adjustable (0.01 to 0.99) Temperature Alarm Indicators High/Low (User-adjustable) Automatic Hot/Cold Detection Auto hot or cold spot-meter markers General Specifications Digital Camera Yes Digital Camera Resolution 640 x 480 pixels Display Resolution 320 x 240 pixels Image Format BMP LED Flashlight Yes External Memory Micro SD card Auto Shut-off Yes (user-adjustable 5/10/30 minutes) Tripod Mountable Yes Low Battery Indicator Yes Power Supply 3.7V/5000mAh rechargeable Li-ion battery Battery Life Approx. 6 hours Charging System In Camera Charge Time 4 hours PC Connectivity USB Cable (Type-C) Software Yes (download from website) Software Functionality Image Analysis/Report Generation/Live Camera Feed Software OS Compatibility Windows 7/8/10/11 Supported Languages English and French Product Certifications CE, IP65, 6.5' (2m) drop test Operating Temperature 32 to 122°F (0 to 50°C) Storage Temperature -4 to 140°F (-20 to 60°C) Operating/Storage Humidity Range 10 to 90% Maximum Operating Altitude 6561' (2000m) Dimensions 9.3 x 3 x 3.4" (236 x 76 x 86mm) Weight 1lbs (454g) Terms & Conditions
