Philips Pagewriter TC70 Mainboard Main Board OEM 453564044381 45356409421:
$199.00

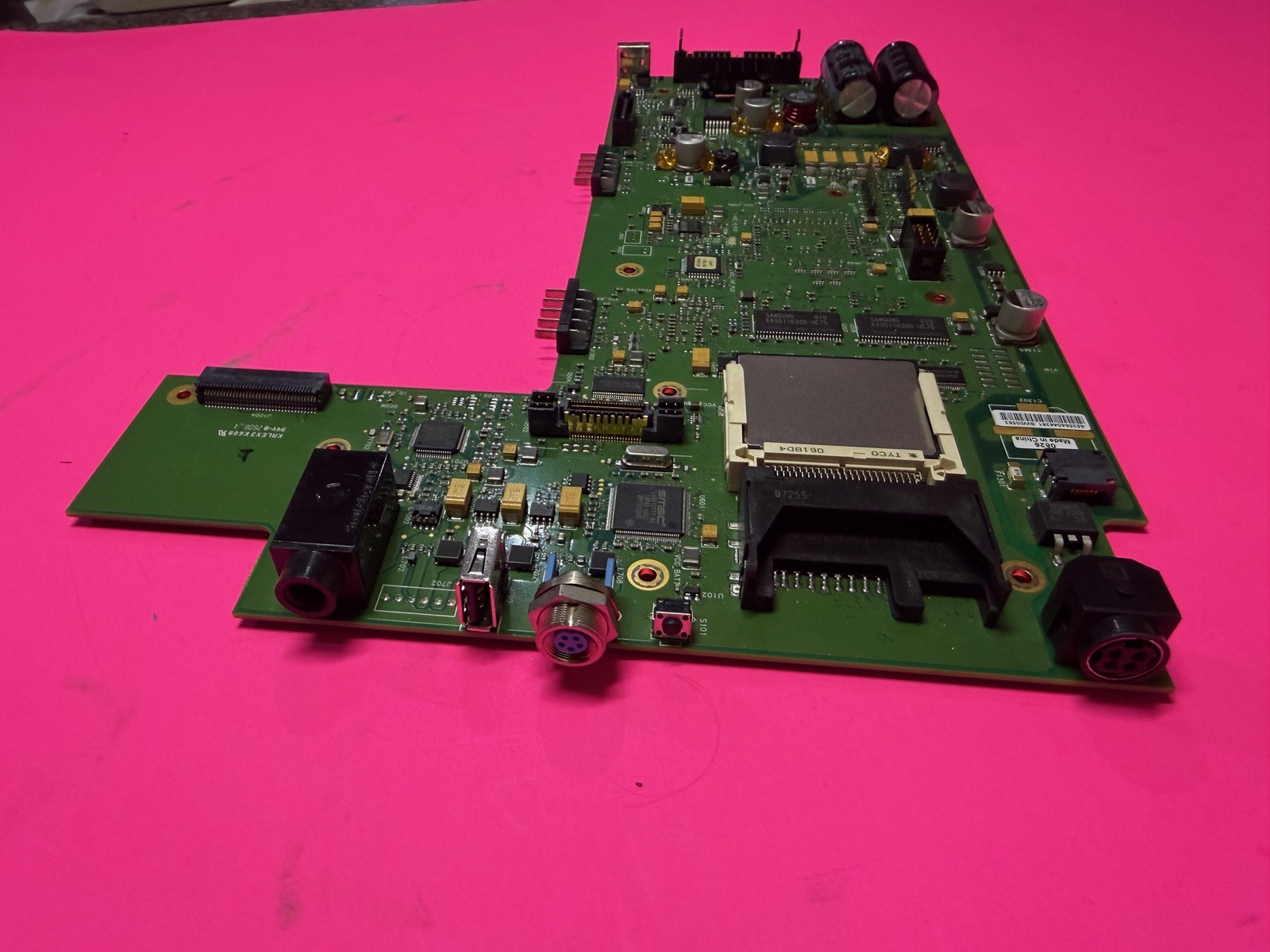

Philips Pagewriter TC70 Mainboard Main Board OEM 453564044381 45356409421Philips PageWriter TC70 GENUINE OEM Mainboard Tested fully - see photos.
<---- Pulled from the working TC70 machine in the photos to the left
FW Version 1.6.4
216 MB RAM
It is a genuine original equipment manufacturer (OEM) main control board (motherboard / mainboard / PCA main board) for the Philips PageWriter TC70 cardiograph (an electrocardiograph / ECG / EKG machine).
Key details about the main board- It is built around a Marvell PXA270 embedded processor with extensive I/O capabilities and runs Windows CE 5.0.
- It holds the loader software and Windows CE kernel image in internal flash memory (64 MB).
- The PageWriter TC70 application software runs on this board and supports the display, user-input subsystems, and interfaces (e.g., CompactFlash wireless LAN, USB, PS/2 for barcode readers, modem phone connector, RJ45 LAN).
- A related FPGA-based print controller is embedded in/on the main board for real-time printer management.
Official Philips service/repair documentation commonly lists the main board replacement part number as 453564094221electrocard
.Know What You are Buying
- We take the time to post actual pictures of the unit you are buying
- We also take the time to thoroughly test the units we are selling
- Buy with CONFIDENCE from a reputable seller with 25 Years experience
