Permanent magnet DC brush motor controller 10A 15A 1KW 1.5KW controller:
$42.00

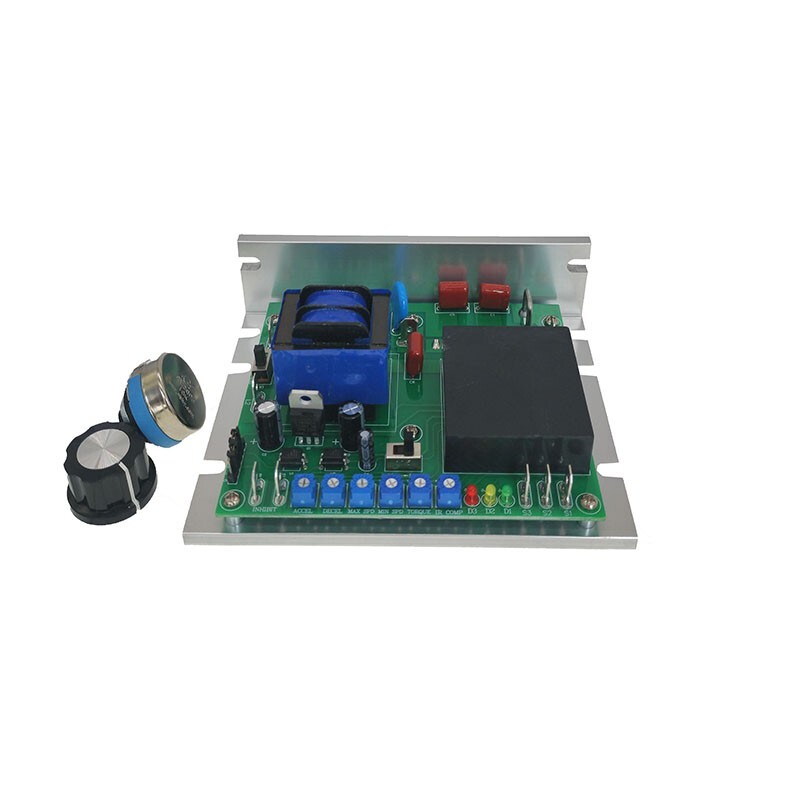

Permanent magnet DC brush motor controller 10A 15A 1KW 1.5KW controller
Product characteristics:
1. Input voltage: 115/230VAC ±10%;2. Output voltage: 0-220VDC;3. Output current: 15AMAX, when the continuous working current is greater than 8A, a radiator is required;4. Control method: potentiometer 2W10KΩ;5. Speed ratio: 50:1;6. Acceleration and deceleration time: 1-5S;7. Input impedance: >100KΩ;8. Working environment: ≤80%RH, no condensation, -10~50°;9. The weight is about 0.6kg;10. It is suitable for permanent magnet DC brush motor with driving power not greater than 2000W;
SpecificationInput voltage AC:115V/230V±10% (other voltages can be customized as customer’s voltage DC:0~90V 0-110V 0-160V 0-180V 0-220V (can be set)Rated output current:15ARevolving speed ratio:≤0.1%Environment temperature:-10℃～+60℃Insulation voltage resistance:1500V ACInsulation resistance:>500MΩEnvironment humidity:relative humidity ≤65% (no moisture condensation)Packing & Delivery
