PWM DC Brush Motor Speed Regulator 12V 24V 48V 20A Waterproof Controller 10-60V For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

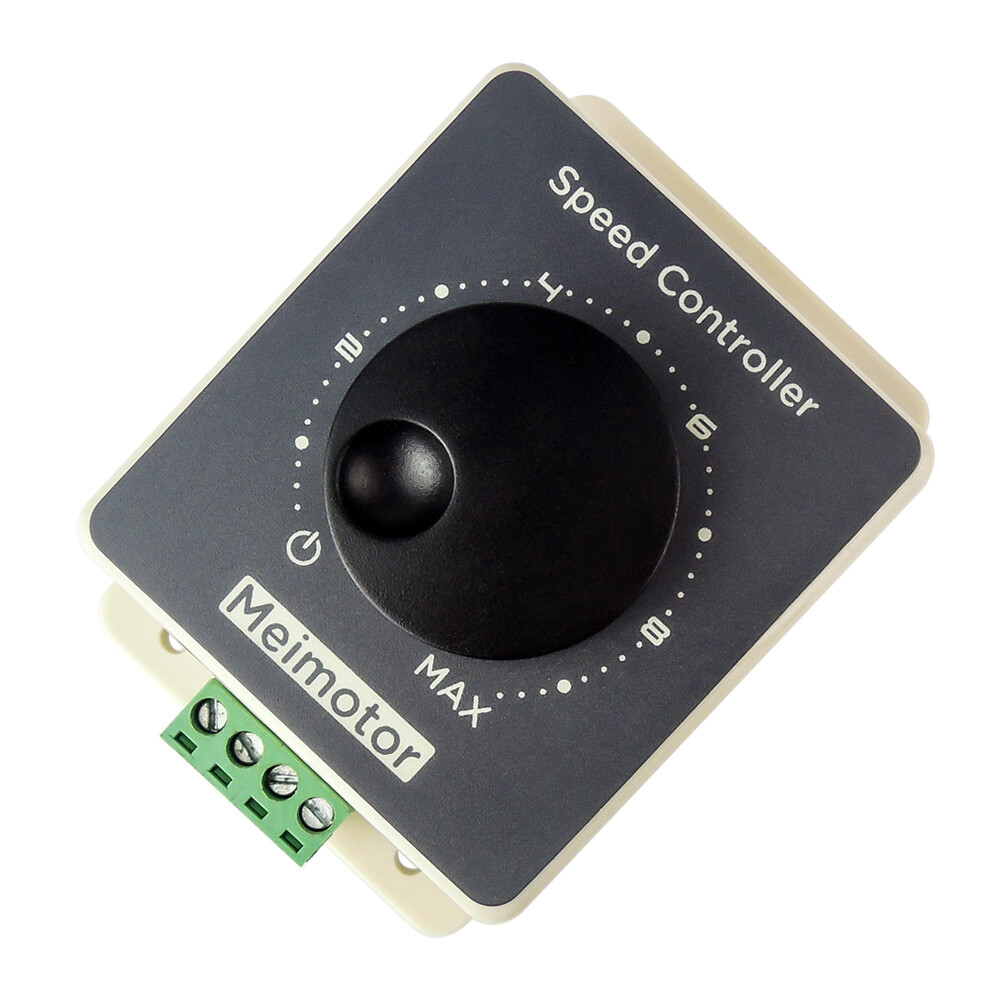

PWM DC Brush Motor Speed Regulator 12V 24V 48V 20A Waterproof Controller 10-60V:
$8.82

PWM DC Brush Motor Speed Regulator 12V 24V 48V 20A Waterproof Controller 10-60V
Parameters:

• Model: CCM96SK
• Input voltage: DC 10-60V
• The output voltage is about 0-100% of input voltage
• Power: 12v*10A=120w, 24v*10A=240w,.................
• Rated current: 10A
• Maximum current: 20A
• Potentiometer:Resistance B100K , Opening hole 8mm
• Speed range: 5%-100%
• PWM frequency: 25kHz
• Dimensions: 88mm * 59mm * 35mm / 3.4" * 2.3" * 2.3"

Package Includes:

1 x DC motor controller

---

---

---

12V-40V 10A PWM DC Motor Speed Controller, Voltage Regulator Dimmer Switch

$3.99

---

PWM DC Motor Speed Controller, DC 10-55V MAX 100A, Stepless Brushed Motor

$43.99

---

150A DC 12V 24V reversible DC motor Driver speed controller PWM 50V arduino

$164.90

---
