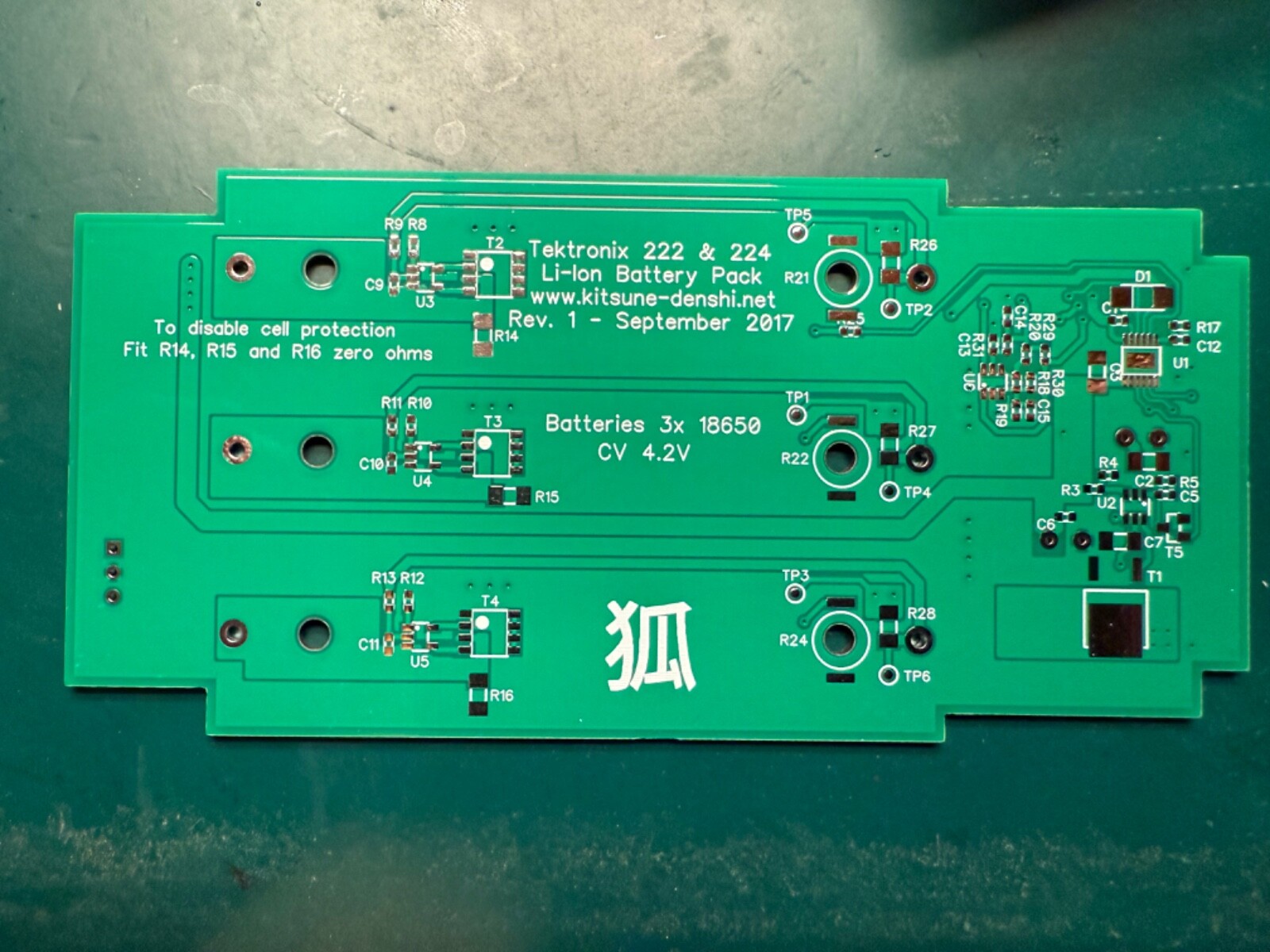

One Bare PCB for Tektronix 222/222PS/224 Battery pack:
$15.75
This sale is for one BARE printed circuit board which can be used to build an after-market battery module.Details and can be found here:[link removed by ](If the above link has been deleted by , please let me know and I'll include it with the PCB. Unfortunately doesn't allow me to post the link or ask you for an email so I can send it to you.)This sale is only for the bare printed circuit board. It does NOT include any of the electronics components, housing or oscilloscope. I have the housing available separately on another listing in either Yellow or Green (depending on the oscilloscope you have). I will send a link with the PCB that allows you to order one set of the parts necessary from Digikey (except for the battery cells).
(The third photo shows the orientation of the Schottky diodes and LEDs)
The electronics designs are credited to the work done by Kitsune-Denshi Inc. Licensed under the Creative Commons Attribution-ShareAlike License.
