On eBay Now...New Take Out, ABB XT1HU3020AYD000XXX 480VAC, 20A, 3P, Reliagear neXT For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

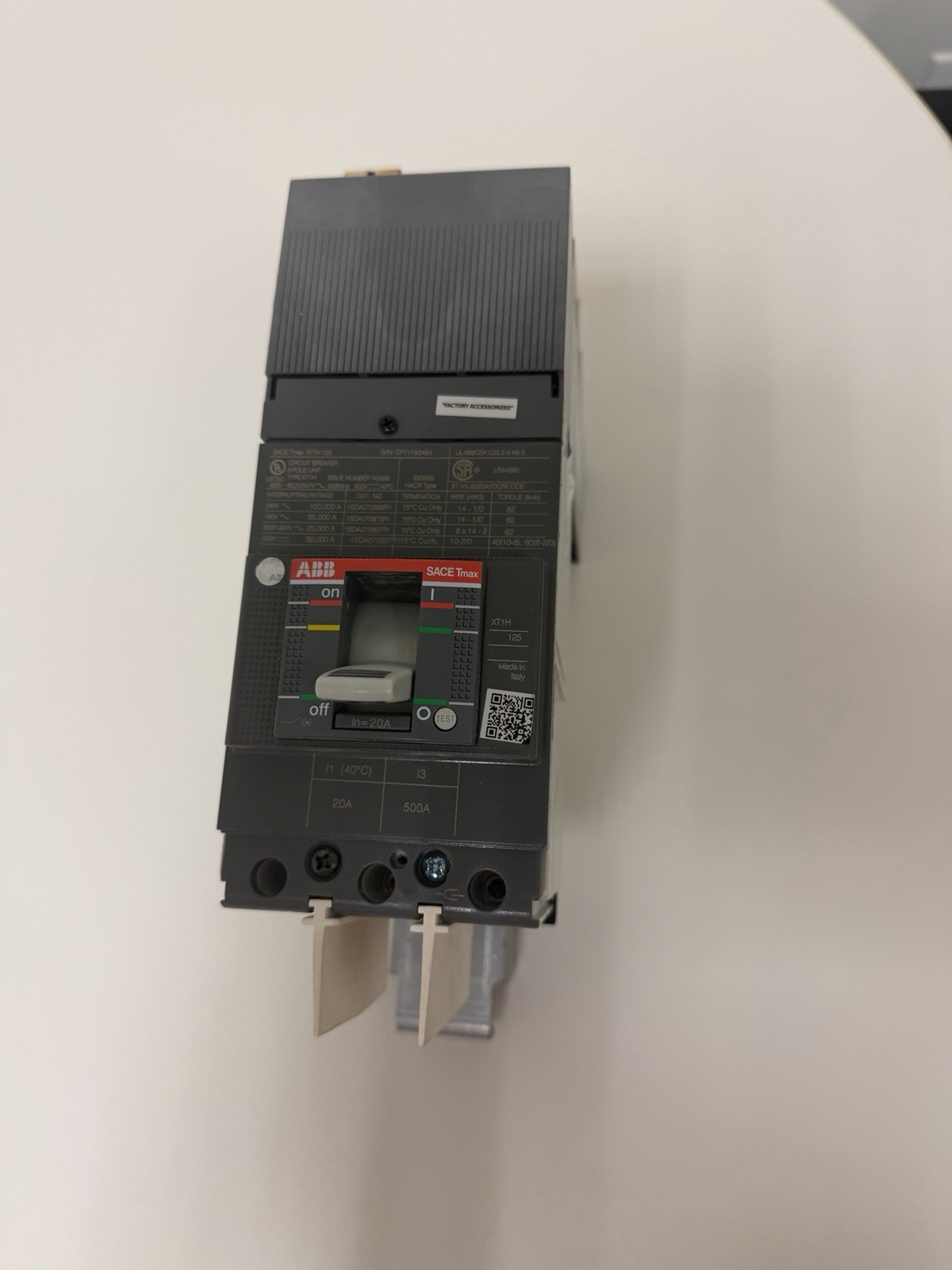

New Take Out, ABB XT1HU3020AYD000XXX 480VAC, 20A, 3P, Reliagear neXT:
$175.00
XT1HU3020AYD000XXXXT1HU3020AYD000XXX is a 3-pole molded case circuit breaker from ABB with 20A rating and 600V AC voltage.
This ABB T-Max series XT1 frame breaker features thermal magnetic trip protection and front flat terminals for reliable overcurrent protection in industrial and commercial applications. It offers interrupting ratings of 65kA at 480V and 25kA at 600V.
Key Specifications
- Manufacturer: ABB
- Part Number: XT1HU3020AYD000XXX
- Frame Size: XT1
- Poles: 3
- Amperage: 20A
- Voltage: 600V AC
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 65kA@480V, 25kA@600V
- Terminals: Front Number: XT1HU3020AYD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1HU
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Protection : Thermal Magnetic
- Country of Origin : United States
- Weight : 5 lb
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
