New Focus 1422 Traveling-Wave Amplifier, 50 MHz to 20 GHz For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

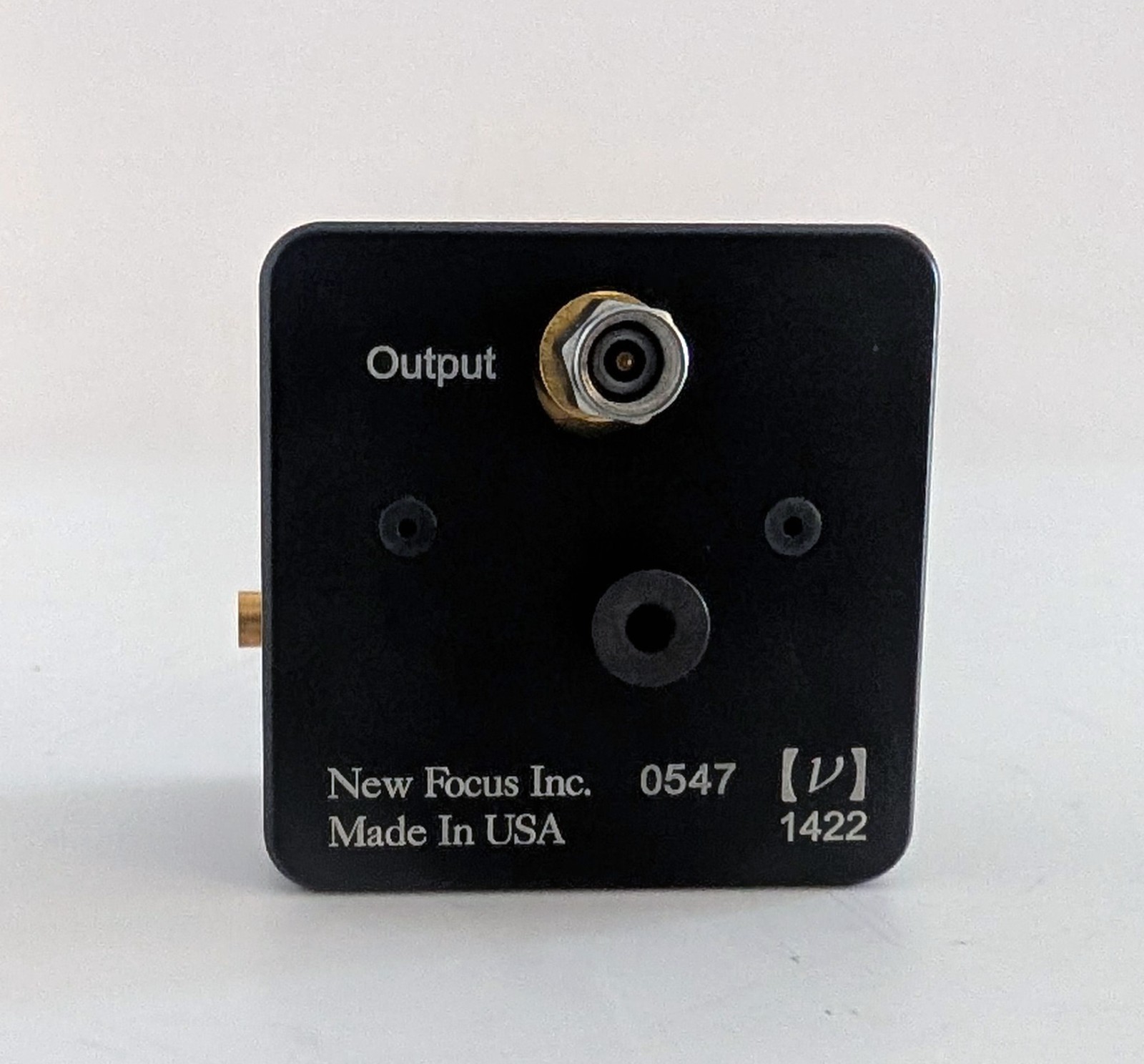

New Focus 1422 Traveling-Wave Amplifier, 50 MHz to 20 GHz:
$1350.00

• Frequency Response: 50 MHz to 20 GHz
• Nominal Gain: 18 dB
• Gain Flatness: ±2 dB
• Impulse Response: 25 ps
• Input / Output Impedance: 50 Ω (with Wiltron K-connectors)
• Noise Figure: 8 dB
• Power Requirements: ±15 V, <300 mA

Housed in a compact, black anodized casing where the internal microwave amplifier housing floats freely to allow precise alignment of RF K-connectors.

Includes a built-in captive mounting screw designed to fasten directly and securely onto New Focus 10XX or 14XX series photodetector modules.

---

---

---
