New Eaton 2\" Flanged Type ST Gas/Liquid Separator w/ Integral Trap ST-5 / ST5CC:
$299.98

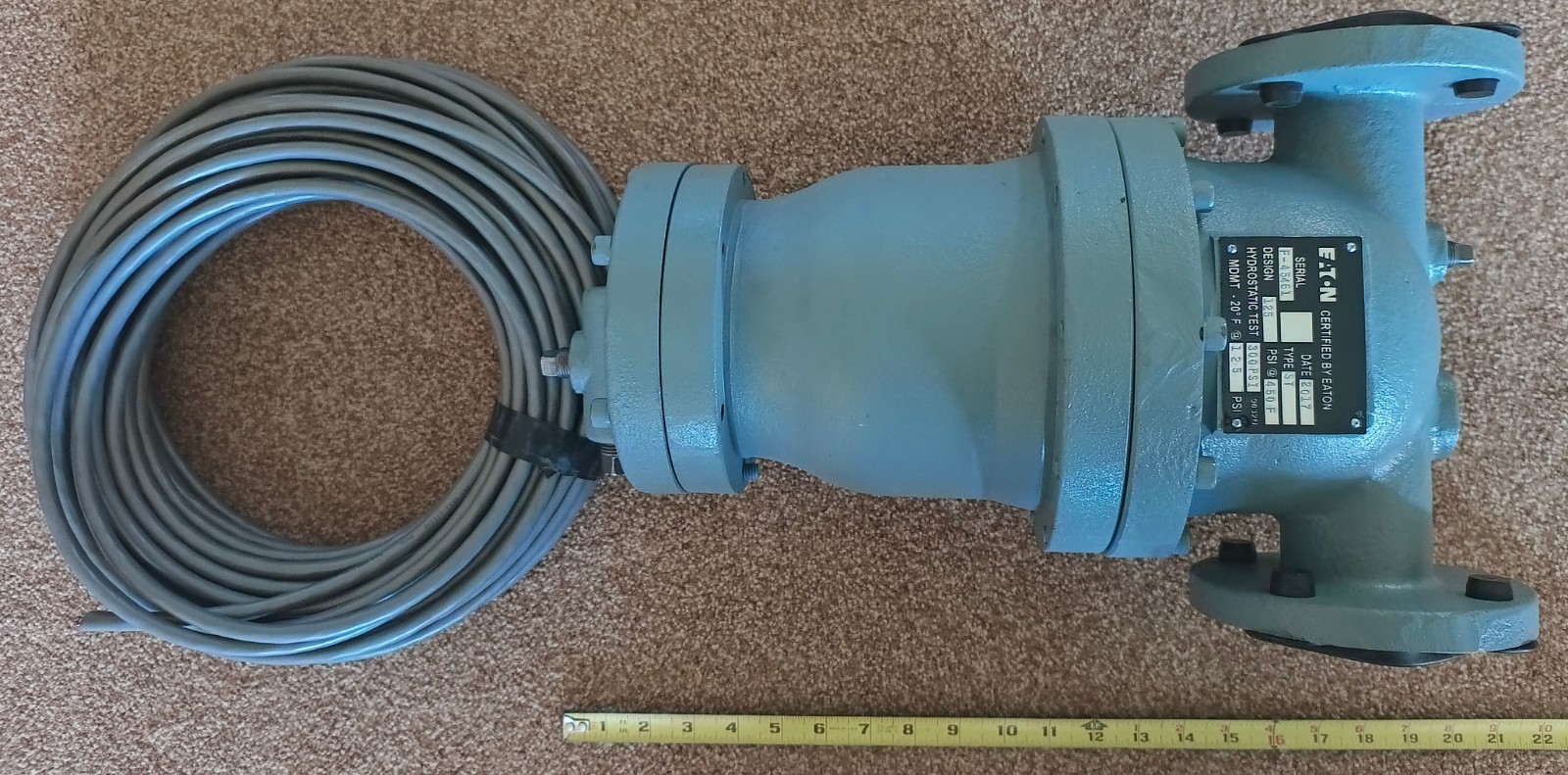

New Old Stock Eaton 2\" Flanged Type ST Gas/Liquid Separator with Integral Trap - Pristine Condition

Rare NOS (New Old Stock) Eaton Type ST Gas/Liquid Separator - 2 inch ANSI flanged industrial filter, manufactured in 2017 and stored in its original packaging ever since (I\'ll be shipping it in new and improved packaging). This high-performance in-line separator automatically removes 99% of all liquid and solid entrainment particles 10 microns or larger from air, gas, or steam processes, protecting downstream equipment like compressors, turbines, and pipelines from moisture damage, erosion, and blockages. Ideal for industrial applications in HVAC, compressed air systems, natural gas lines, and chemical processing.

This unit is brand new in every way except for the manufacturing date—it\'s never been used, with all protective plugs intact and no signs of wear. It includes a 100 ft shielded control cable (ALPHA WIRE-NM P/N 6012C, 22 AWG, UL-rated for 75°C). Based on research into Eaton\'s filtration products, the cable is included to connect an optional liquid level switch or sensor integrated into the separator. This allows remote monitoring and automatic control of liquid accumulation in the integral trap, signaling when to drain or alerting to high levels to prevent overflow—perfect for automated systems in remote or hazardous environments.

Key features:

Compact Design: Cast iron construction for durability, with 2\" flanged connections (ANSI 125 lb flat face flanges: 6\" face diameter, 11/16\" thick, 4 bolt holes each).
High Efficiency: Vortex containment plate ensures separated liquids/particles stay trapped, even at high flow rates.
Versatile Installation: Can be line-supported, horizontal or vertical orientation.
No Moving Parts: Maintenance-free operation, no filters to replace.
Accessories Included: Black plastic flange protectors (Alliance Plastics Co., Size Codes 300-2/400-2/600-2) and the full 100 ft cable for immediate setup.

This separator ships in new, improved protective packaging to ensure safe delivery. Dimensions: 19\" x 10 1/2\" x 8 1/4\". Weight: 70 lbs 13 oz. Returns accepted within 30 days (I\'ll cover return shipping).

Specifications

Manufacturer: Eaton
Model/Type: ST (Gas/Liquid Separator with Integral Trap), Variant: 2\" ST-5 / ST5CC
Other Number: 9032N
Design Pressure: 125 PSI
Maximum Operating Pressure @ Temperature: 125 PSI @ -20°F to 450°F
Hydrostatic Test Pressure: 300 PSI
Minimum Design Metal Temperature (MDMT): -20°F @ 125 PSI
Filtration Performance: Removes 99% of liquid and solid particles ≥10 microns
Construction Material: Cast Iron
Connection Size: 2\" Flanged (ANSI 125 lb Flat Face)
Flange Details: Face Diameter: 6\", Thickness: 11/16\", Bolt Holes: 4 per flange
Flow Direction: Indicated by arrow on body
Integral Trap: Yes, for collecting separated liquids with drain option
Cable Specifications: ALPHA WIRE-NM P/N 6012C APR 22 AWG Shielded 75C (UL) Type CMG or AWM 2493 -C (UL) CMG FT4 ROHS 022317 1335 222; Length: Approximately 100 ft; Purpose: Connects to liquid level switch/sensor for remote level monitoring/control
Embossed Markings:
- Separator Body: 08 01 16 (Date), 2\" TYPE ST-5, EATON, C130, 2\" ST5CC, FK1
- Separator Body: EATON 07 08 13
- Separator Body: 9011CC C130, FP16
- Flow Arrow Area: 2\" TYPE \"T\", EATON, 2T1FCC (or 2T1FCC), C130 FP1 (or FP1), 11 01 18 (Date)
Protective Components: Black plastic flange caps (Alliance Plastics Co., Patent US 4014368), red drain plug, and other caps intact
Dimensions: 19\" (Length) x 10.5\" (Width) x 8.25\" (Height)
Weight: 70 lbs 13 oz
Certification: Certified by Eaton
Manufacture Year: 2017
Applications: Compressed air drying, natural gas moisture removal, steam line protection, industrial gas processing; prevents erosion in turbines/pumps
Maintenance: No moving parts; periodic draining of trap recommended
Compatibility: Suitable for air, gas, steam; not for corrosive fluids without verification
