Nema 34 4.5N.m 8.5N.m 12N.m Integrated Closed Loop Stepper Motor 1000 line φ14mm:
$118.50

Nema 34 4.5N.m 8.5N.m 12N.m Integrated Closed Loop Stepper Motor 1000 line φ14mm

Package included:

1 x Nema34 4.5N.m or 8.5N.m or 12N.m Integrated Closed loop Stepper Motor

100% Brand New and High Quality!!!

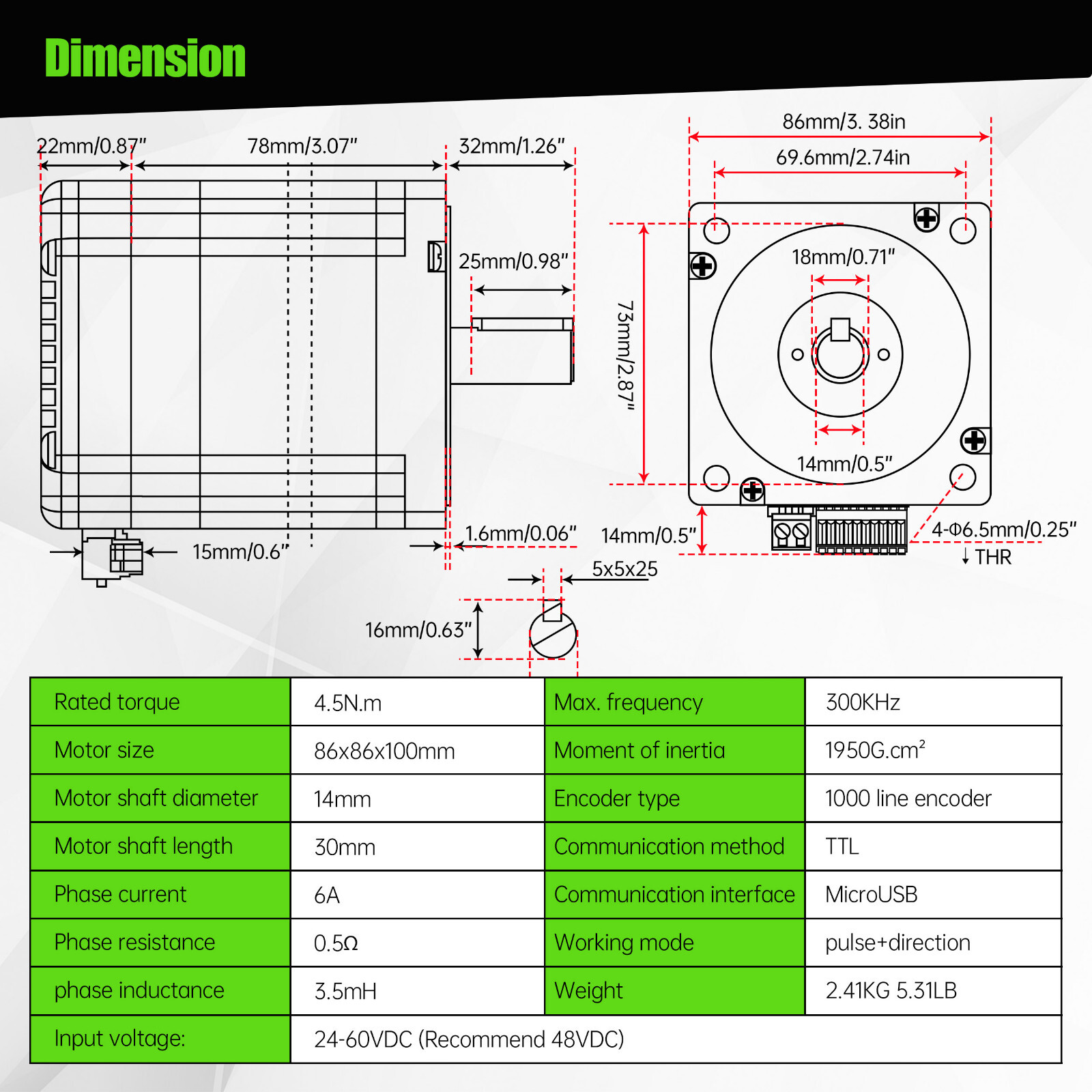

4.5Nm:

Package include

1 x Nema34 4.5N.m Integrated Closed loop Stepper Motor

Rated torque4.5N.mMotor size86x86x100mmMotor shaft diameter14mmMotor shaft length30mmInput voltage24-60VDC (recommend 48VDC)Phase current6APhase resistance0.5ΩPhase inductance3.5mHMax. frequency300KHzMoment of inertia1950G.cm²Encoder type1000 lineWorking modepulse+directionWeight2.41KG 5.31LB

Communication function: It is a new motor-driven integrated stepper motor drive system with communication function;
Communication method: TTL;
Communication interface: MicroUSB

TTL MicroUSB Port Function

This port is exclusively designed for initial setup and fine-tuning of motor internal parameters (e.g., current, microstepping, loop gains) using the our debugging software. It does NOT support real-time motion control commands (run/stop/position/speed).

The motor’s standard & industrial-grade real-time control is realized via the Pulse + Direction (PUL+/PUL-/DIR+/DIR-) high-speed signal interface, which is fully compatible with PLC, motion controllers, and microcontrollers.

You can set 400-40000 Microstep through the dip switch

The vector control is designed and produced using an ARM processor with a DSP core, which has the characteristics of low cost, full closed-loop, all digital, low heat generation, low vibration, and fast response.
Including three adjustable feeding back loop controls (position loop, speed loop, and current loop)

The integrated closed-loop stepper motor integrates the closed-loop stepper motor driver into the stepper motor, and the two are integrated,no need to use a separate driver.

8.5Nm:

Package include

1 x Nema34 8.5N.m Integrated Closed loop Stepper Motor

Rated torque8.5N.mMotor size86x86x135mmMotor shaft diameter14mmMotor shaft length30mmInput voltage24-60VDC (recommend 48VDC)Phase current6APhase resistance0.6ΩPhase inductance2.5mHMax. frequency300KHzMoment of inertia2800G.cm²Encoder type1000 lineWorking modepulse+directionWeight3.82KG 8.4LB

You can set 400-40000 Microstep through the dip switch

The vector control is designed and produced using an ARM processor with a DSP core, which has the characteristics of low cost, full closed-loop, all digital, low heat generation, low vibration, and fast response.
Including three adjustable feeding back loop controls (position loop, speed loop, and current loop)

The integrated closed-loop stepper motor integrates the closed-loop stepper motor driver into the stepper motor, and the two are integrated,no need to use a separate driver.

12Nm:

Package include

1 x Nema34 12N.m Integrated Closed loop Stepper Motor

Rated torque12N.mMotor size86x86x176mmMotor shaft diameter14mmMotor shaft length30mmInput voltage24-60VDC (recommend 48VDC)Phase current6APhase resistance0.7ΩPhase inductance3.2mHMax. frequency300KHzMoment of inertia4950G.cm²Encoder type1000 lineWorking modepulse+directionWeight5.55KG 12.23LB

TTL MicroUSB Port Function

You can set 400-40000 Microstep through the dip switch

The vector control is designed and produced using an ARM processor with a DSP core, which has the characteristics of low cost, full closed-loop, all digital, low heat generation, low vibration, and fast response.
Including three adjustable feeding back loop controls (position loop, speed loop, and current loop)

The integrated closed-loop stepper motor integrates the closed-loop stepper motor driver into the stepper motor, and the two are integrated,no need to use a separate driver.
