NIB - GE - SFHA36AT0250 - Molded Case Circuit Breaker - 250A, 3-Phases, 600V For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

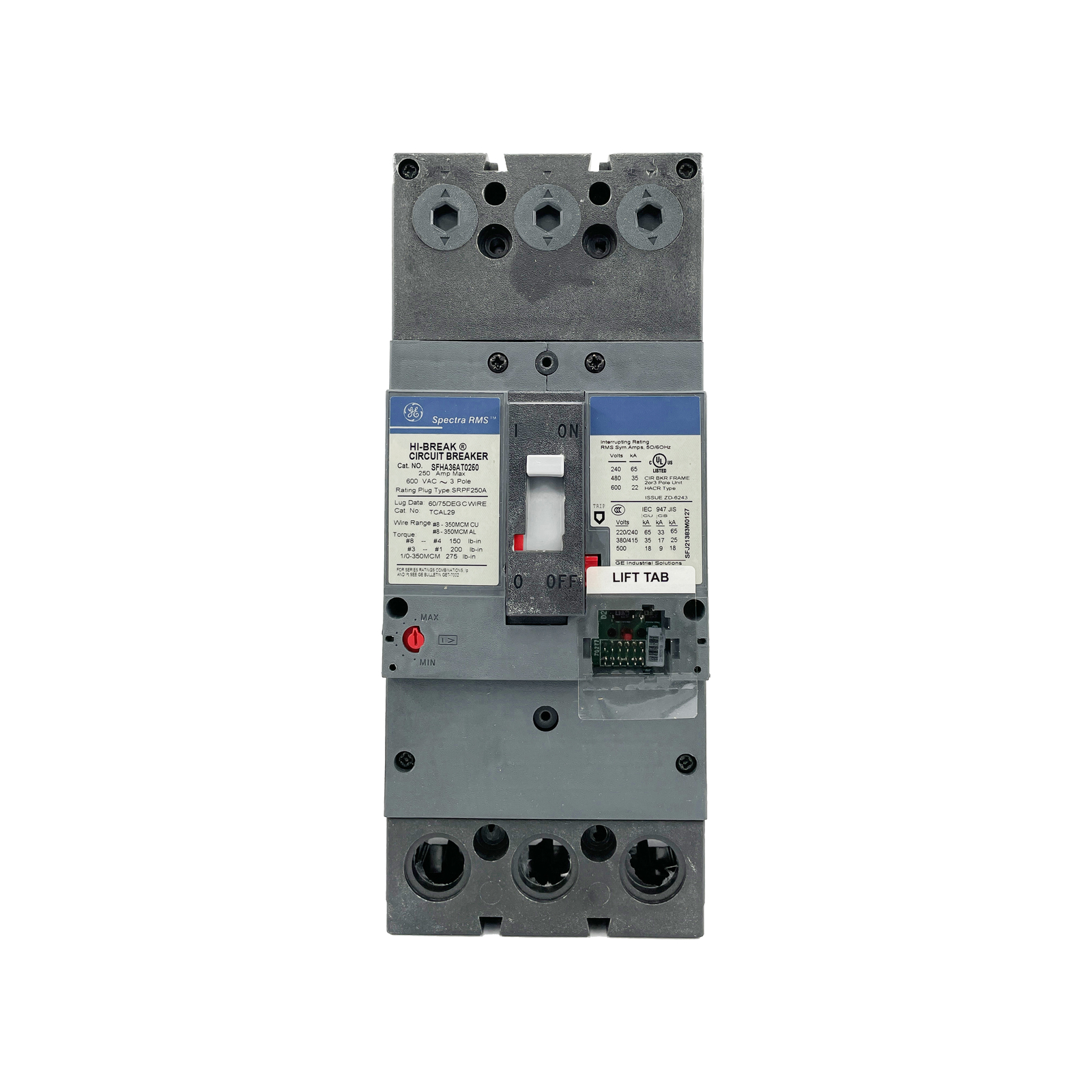

NIB - GE - SFHA36AT0250 - Molded Case Circuit Breaker - 250A, 3-Phases, 600V:
$750.00

NIB - GE - SFHA36AT0250 - F Frame 3 Pole 25Ka Circuit Breaker

The Spectra RMS™ Molded Case Circuit Breaker features a digital, solid-state, RMS sensing trip system with field-installable, front-mounted rating plugs. It comes with adjustable instantaneous with tracking short-time as standard and supports multiple ampere ratings and system voltages.

Trip Style: Interchangeable
Poles: 3
Amperage:
70A
80A
90A
100A
110A
125A
150A
175A
200A
225A
250A
System Voltage:
120 Vac
120/240 Vac
240 Vac
277 Vac
480 Vac
600 Vac
Frame Type: SF250
Interrupting Rating:
120 Vac: 65 KAIC
120/240 Vac: 65 KAIC
240 Vac: 65 KAIC
277 Vac: 35 KAIC
480 Vac: 35 KAIC
600 Vac: 22 KAIC
Trip Function: LSI
Continuous Current Rated: Standard
Suitable for Reverse Feed: Yes
Lugs: TCAL29
Long Time: Fixed
Short Time: Adjustable
Instantaneous: Adjustable
Current Metering: No
Protective Relays: No
Special Markings: HACR
GSA Compliance: No
