NEW Parker Daedal PEN090-005 Precision Planetary Gearhead 5:1 Ratio 90mm Frame For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

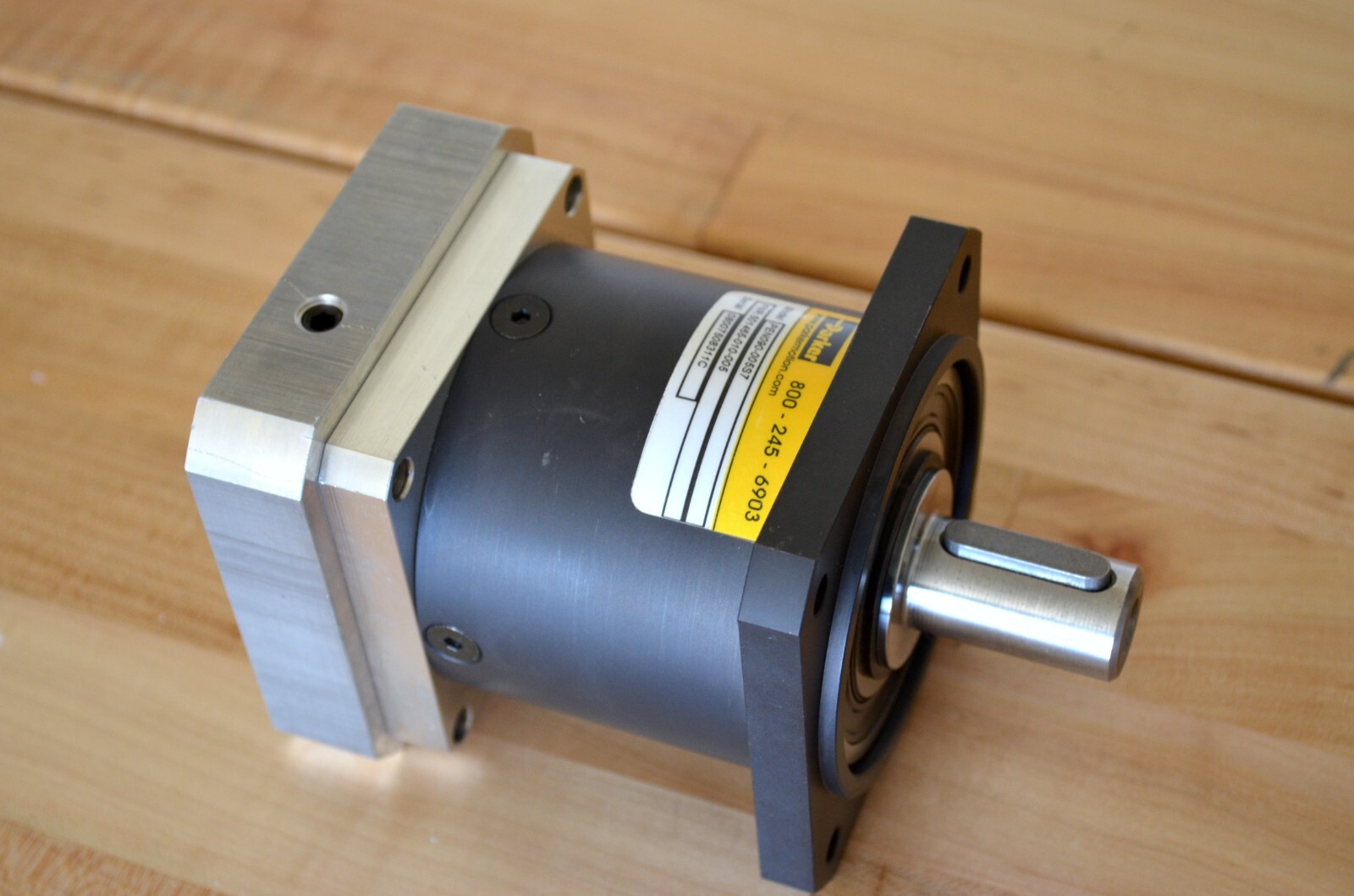

NEW Parker Daedal PEN090-005 Precision Planetary Gearhead 5:1 Ratio 90mm Frame:
$340.00

Item Specifics:

New Parker PEN090-005S7

Precision Planetary Gearhead

5:1 Ratio , 90mm Frame

Output shaft = 20mm w/ key

Input Shaft = 14mm dia.

Item Description:

This is a new Parker precisionplanetary

gearhead that is in perfect working condition.

It is a modelPEN090-005 (ratio 5:1)

Output shaft is 20mm dia. w/ 6mm key.

Inputshaft diameter is 14mm.

The frame size of the gearhead is 90mm

(see photos for mounting dimensions)

PEN090-005S7 Spec's:

Rated Output Torque = 442.5 in-lbs (50 Nm)

Peak Output Torque =885 in-lbs (100 Nm)

Rated Input Speed = 4,000 rpm's

Max Input Speed = 6,000 rpm's

Average Efficiency = 96%

Torsional Stiffness = 4.5 Nm/arc-min

Radial Load = 2,500 N

Axial Load = 2,800 N
