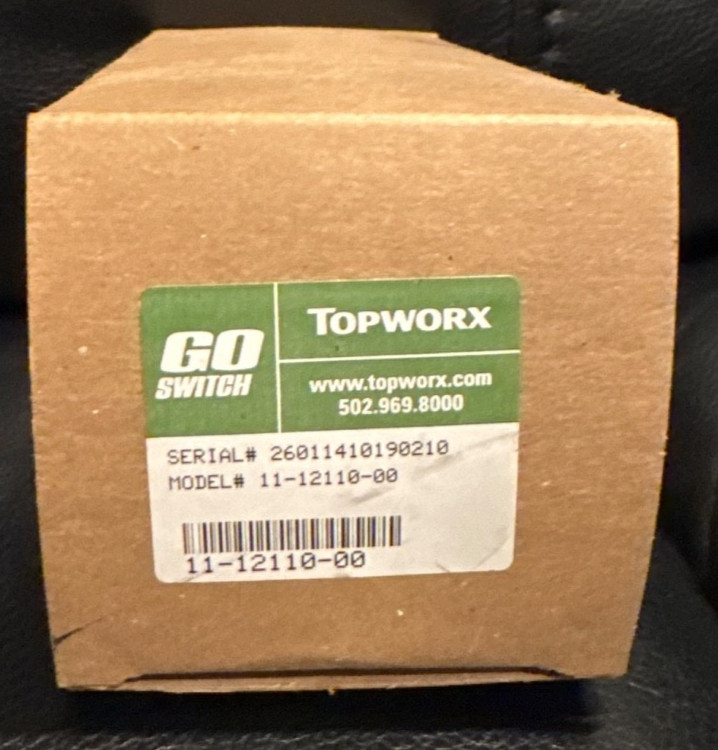

NEW IN BOX TOPWORX 11-12110-00 / 111211000 (BRAND NEW):
$205.00

The TopWorx 11-12110-00 Proximity Switch is a brand new, high-quality switch designed for automotive applications. With a maximum amperage of 10 A and made from durable stainless steel material, this switch is suitable for interior use. The sensor style switch is perfect for detecting the presence of nearby objects, making it a reliable choice for your electrical equipment needs. Made in China, this switch is a reliable and efficient option for your business and industrial requirements.

---

---

---
