NEW GE ITI PTG5-2-110 Voltage Transformer 12470:120V 1500VA w/ 2 Bussmann Fuses For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

NEW GE ITI PTG5-2-110 Voltage Transformer 12470:120V 1500VA w/ 2 Bussmann Fuses:
$1695.00

GE ITI Voltage Transformer PTG5-2-110-SD02293FF, 12,470 V : 120 V, 1500 VA, with Two Eaton Bussmann Fuses

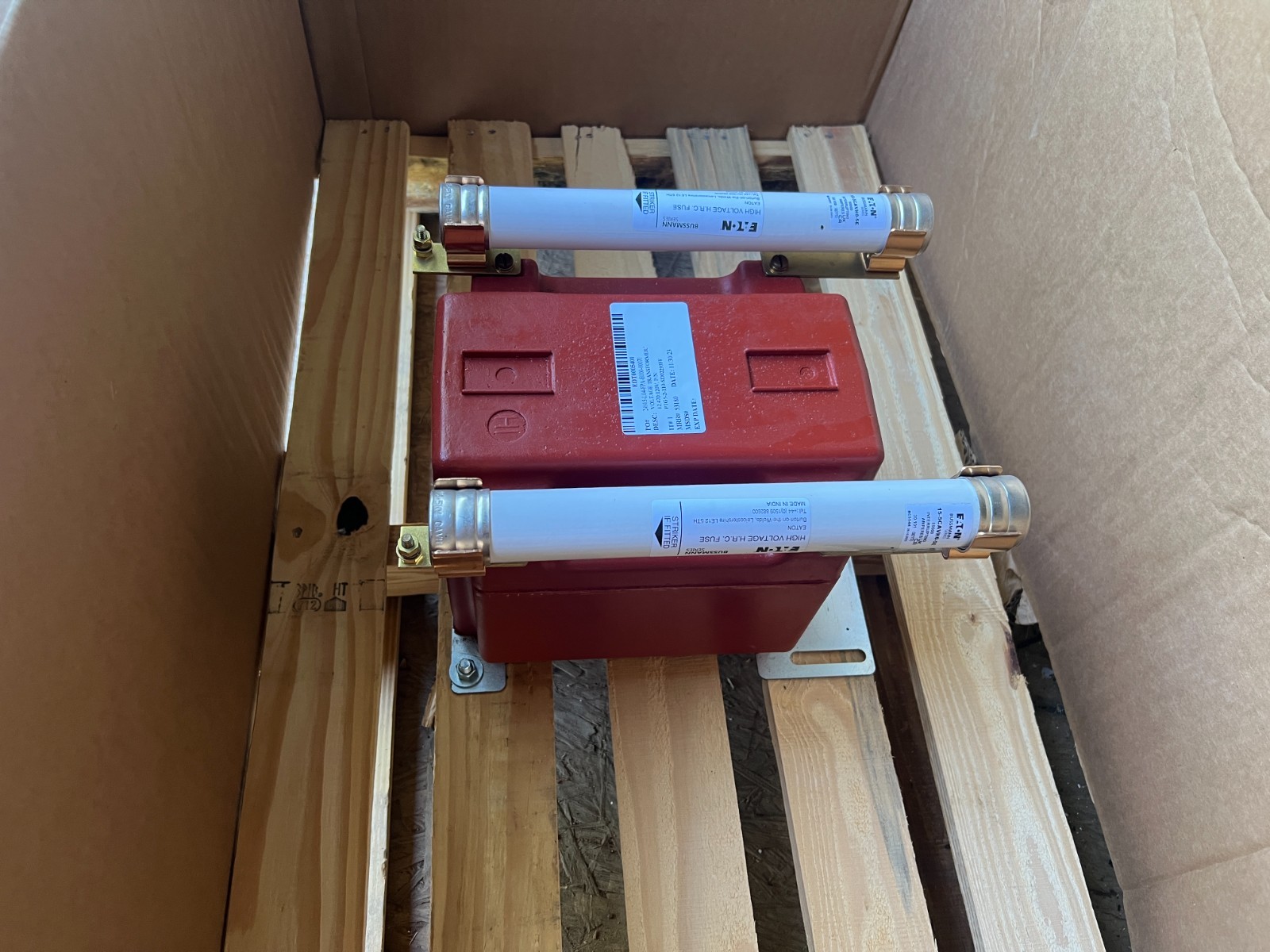

New surplus, never installed. Single-phase indoor voltage (potential) transformer with two primary fuses factory-mounted on the unit, as shown in the photos.

TRANSFORMER SPECIFICATIONS

Manufacturer: Instrument Transformers, LLC (GE ITI)
Model / part number: PTG5-2-110-SD02293FF
Primary voltage: 12,470 V
Secondary voltage: 120 V
Ratio: 103.92 : 1
Rating: 1500 VA at 30°C
Accuracy class: 0.3Z
BIL: 110 kV
Frequency: 60 Hz
Single phase, cast epoxy housing (red), with mounting base plates
Clear cover over secondary terminals
Made in USA, UL/CSA marked

FUSES (2 INCLUDED, MOUNTED)

Eaton Bussmann Series 15.5CAVH0.5E (label reads 15-5CAVH0-5E)
High voltage H.R.C. fuse, 0.5E, with striker
80,000 A interrupting rating
Made in India, 2023 date codes

CONDITION
New surplus, never installed. Opened box for inspection and photos. Not tested. No known defects. Light handling or storage marks are possible. Please see photos for exact condition. The original GE ITI carton and pallet show shipping wear, so I will reinforce and shrink wrap it for freight.

SHIPPING / PICKUP
Palletized freight item, approximately 120 lb, 41" × 25" × 21". Buyer arranges their own freight carrier or pickup. I can load it at a business location with a loading dock free of charge during business hours, or you may pick it up in person. Please message me before purchasing so we can schedule the pickup. I will reinforce the box and shrink-wrap it for LTL freight.I can help with all the details. Local pickup is welcome. Message me with questions and freight questions before buying.

PLEASE NOTE
For installation and use by qualified personnel only. Compare the part number and ratings with your application before purchasing. I’m happy to send additional photos.
