M10 x 1.25 x 30 MM (FT) Fine Class 12.9 Socket Hd Cap Screw Black Oxide For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

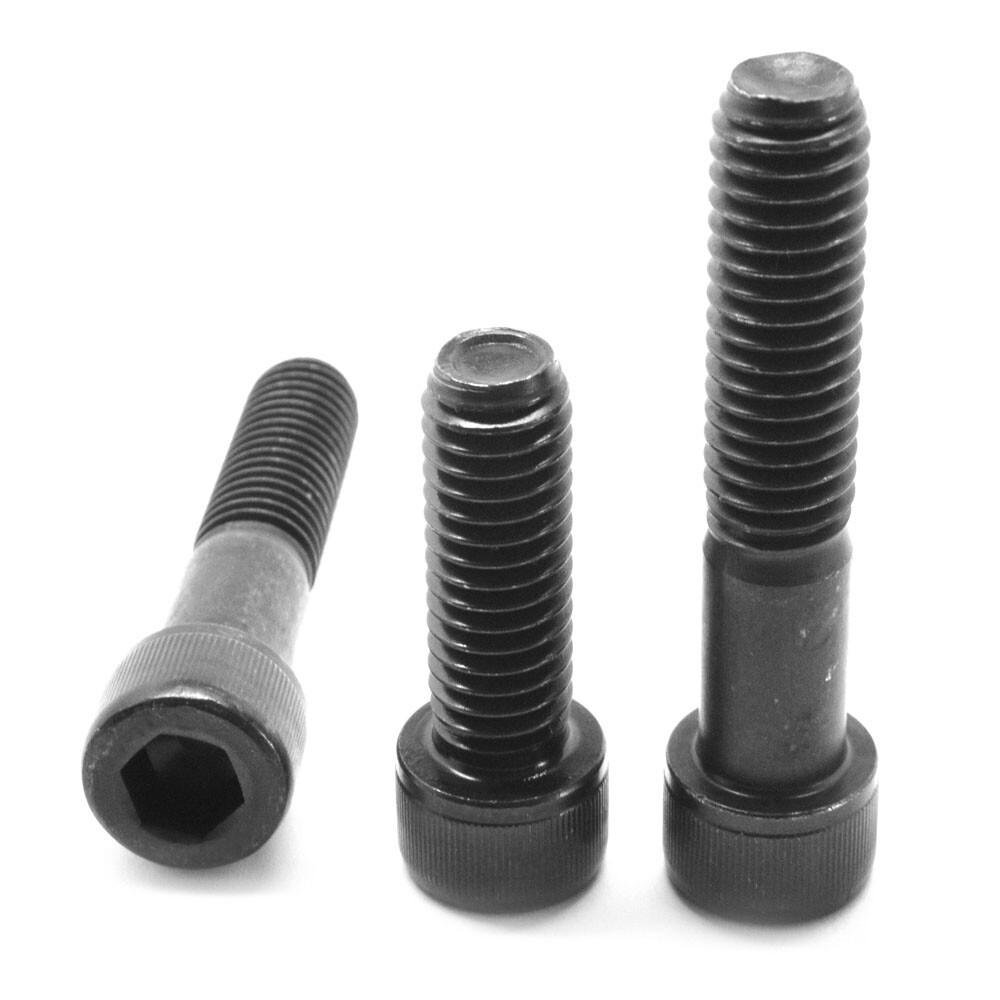

M10 x 1.25 x 30 MM (FT) Fine Class 12.9 Socket Hd Cap Screw Black Oxide:
$90.69

PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specsto whichthey are manufactured. Specs allow fortolerances in dimension and shape, which can vary from lot to lot. Please read the specifications in thetable belowbefore buying. If you have any questions, or if your requirements include specific dimensions, please contact us before buying.

Don't see what you need? Only a small portion of our inventory is listed on . Please call or contact us through messages withyour requirements. We respond to email quickly, and in most cases are able to make a listing with the part you need, in the quantity you need, in minutes!

PRODUCT SPECIFICATIONSPart #: 0000-117010Fastener Type: Socket Head Cap Screw
Size Description: M10 x 1.25 x 30 MM (FT)
Diameter/Nominal Size: M10
Length: 30 MM
Wrench Size/Across Flats: 8.025-8.110MM
Head Diameter: 15.73-16.27MM
Head Height: 9.64-10.00MM
Thread Pitch: 1.25
Thread Pitch Type: Fine
Thread Direction: Right
Thread Coverage: Full
System of Measurement: Metric
Property Class: 12.9
Material: Alloy Steel
Finish: Thermal Black Oxide
Head Type: Cylindrical
Drive Type: Internal Hex
Standards Met: ISO 4762 / DIN 912
Average Piece Weight: 0.0587800 lbs.

The socket screws category contains several different types of fasteners with one thing in common: an internal hex (allen) drive.Socket head cap screws are used in fastening or clamping components together, die castings, and machine assemblies, among other uses. Socket flat head cap screws are used in applications where countersinking is desired. Used when a flush finish is required for either safety or appearance requirements. Socket button head cap screws are used when appearance is a factor, and clamping material is too thin to countersink the screw. Examples are end panels, display shelving, and carts. Socket shoulder screws are used in many tool and die applications as well as stationary guides, pulley shafts, moving shafts, or pivots. Socket low head cap screws are used in applications where not enough clearance is available for a standard socket head cap screw. Set screws are used to fasten shaft collars, gears, and knobs on shafts or where frequent adjustments are involved. Socket screws are available in a variety of materials, such as high-strength alloy steel, and several different stainless steel alloys, among others.
