Lot of 5 New-NUCLEO-F767ZI development board For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

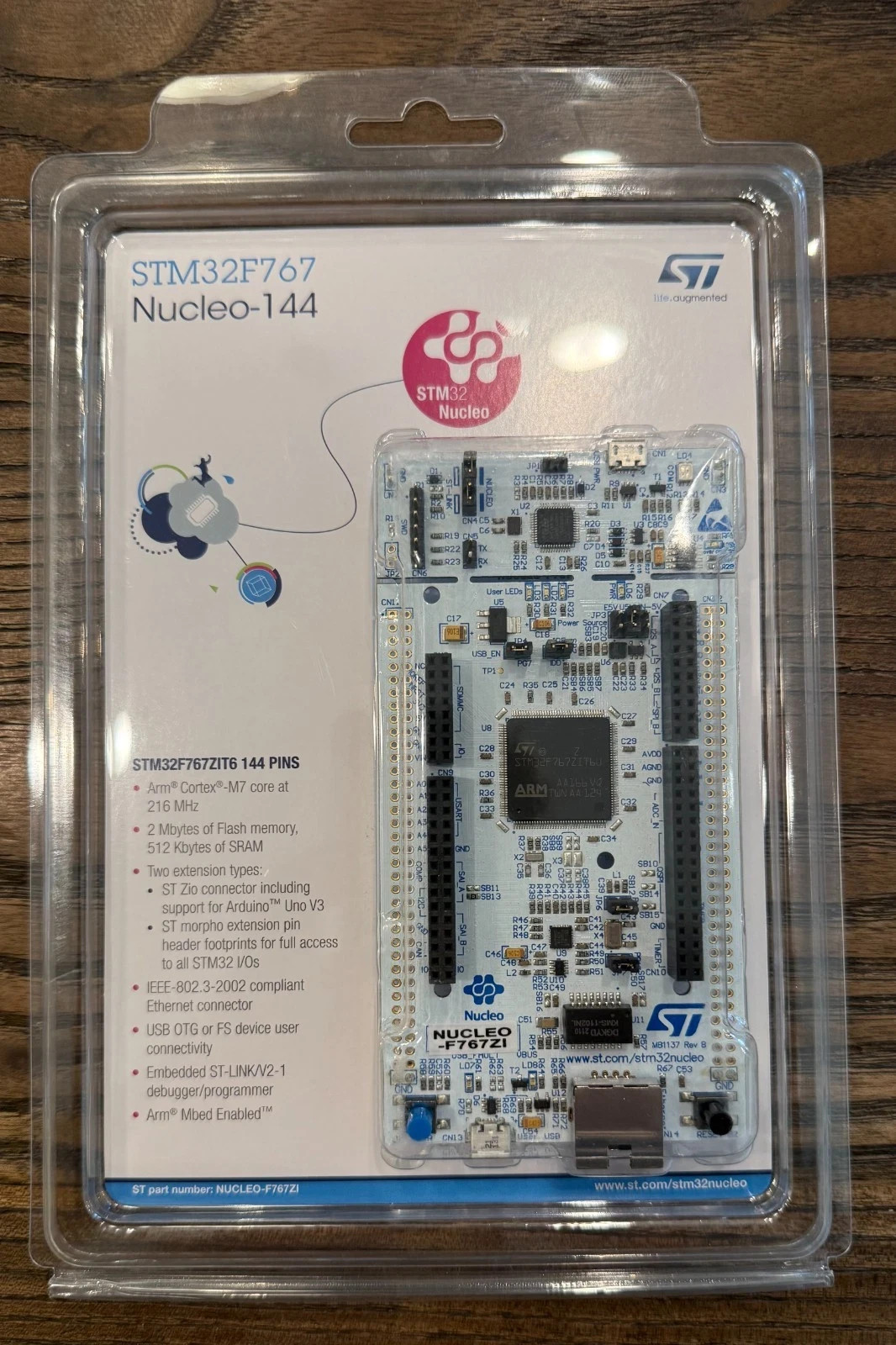

Lot of 5 New-NUCLEO-F767ZI development board:
$100.00

New-NUCLEO-F767ZI development boards
You get 5 of the boards when you buy it’s not just one when you buy it will be 100 with 10 shipping and you will get 5 OF THE BOARDS NOT 1
The NUCLEO-F767ZI development board Microcontroller Specs

• Core: ARM 32-bit Cortex-M7 with FPU, L1 cache (16 KB data + 16 KB instruction)
• Operating Frequency: Up to 216 MHz (462 DMIPS)
• Flash Memory: 2 MB
• RAM: 512 KB (comprising 256 KB of data RAM, 64 KB of ITCM RAM, 16 KB of DTCM RAM, and 4 KB of backup SRAM)
• Package: LQFP144

Debugging & Programming

• On-board ST-LINK/V2-1: Features an SWD connector
• USB Functions: Supports Virtual COM Port, mass storage (USB disk drive for drag-and-drop programming), and debug port

Interfaces & Connectivity

• Ethernet: IEEE-802.3-2002 compliant RJ45 connector (10/100 Mbps)
• USB: USB OTG Full Speed or USB Device with Micro-AB connector
• Expansion Headers:
  • Arduino Uno V3 connectivity
  • ST Zio connector (expands Arduino Uno V3)
  • ST Morpho extension pin headers (full access to all STM32 I/Os)

Power Supply & Management

• Flexible Power Options: ST-LINK VBUS (5V), USB connector (5V), or external sources (3.3V, 5V, 7-12V)
• Peripherals: Power management access point

Peripherals & User Controls

• User LEDs: 3 LEDs
• Buttons: 2 push buttons (USER and RESET)
• Oscillators: 32.768 kHz crystal oscillator

---

---

---
