Lot of 4 CCS Accu-CT ACT-1250-600 C0.6 600A 333mV Split Core Current Transformer:
$280.00

Lot of four (4) Continental Control Systems Accu-CT split-core current transformers.

Model: ACT-1250-600 Opt C0.6
Primary Current: 600A
Output: 0.333 VAC (333mV)
Accuracy: ANSI Class 0.6 / IEC Class 0.5S
Frequency: 50/60 Hz
Maximum Current: 720A
Voltage Rating: 600 VAC
Measurement Category: CAT IV
Type: Split-Core Current Transformer
Lead Length: Approximately 8 ft each
UL Listed
Assembled in USA

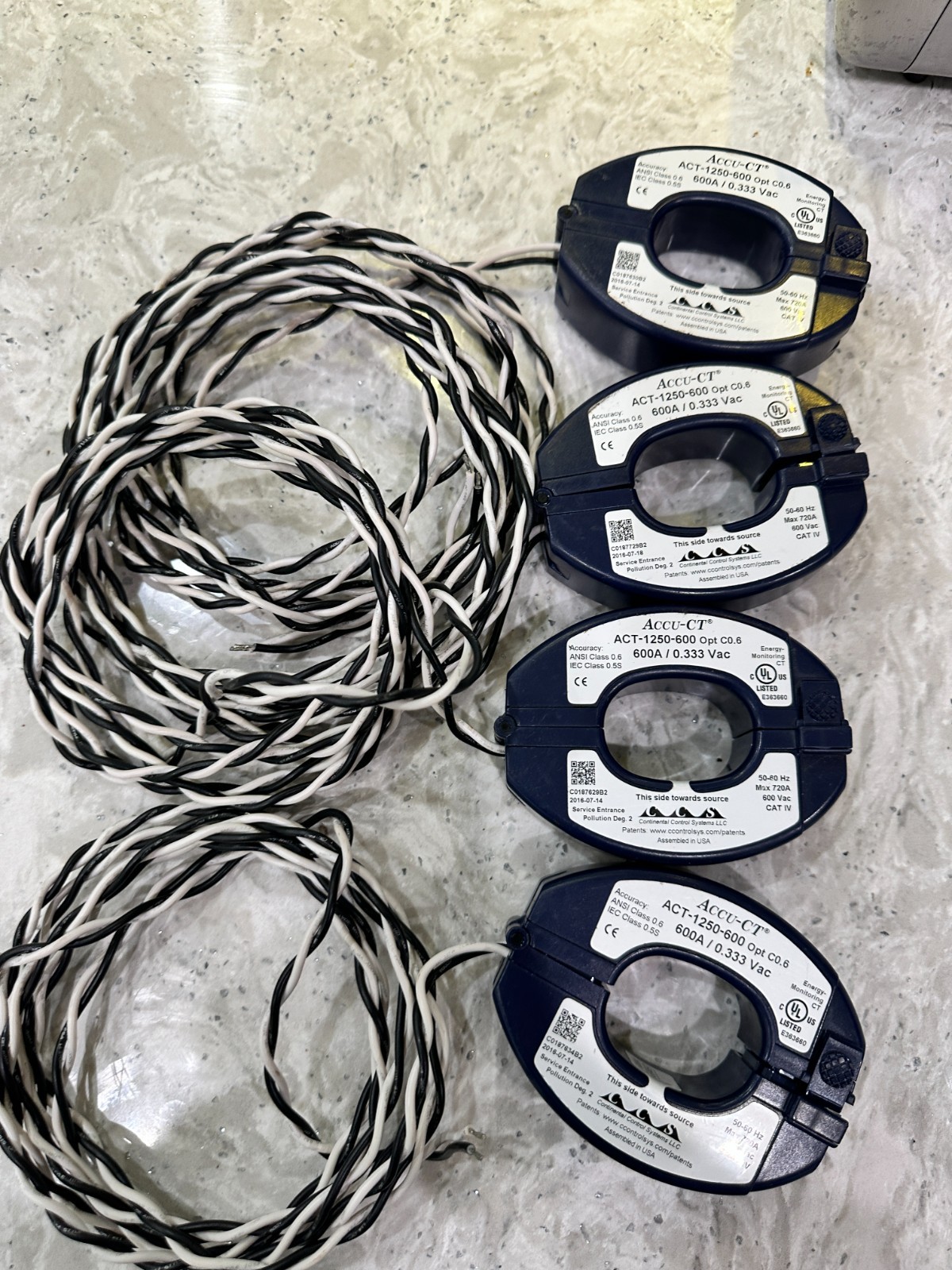

These are used units in very good overall condition and appear to have seen relatively light service. All four have been visually inspected. The housings, hinges, split-core surfaces and locking/latching mechanisms are intact with no cracks or other visible damage noted.

Each CT has approximately 8 feet of lead wire. The leads appear to be full/original length and retain terminated/tinned ends with no indication that they have been cut short or stripped back.

These 333mV-output CTs are intended for compatible energy monitoring, power metering and related current-measurement equipment designed for a 0.333 VAC CT input. They are not conventional 5A-secondary current transformers.

These units have been visually inspected but have not been independently electrically tested or calibrated by us. Calibration status is unknown.

Cosmetic signs of previous installation and handling may be present. Please review all photos carefully for actual condition.

Sale includes all four (4) ACT-1250-600 current transformers shown in the photos.
